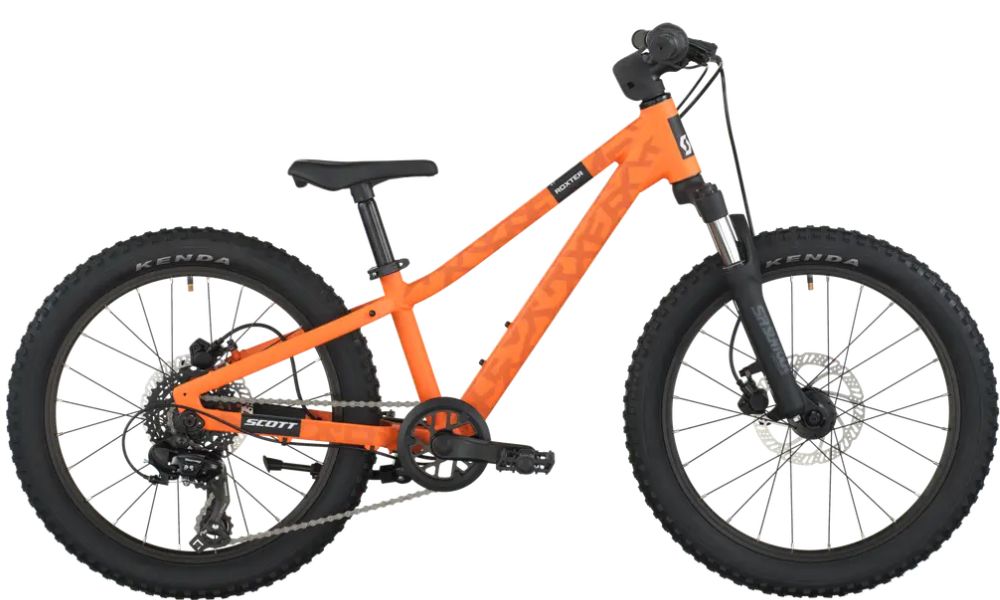

Scott Roxter 200
Designed for little rippers ready to hit the trails, this 20-inch bike is built for fun and confidence. With a durable frame and kid-friendly geometry, it makes riding easy—whether cruising the local trails, rolling over rocks, or catching little air on jumps. Ready to ride like a rockstar? This is your bike.
Key Features
- Kids from 115 cm
- 20" wheels
- 9.9 KG / 21.83 LBS
- Equipped with 7 gears
- The bike to rock the local forest
- Easy handling hydr disc brakes
- A suspension for more comfort
- Traction without limits
- bike size specific cockpit, easy handling with small diameter for maximum control
- Bigger cassette to easier climbs
Scott Roxter 200
Frame
Size: 20
Colour: Vibrant Orange
Frame: KIDS20 disc, Alloy 6061, custom tubing, semi int. CBR, BB68, SCOTT dropout, PM
Fork: SR Suntour XCT-JR 63mm travel Softer spring setup
Shock:
Drivetrain
Crankset: Prowheel, Alloy Crank 114mm 28T, w/CG PVG double cover
Pedals:
Chain: KMC Z7
Bottom Bracket: Feimin, BB68, cartridge, square taper
Rear Derailleur: Shimano RD-TY300 7 Speed
Front Derailleur:
Shifter: Shimano SL-RV300-7R Revo Shifter
Freewheel/Cassette: SunRace CSM40 7 Speed, 11-34T
Braking System
Brakes: Tektro HD-M276, Hydr. Disc 160F/160R rotor, short reach lever
Brake Levers: Tektro HD-M276
Wheels
Tyres: [F] and [R] Kenda K1237 Karma2, 20x2.2", 30TPI
Wheels/Rims: Alloy anodized black, disc
Hubs: [F] Formula 5x100mm, 24H, disc 6 bolt [R] Formula 5x135mm, 24H, disc 6 bolt
Other
Handlebar: LEADTEC Kids riser bar alloy D:19 540mm, 20mm Rise Syncros Grips Kids 100/80
Stem: LEADTEC Alloy 50mm, +10°, 25.4 clamp
Seat Post:
Saddle: Syncros KIDS III incl. Seatpost 27.2mm
Scott Roxter 200
| 20" | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 69.1 ° | |||||||||||||||||
| B | head tube length / hauteur tube de direction | 110.0 mm | |||||||||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 447.0 mm | |||||||||||||||||
| D | standover height / hauteur entre-jambes | 317.0 mm | |||||||||||||||||
| E | BB offset / deport axe de pédalier | -45.8 mm | |||||||||||||||||
| F | BB height / hauteur axe de pédalier | 222.7 mm | |||||||||||||||||
| G | wheel base / entraxe roues | 858.3 mm | |||||||||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 260.0 mm | |||||||||||||||||
| J | seat angle / angle tube de selle | 73.1 ° | |||||||||||||||||
| K | chainstay / longueur des bases | 352.0 mm | |||||||||||||||||
| L | reach / reach | 306.0 mm | |||||||||||||||||
| M | stack / stack | 464.9 mm | |||||||||||||||||
| N |
stem length / longueur potence |
||||||||||||||||||
