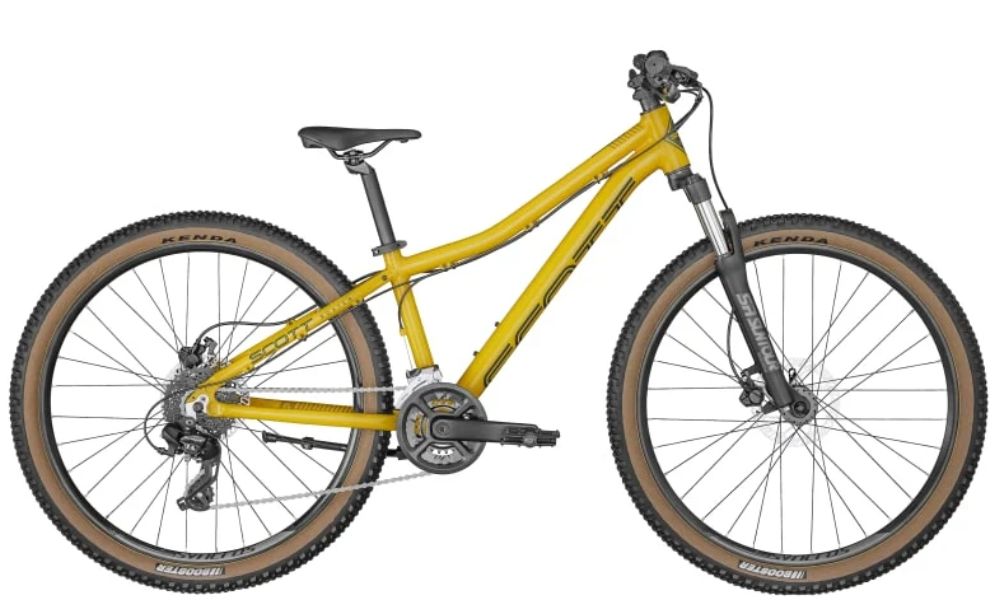

Scott Roxter 26 Disc
Riding to school or racing your buddies, the SCOTT Roxter 26 Disc is just the ticket. A suspension fork for the jumps, disc brakes and a trusty Shimano drivetrain make the Roxter all you need for all-day fun.
Scott Roxter 26 Disc
Frame
Size: 26
Colour: Yellow
Frame: JR26 Susp Disc Alloy 6061 / Performance geometry SCOTT dropout / IS
Fork: SR Suntour XCE28 100mm travel Softer spring setup
Shock:
Drivetrain
Crankset: Prowheel 36-22T w/CG
Pedals:
Chain: KMC Z8.3
Bottom Bracket: Feimin / BB68 / cartridge / square taper
Rear Derailleur: Shimano Tourney RD-TX800 16 Speed
Front Derailleur: Shimano FD-M315-TS / 34.9mm
Shifter: Shimano FD-M315-TS / 34.9mm
Freewheel/Cassette: SunRace CSM55 8AV / 11-34T
Braking System
Brakes: Tektro HD-M276 / Hydr. Disc 160F/160R rotor / short reach lever
Brake Levers: Tektro HD-M276
Wheels
Tyres: [F] and [R] Kenda K1227 Booster / 26x2.4" / 30TPI
Wheels/Rims: Syncros X-20 Disc / 32H / black
Hubs: [F] Formula DC-19-F / QR Disc [R] Formula DC-25-8-R / QR Disc
Other
Handlebar: HL MTB-AL-312BT / 640mm / black / 12mm rise Syncros Youth 115
Stem: HL TDS-C342 / 10° / 31.8 / Black
Seat Post: Alloy / 31.6mm / 350mm
Saddle:
Scott Roxter 26 Disc
| 26" | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle | 69.0 ° | |||||||||||||||||
| B | head tube length | 110.0 mm | |||||||||||||||||
| C | top tube horizontal | 540.0 mm | |||||||||||||||||
| D | standover height | 666.0 mm | |||||||||||||||||
| E | BB offset | -38.0 mm | |||||||||||||||||
| F | BB height | 308.0 mm | |||||||||||||||||
| G | wheel base | 1,038.0 mm | |||||||||||||||||
| H | BB center to toptube center | 285.0 mm | |||||||||||||||||
| I | BB center to top of seattube | 330.0 mm | |||||||||||||||||
| J | seat angle | 73.5 ° | |||||||||||||||||
| K | chainstay | 425.0 mm | |||||||||||||||||
| L | reach | 376.0 mm | |||||||||||||||||
| M | stack | 553.0 mm | |||||||||||||||||
| N | stem length |
45.0 mm |
|||||||||||||||||
