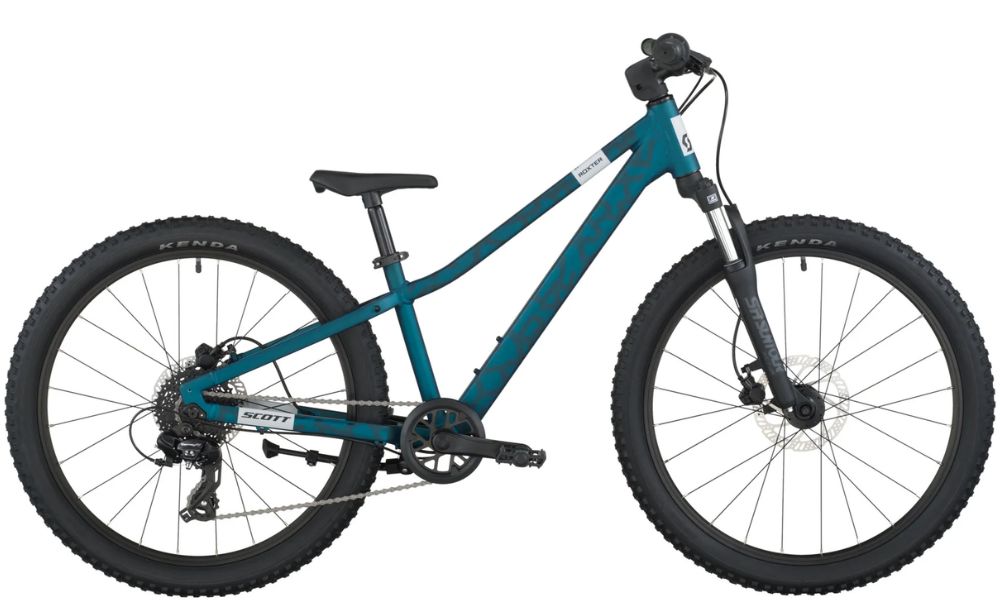

Scott Roxter 400
Built for young shredders who love to push their limits, this 24-inch trail bike is all about fun and performance. With a durable build and playful geometry, it’s made for ripping local trails, hitting jumps, and charging through rocky terrain with confidence. Ready to take your riding to the next level? This is your ride!
Scott Roxter 400
Frame
Size: 24
Colour: Loch Green
Frame: KIDS24 disc, Alloy 6061, custom tubing, semi int. CBR, BB68, SCOTT dropout, PM
Fork: SR Suntour XCT-JR 50mm travel Softer spring setup
Shock:
Drivetrain
Crankset: Prowheel, Alloy Crank 127mm 30T, w/CG PVG double cover
Pedals:
Chain: KMC Z8.3
Bottom Bracket: Feimin, BB68, cartridge, square taper
Rear Derailleur: Shimano RD-TX800 Tourney 8 Speed
Front Derailleur:
Shifter: Shimano SL-RV400-8R Revo Shifter
Freewheel/Cassette: SunRace CSM55 8 Speed, 11-34T
Braking System
Brakes: Tektro HD-M276, Hydr. Disc 160F/160R rotor, short reach lever
Brake Levers: Tektro HD-M276
Wheels
Tyres: [F] and [R] Kenda K1237 Karma2, 24x2.2", 30TPI
Wheels/Rims: Alloy anodized black, disc
Hubs: [F] Formula 5x100mm, 24H, disc 6 bolt [R] Formula 5x135mm, 24H, disc 6 bolt
Other
Handlebar: LEADTEC Kids riser bar alloy D:19 560mm, 20mm Rise Syncros Grips Kids 100/80
Stem: LEADTEC Alloy 50mm, +10°, 25.4 clamp
Seat Post:
Saddle: Syncros KIDS III incl. Seatpost 27.2mm
Scott Roxter 400
| 24" | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 69.4 ° | |||||||||||||||||
| B | head tube length / hauteur tube de direction | 120.0 mm | |||||||||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 514.2 mm | |||||||||||||||||
| D | standover height / hauteur entre-jambes | 350.0 mm | |||||||||||||||||
| E | BB offset / deport axe de pédalier | -52.6 mm | |||||||||||||||||
| F | BB height / hauteur axe de pédalier | 266.9 mm | |||||||||||||||||
| G | wheel base / entraxe roues | 983.0 mm | |||||||||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 310.0 mm | |||||||||||||||||
| J | seat angle / angle tube de selle | 73.9 ° | |||||||||||||||||
| K | chainstay / longueur des bases | 402.0 mm | |||||||||||||||||
| L | reach / reach | 357.6 mm | |||||||||||||||||
| M | stack / stack | 541.9 mm | |||||||||||||||||
| N | stem length / longueur potence | ||||||||||||||||||
