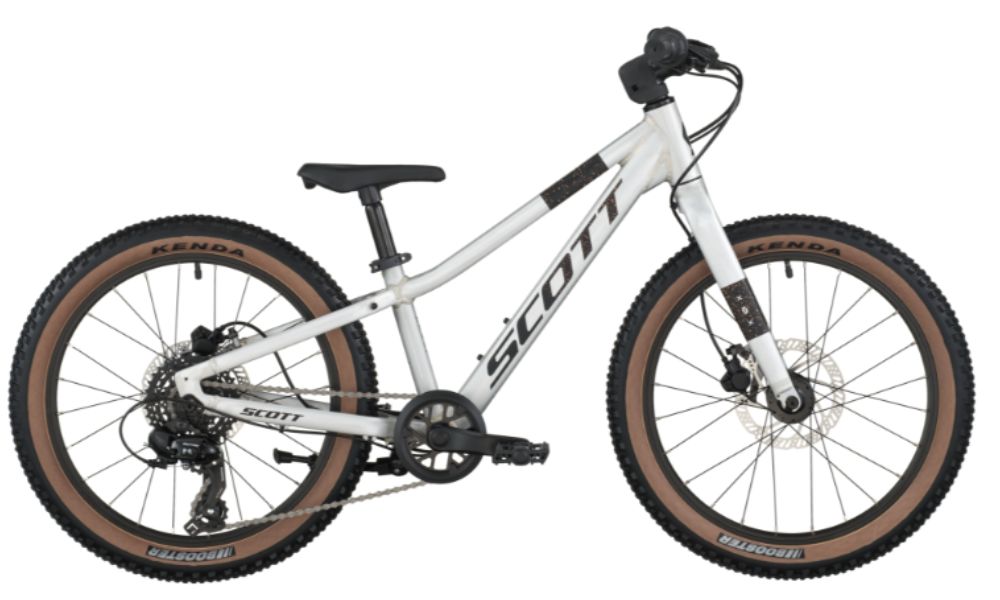

Scott Scale 200
Lightweight, durable, and designed for any terrain—the Scale 200 is the perfect 20-inch bike for young riders. Whether cruising through the city or hitting the trails, it delivers confidence, control, and a smooth ride especially for beginners.
Scott Scale 200
Frame
Size: 20
Colour: Alloy Silver
Frame: KIDS20 Disc, Alloy 6061, custom tubing, semi int. CBR, BB68, SCOTT dropout, PM
Fork: KIDS20 Disc, AL-6061 rigid fork, IS
Shock:
Drivetrain
Crankset: Prowheel, Alloy Crank, 28T, w/CG PVG double cover
Pedals:
Chain: KMC Z7
Bottom Bracket: Feimin, BB68, cartridge, square taper
Rear Derailleur: Shimano Tourney RD-TY300, 7 Speed
Front Derailleur:
Shifter: Shimano RevoShift SL-RV300 with Display
Freewheel/Cassette: Sunrace CSM40 7-Speed, 11-34T
Braking System
Brakes: Tektro hydraulic disc brake
Brake Levers: Tektro Kids' specific, adjustable reach
Wheels
Tyres: [F] and [R] Kenda Booster 20 x 2.2, 30TPI
Wheels/Rims: Alloy, 24H, 406-21, A/V, for disc brake
Hubs: [F] Formula DC-19, 24H, disc 6 bolt, 5x100mm, QR/allen key [R] Formula DC-27A, 24H, disc 6 bolt, 7s, 5x135mm, QR/allen key
Other
Handlebar: Leadtec Kids' riser bar alloy D:19, 20mm rise, 25.4mm clamp
Stem: Leadtec, Alloy, +10°, 25.4 clamp
Seat Post: Syncros KIDS III Incl. Seatpost 27.2mm, 250mm
Saddle: Syncros KIDS III Incl. Seatpost 27.2mm, 250mm
Scott Scale 200
| 20" | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 69.1 ° | |||||||||||||||||
| B | head tube length / hauteur tube de direction | 110.0 mm | |||||||||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 447.0 mm | |||||||||||||||||
| D | standover height / hauteur entre-jambes | 317.0 mm | |||||||||||||||||
| E | BB offset / deport axe de pédalier | -45.8 mm | |||||||||||||||||
| F | BB height / hauteur axe de pédalier | 222.7 mm | |||||||||||||||||
| G | wheel base / entraxe roues | 858.3 mm | |||||||||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 260.0 mm | |||||||||||||||||
| J | seat angle / angle tube de selle | 73.1 ° | |||||||||||||||||
| K | chainstay / longueur des bases | 352.0 mm | |||||||||||||||||
| L | reach / reach | 306.0 mm | |||||||||||||||||
| M | stack / stack | 464.9 mm | |||||||||||||||||
| N | stem length / longueur potence | ||||||||||||||||||
