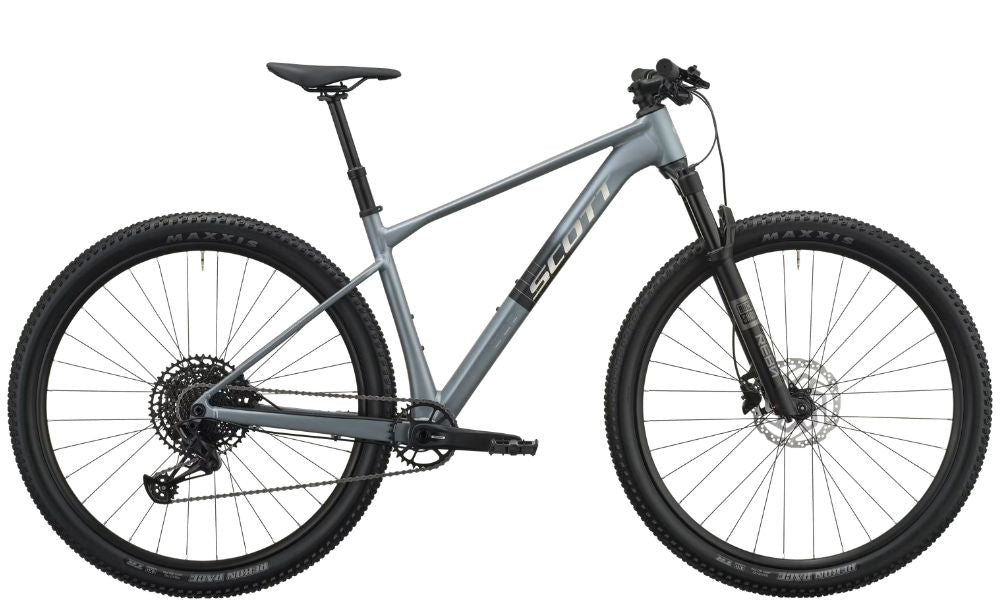

Scott Scale 40
Balancing the Scale’s DNA , we’ve created a whole new breed in the world of hardtail mountain bikes. A racing inspired geometry, coupled with a straightforward and sharp design provides the Scale 900 line with its distinctive character and aggressive look - a bike that proudly flaunts its definitive characteristics. This rig is ready for just about anything, are you?
Scott Scale 40
Frame
Size: S, M, L and XL
Colour: Flint Grey
Frame: Scale made from Low Impact Alloy, Tapered Headtube, BB92, UDH interface, Boost 12x148mm with 55mm chainline
Fork: RockShox Reba RL Air, 15x110mm axle, tapered steerer, Reb. Adj., Lockout
Shock:
Drivetrain
Crankset: SRAM Eagle S200 Transmission, DUB, 55mm CL, 32T
Pedals:
Chain: SRAM Eagle S100
Bottom Bracket: SRAM DUB PF 92 MTB Wide, shell 41x92mm
Rear Derailleur: SRAM Eagle S100 Half-Mount, 12 Speed
Front Derailleur:
Derailleur Shifter: SRAM Eagle S100 Trigger
Freewheel/Cassette: SRAM PG1210, 11-50T
Braking System
Brakes: Shimano BR-MT200 2-Piston
Brake Levers:
Wheels
Tyres: Maxxis Rekon Race 29x2.4", 60TPI, Tubeless Ready, EXO
Wheels/Rims: Alex Rims X25 Disc 32H, Tubeless ready
Hubs: [F] Formula CL-811, 15x110mm [R] Formula CL-3248, 12x148mm
Other
Handlebar: Syncros Alloy 6061, T shape Flat, 9°, 740mm
Stem: Syncros Alloy 6061, oversized 31.8mm, 1 1/8", 6° angle
Seat Post: Syncros Dropper Post SP-M302-AL2, 31.6mm
Saddle: Syncros Belcarra R 2.5
Scott Scale 40
| XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
|
A head tube angle |
||||||
|
B head tube length |
||||||
|
C top tube horizontal |
||||||
|
D standover height |
||||||
|
E BB offset |
||||||
|
F BB height |
||||||
|
G wheel base |
||||||
|
H BB center to toptube center |
||||||
|
I BB center to top of seattube |
||||||
|
J seat angle |
||||||
|
K chainstay |
||||||
|
L reach |
||||||
|
M stack |
||||||
|
N stem length |
||||||
|
P fork length |
||||||
|
Q Maximum Seatpost Insertion |
||||||
|
R #ERROR! |
