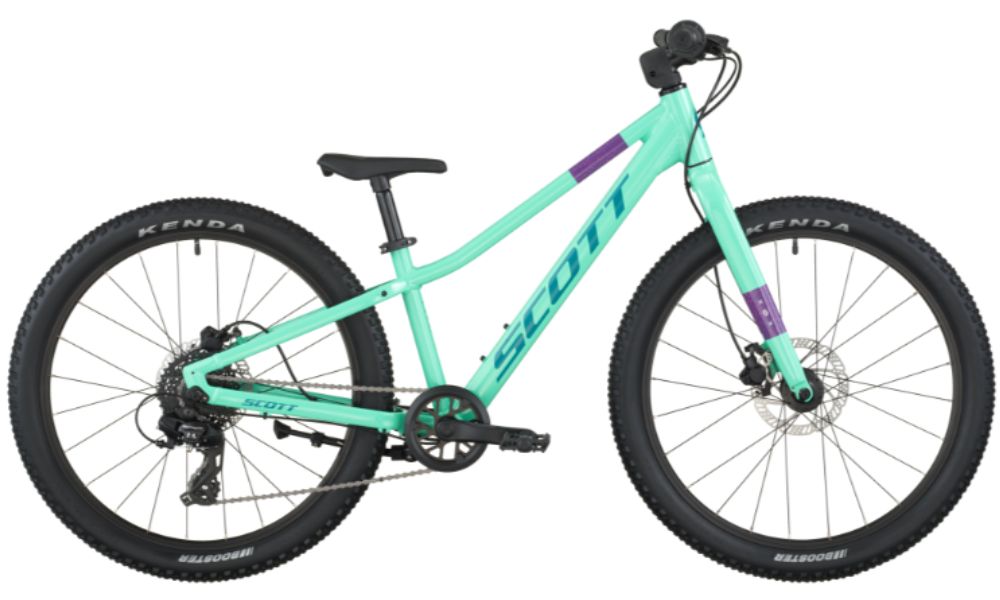

Scott Scale 400
The Scale 400 is the ultimate 24-inch all-rounder for young riders, combining versatility, durability, and ease of handling. Whether it’s daily rides or off-road explorations, this bike is built to ride—perfect for both beginners and more experienced pilots.
Scott Scale 400
Frame
Size: 24
Colour: Spring Green
Frame: KIDS24 disc, Alloy 6061, custom tubing, semi int. CBR, BB68, SCOTT dropout, PM
Fork: KIDS24 Disc, AL-6061 rigid fork, IS
Shock:
Drivetrain
Crankset: Prowheel, Alloy Crank, 30T, w/CG PVG double cover
Pedals:
Chain: KMC Z8
Bottom Bracket: Feimin, BB68, cartridge, square taper
Rear Derailleur: Shimano Tourney RD-TX800, 8 Speed
Front Derailleur:
Shifter: Shimano RevoShift SL-RV400 with Display
Freewheel/Cassette: Sunrace CSM55 8-Speed, 11-34T
Braking System
Brakes: Tektro hydraulic disc brake
Brake Levers: Tektro Kids' specific, adjustable reach
Wheels
Tyres: [F] and [R] Kenda Booster 24 x 2.2, 30TPI
Wheels/Rims: Alloy, 24H, 507-21, A/V, for disc brake
Hubs: [F] Formula DC-19, 24H, disc 6 bolt, 5x100mm, QR/allen key [R] Formula DC-25, 24H, disc 6 bolt, 8s, 5x135mm, QR/allen key
Other
Handlebar: Leadtec Kids' riser bar alloy D:19, 20mm rise, 25.4mm clamp
Stem: Leadtec, Alloy, +10°, 25.4 clamp
Seat Post: Syncros KIDS III Incl. Seatpost 27.2mm, 300mm
Saddle: Syncros KIDS III Incl. Seatpost 27.2mm, 300mm
Scott Scale 400
| 24" | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 69.4 ° | |||||||||||||||||
| B | head tube length / hauteur tube de direction | 120.0 mm | |||||||||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 514.2 mm | |||||||||||||||||
| D | standover height / hauteur entre-jambes | 350.0 mm | |||||||||||||||||
| E | BB offset / deport axe de pédalier | -52.6 mm | |||||||||||||||||
| F | BB height / hauteur axe de pédalier | 266.9 mm | |||||||||||||||||
| G | wheel base / entraxe roues | 983.0 mm | |||||||||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 310.0 mm | |||||||||||||||||
| J | seat angle / angle tube de selle | 73.9 ° | |||||||||||||||||
| K | chainstay / longueur des bases | 402.0 mm | |||||||||||||||||
| L | reach / reach | 357.6 mm | |||||||||||||||||
| M | stack / stack | 541.9 mm | |||||||||||||||||
| N | stem length / longueur potence | ||||||||||||||||||
