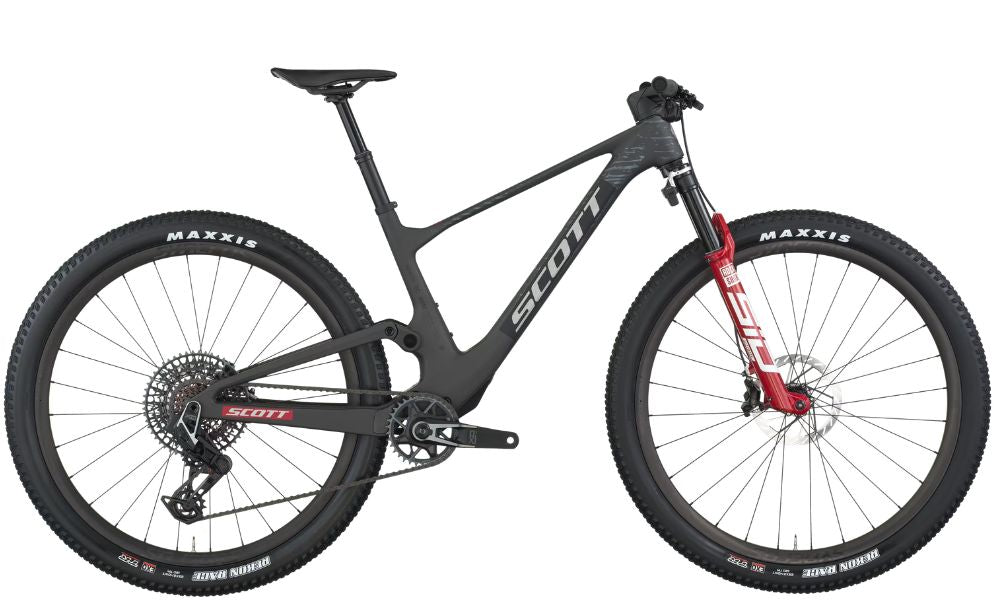

Scott Spark RC World Cup
The Spark RC World Cup is the perfect blend of top-notch carbon engineering, never before seen levels of integration and just the right amount of secret sauce. We wanted to make this platform faster than ever before both up and down the hill. Increasing travel, perfecting geometry, and applying input from the world's best athletes, we've created the cross country race bike of all cross country race bikes. If you think fast is fun, then you're going to love this ride.
Scott Spark Rc World Cup
Frame
Size: S,M, L and XL
Colour: Carbon Black
Frame: Spark RC Carbon HMF, Integrated Suspension Technology, Flex Pivot, Adjustable head angle, Syncros Cable Integration System, BB92, UDH Interface, 12x148mm with 55mm Chainline
Fork: RockShox SID Ultimate Flight Attendant, Electronically controlled Suspension, FA Race Day damper 3 Modes, 15x110mm Maxle Stealth, 44mm offset /Tapered steerer, Lockout, Reb. Adj., 120mm travel
Shock: RockShox SIDLuxe Ultimate Flight Attendant Custom, Electronically controlled Suspension, 3 Modes Lockout-Pedal-Descend, Solo Air, Reb. Adj./ Lockout, Bearing Hardware, Travel 120mm, T165X45mm
Drivetrain
Crankset: SRAM X0 Eagle Transmission, Spindle Power Meter, DUB, 55mm CL, 34T
Pedals:
Chain: SRAM CN X0 Eagle Transmission
Bottom Bracket: SRAM DUB PF 92 MTB Wide, shell 41x92mm
Rear Derailleur: SRAM X0 Eagle AXS Transmission 12 Speed
Front Derailleur:
Derailleur Shifter: SRAM AXS Rocker Pod Controller
Freewheel/Cassette: SRAM X0 Eagle XS 1295 Transmission 10-52
Braking System
Brakes: SRAM Motive Silver 4-Piston Disc
Brake Levers:
Wheels
Tyres: Maxxis Rekon Race, 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO
Wheels/Rims: Syncros Silverton 1.0-30 CL F: 15x110mm, R: 12x148mm, 30mm Tubeless ready Carbon rim 28H, Syncros Hubs, XD Driver, Syncros SL Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools
Hubs: [F] [R]
Other
Handlebar: Syncros Fraser iC SL XC Carbon, -12° rise, back sweep 8°, 740mm, Syncros Performance XC lock-on grips
Stem:
Seat Post: Syncros Duncan Dropper 1.5XC, 31.6mm, all sizes 100mm
Saddle: Syncros Belcarra V1.0 Cut Out, Carbon rails
Scott Spark RC World Cup
| S | M | L | XL | |
|---|---|---|---|---|
|
A head tube angle |
||||
|
B head tube length |
||||
|
C top tube horizontal |
||||
|
D standover height |
||||
|
E BB offset |
||||
|
F BB height |
||||
|
G wheel base |
||||
|
H BB center to toptube center |
||||
|
I BB center to top of seattube |
||||
|
J seat angle |
||||
|
K chainstay |
||||
|
L reach |
||||
|
M stack |
||||
|
N stem length |
||||
|
P fork length |
||||
|
Q Maximum Seatpost Insertion |
||||
|
R Crank Length |
