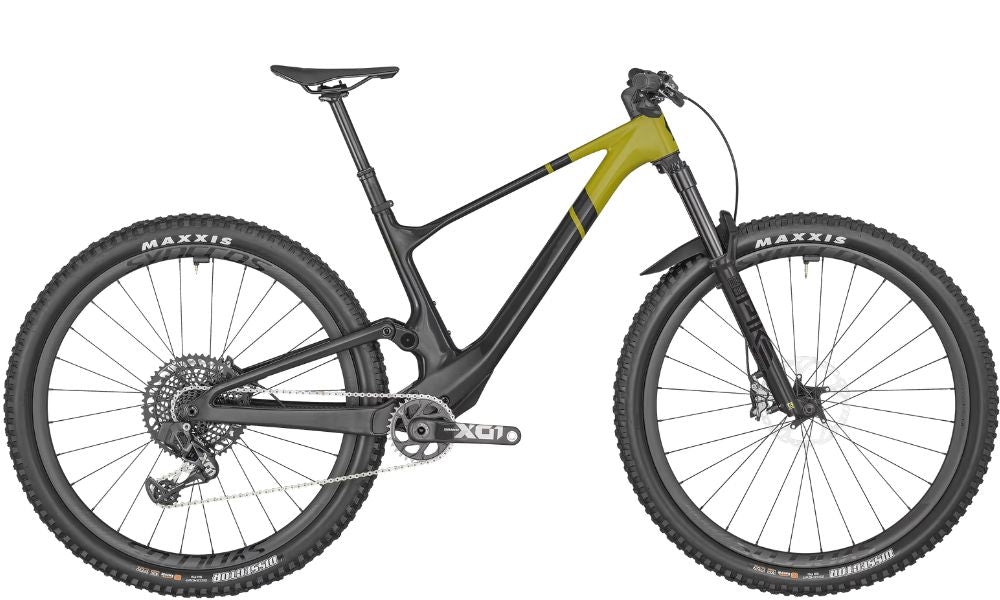

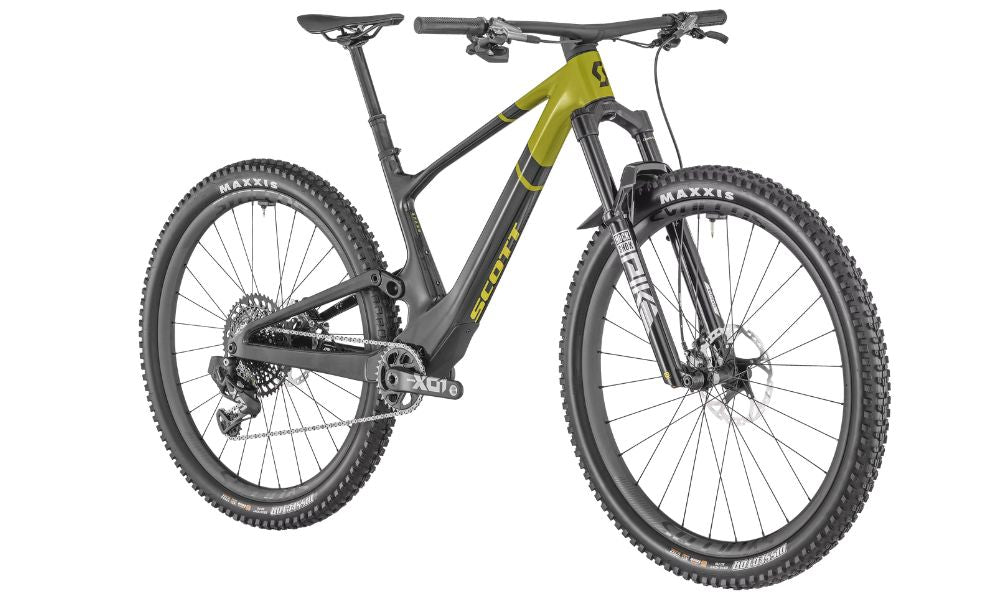

Scott Spark ST 900

$12,999.99

Size

Some products are available in multiple variants, and not all variants have images. Please make sure you’ve selected the correct option for each product before proceeding to checkout.

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications
Geometry

Description

Scott Spark ST 900

Our Spark ST line of bikes takes a classic Spark 900 vibe and adds suspension components for those aiming to spend a bit more time losing elevation. Now with a custom Float x NUDE from FOX, this short travel trail bike is as capable as ever.

Specifications

Scott Spark ST 900

Frame

Size: S,M, L and XL
Colour: Black/Green
Frame: Spark ST Carbon HMF
Fork: RockShox Pike Ultimate Air
Shock: FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion

Drivetrain

Crankset: SRAM X01 DUB Eagle Carbon crankarm
Pedals:
Chain: SRAM CN X01 Eagle
Bottom Bracket: SRAM DUB PF 92 MTB Wide / shell 41x92mm
Rear Derailleur: SRAM X01 Eagle AXS / 12 Speed
Front Derailleur:
Derailleur Shifter: SRAM GX Eagle AXS Rocker Controller
Freewheel/Cassette: SRAM X01 XG1295 / 10-52 T

Braking System

Brakes: Shimano XTR M9120 4 Piston Disc
Brake Levers:

Wheels

Tyres: Maxxis Dissector / 2.4WT" / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra
Wheels/Rims: Syncros Silverton 1.0-30 6 Bolt, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready Carbon rim 28H, DT Swiss Ratchet Hubs / XD Driver, SRAM TyreWiz / Syncros SL Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools
Hubs: [F] [R]

Other

Handlebar: Syncros Fraser iC SL DC Carbon, 0° rise / back sweep 8° / mini Rise / 780mm, Syncros Endurance lock-on grips
Stem:
Seat Post: Syncros Duncan Dropper Post 1.5, 31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm
Saddle: Syncros Tofino 1.5 Regular

Geometry

Scott Spark ST 900

	S	M	L	XL
A head tube angle (+0.6° Headset Setting)	65.4 mm	65.4 mm	65.4 mm	65.4 mm
B head tube length	90.0 mm	90.0 mm	105.0 mm	115.0 mm
C top tube horizontal	564.3 mm	592.0 mm	616.0 mm	643.1 mm
D standover height	756.0 mm	764.0 mm	774.0 mm	798.0 mm
E BB offset	-40.4 mm	-40.6 mm	-40.7 mm	-40.9 mm
F BB height	334.6 mm	334.4 mm	334.3 mm	334.1 mm
G wheel base	1150.1 mm	1180.1 mm	1212.5 mm	1244.1 mm
H BB center to toptube center	-	-	-	-
I BB center to top of seattube	415.0 mm	440.0 mm	490.0 mm	540.0 mm
J seat angle	75.2 mm	75.5 mm	76.0 mm	76.2 mm
K chainstay	438.1 mm	438.1 mm	438.1 mm	438.1 mm
L reach	404.5 mm	434.7 mm	461.2 mm	488.8 mm
M stack	606.6 mm	606.8 mm	620.8 mm	630.1 mm
N stem length	40.0 mm	50.0 mm	60.0 mm	70.0 mm
P fork length	550.0 mm	550.0 mm	550.0 mm	550.0 mm
Q Maximum Seatpost Insertion	150.0 mm	175.0 mm	225.0 mm	275.0 mm
R Crank Length	170.0 mm	175.0 mm	175.0 mm	175.0 mm

Size Chart for Scott Spark ST 900 Tuned Bike
