Scott Sub Cross 40 Lady

$1,349.99

Size

Quantity

Some products are available in multiple variants, and not all variants have images. Please make sure you’ve selected the correct option for each product before proceeding to checkout.

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications
Geometry

Description

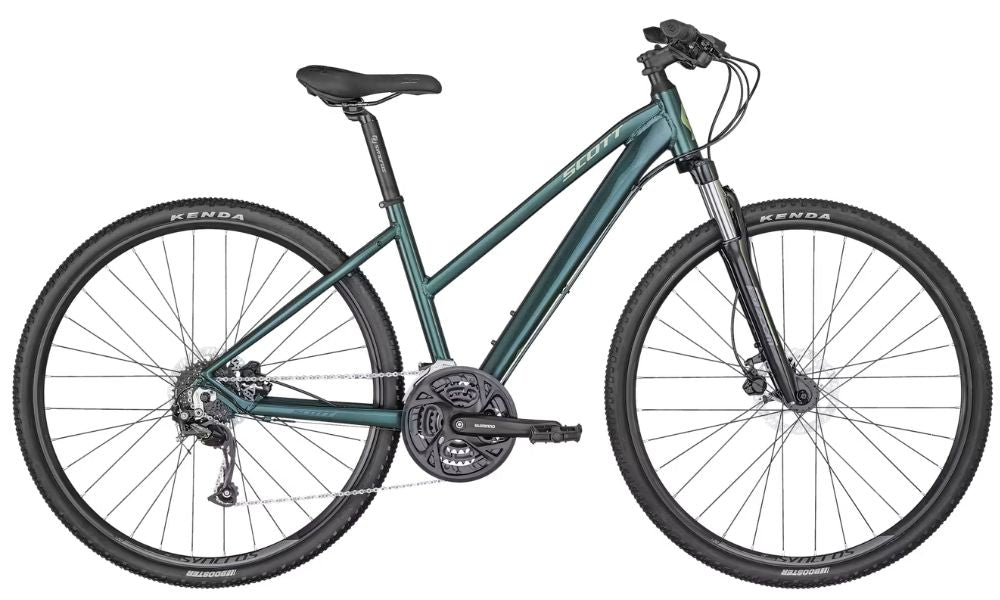

Scott Sub Cross 40 Lady

The SCOTT SUB Cross 40 emphasizes comfort and convenience for touring and transportation. The SUB Cross is set up perfectly for your excursions.

Specifications

Scott 2027 Sub Cross 40 Lady

Frame

Size: S, M, and L
Colour: Green
Frame: Sub Cross Alloy 6061 / Custom butted tubing / Sub Cross Men/Lady geometry / SCOTT urban kit ready
Fork: Zoom 187 D / 63mm travel
Shock:

Drivetrain

Crankset: Shimano FC-M371-L / 48x36x26 / w/CG
Pedals:
Chain: KMC X9
Bottom Bracket: Feimin FP-B908N / Cartridge Type
Rear Derailleur: Shimano Altus RD-M2000 / 27 Speed
Front Derailleur: Shimano FD-M370 / 34.9mm
Derailleur Shifter: Shimano SL-M2010-9 / R-fire plus / w/gear indicator
Freewheel/Cassette: Shimano CS-HG200-9

Braking System

Brakes: Tektro HDM275 Hydr. Disc
Brake Levers:

Wheels

Tyres: Kenda Booster / 700x45C / 30 TPI
Wheels/Rims: Syncros X-20 Disc / 32H / black
Hubs: [F] Formula DC-19 FQR Disc [R] Formula DC-25 RQR Disc

Other

Handlebar: Syncros 3.0 / 31.8 / Men: Tbar/660mm/9° bend / Lady: 660mm/15° bend
Stem: Syncros 3.0 / 7° / Black
Seat Post: Syncros 3.0 / 31.6mm / 350mm / Black
Saddle: Syncros UC3.0 / UC3.0W

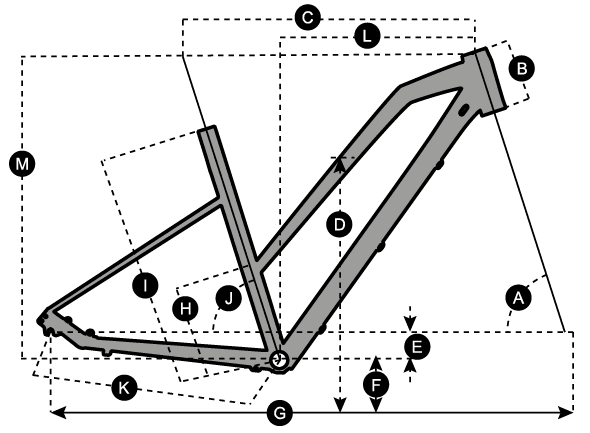

Geometry

Scott Sub Cross 40 Lady

	S	M	L	XL
A head tube angle	70.0 mm	70.0 mm	70.0 mm	70.0 mm
B head tube length	115.0 mm	130.0 mm	155.0 mm	180.0 mm
C top tube horizontal	550.0 mm	565.0 mm	575.0 mm	590.0 mm
D standover height	679.5 mm	684.1 mm	695.8 mm	702.6 mm
E BB offset	56.0 mm	56.0 mm	56.0 mm	56.0 mm
F BB height	406.0 mm	406.0 mm	406.0 mm	406.0 mm
G wheel base	1067.0 mm	1078.0 mm	1083.0 mm	1099.0 mm
H BB center to toptube center	-	-	-	-
I BB center to top of seattube	420.0 mm	460.0 mm	500.0 mm	540.0 mm
J seat angle	73.5 mm	73.0 mm	72.3 mm	72.0 mm
K chainstay	456.0 mm	456.0 mm	456.0 mm	456.0 mm
L reach	374.0 mm	379.0 mm	375.9 mm	383.5 mm
M stack	-	-	-	-
N stem length	70.0 mm	80.0 mm	90.0 mm	100.0 mm

Size Chart for Scott Sub Cross 40 Lady Bike
