    BR-4700

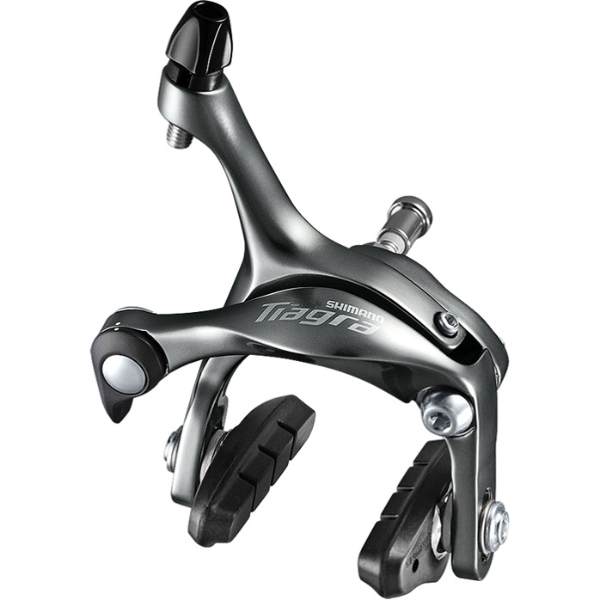

    SHIMANO TIAGRA - NEW SUPER SLR - Dual-Pivot Brake Caliper - Rim Brake

    The SHIMANO TIAGRA Dual-Pivot brake caliper provides consistent all-around control. Compatible with 28mm tires, the caliper uses a thrust bearing pivot to reduce friction while new, toe-in adjustable brake shoes improve braking.

    • Consistent all-around control
    • 30% greater braking power modulation with Linear brake operation
    • One thrust bearing of pivot reduces caliper friction
    • New material adjustable toe-in brake shoes R50T5
    • Better performance with Alloy rim under wet condition
    • Toe-in adjustable brake shoes
    • Compatible with 28C tires
    MODEL NO BR-4700
    SERIES TIAGRA 4700 Series
    Color Series color
    Brake type NEW SUPER SLR Dual pivot
    Reach (mm) 51
    Brake shoe_Standard R50T5
    Brake shoe_Optional choice R50T4
    Compatibility NEW SUPER SLR
    Assembly pivot nut (mm)_Front 10.5
    Assembly pivot nut (mm)_Front 12.5
    Assembly pivot nut (mm)_Front 18.0
    Assembly pivot nut (mm)_Front 27.0
    Assembly pivot nut (mm)_Front 32.0
    Assembly pivot nut (mm)_Rear 10.5
    QR
    Toe-in adjust
    Maximum tire size 28C
    Rim width 19 - 26 mm
    *Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

    *Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

    *Specialized Bicycles are available for home delivery nation wide.

    Related Products

    View more
    Campagnolo Chorus MY20 brake 2
    $183.46
    TEKTRO - MTB V-Brake Caliper (857AL)
    $34.90

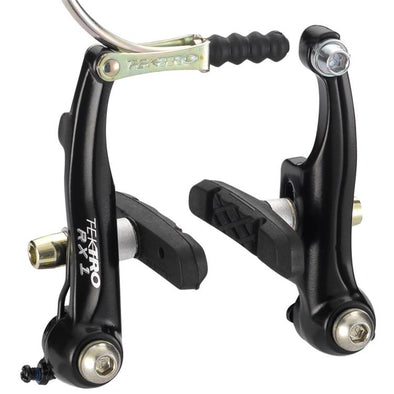

    TEKTRO - Mini-V Brake Caliper (RX1)
