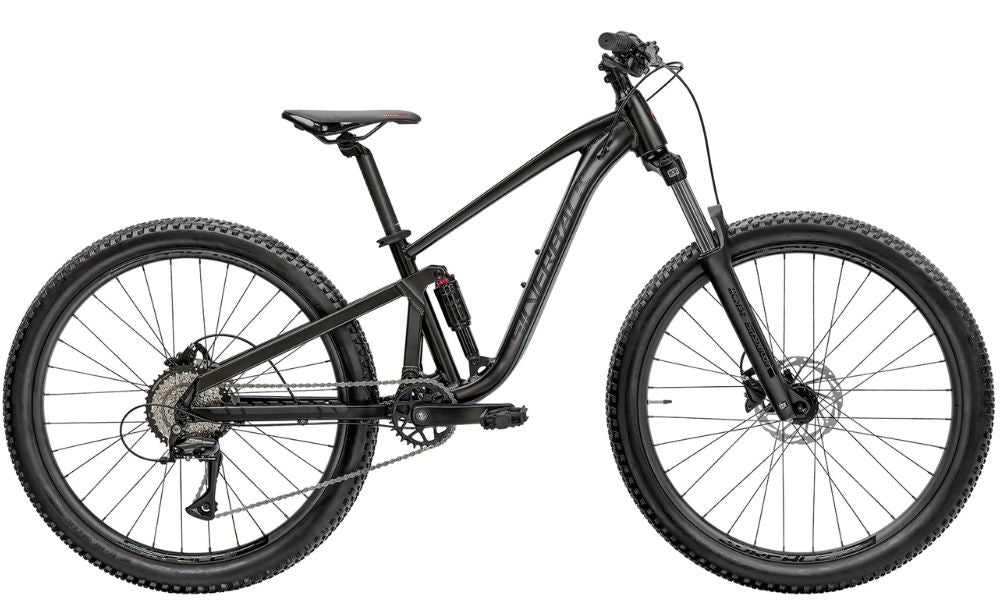

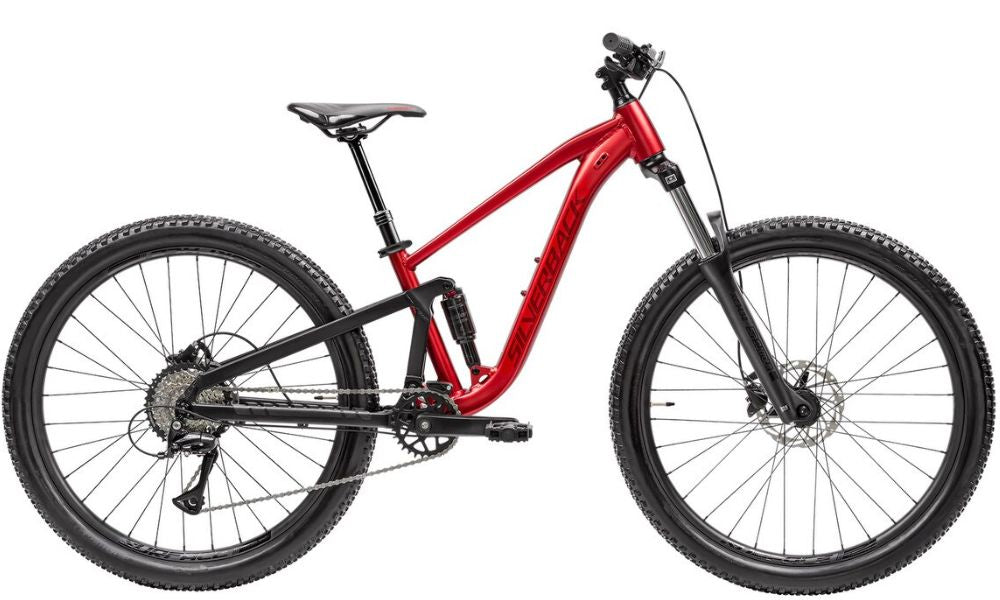

Silverback 2025 SE Series Trail 26
The SE Trail 26D is here to change the game for young riders who are ready to step up their skills. Designed with kid-specific geometry and trail-ready suspension, this bike delivers the confidence, control, and performance of a full-sized trail machine—scaled perfectly for tomorrow’s shredders. With 120mm of full-suspension travel and the versatility to handle everything from after-school trail sessions to weekend adventures, the Trail 26D is where future pros begin.
Silverback 2025 SE Series Trail 26
Frame
Size: 26
Colour: Stealth Black
Frame: Alloy Trail Frame for 26" wheels. True single pivot design, 120mm Rear Travel with 170x35mm Shock. 20x10mm hardware. BSA Bottom Bracket. OLD 142mm.
Fork: SR Suntour XCM32, w/custom soft spring for youth, 32mm stanchoins, 1.5" tapered steerer, 27.5", 120mm Travel, 2 Position of Compression and Low Speed Rebound
Shock: RS25-Raidon R, 170x35mm, 20x10mm hardware
Drivetrain
Crankset: Surface alloy, 152mm Alloy Crank with 30T Narrow Wide Steel ring
Pedals:
Chain: KMC Z8.3
Bottom Bracket:
Rear Derailleur: Shimano RD-M3020 Acera, 7/8 Speed
Front Derailleur:
Shifter: L: NIL R: Shimano SL-M315-8R, 8-Speed Right Shift Lever
Freewheel/Cassette: Shimano CS-HG400 Acera 8-Speed, 11-40T
Braking System
Brakes: Shimano MT200 2-piston Hydraulic Disc, Resin Pads
Brake Levers:
Wheels
Tyres: [F] and [R] Shimano MT200 2-piston Hydraulic Disc, Resin Pads
Wheels/Rims: Shimano MT200 2-piston Hydraulic Disc, Resin Pads
Hubs: [F] Shimano MT200 2-piston Hydraulic Disc, Resin Pads [R] Joytech, 6-bolt disc, 32H, Thru-axle, OLD: 12x142mm, 8~11-speed
Other
Handlebar: Surface Alloy, Dia: Ø31.8mm, 9° Back sweep, 20mm Rise, 640mm width
Stem: Surface Alloy, Barbore: Ø31.8mm, Extension: 45mm, Rise 3°
Seat Post: Surface, alloy, Ø30.9mm
Saddle:
Silverback 2025 SE Series Trail 26
| p | type(mm unless specified) | S |
|---|---|---|
| Rider height(cm) | 143-156 | |
| Rider inseam(cm) | 65-70 | |
| A | Seat tube c/t | 320 |
| B | Seat tube angle | 76° |
| C | Head tube angle | 66° |
| D | Top Tube | 507 |
| E | Reach | 370 |
| F | Chainstay length | 425 |
| G | bb height | 330 |
| H | head tube length | 100 |
| I | stack | 556 |
| J | standover | 697 |
| K | Wheelbase | 1084 |
