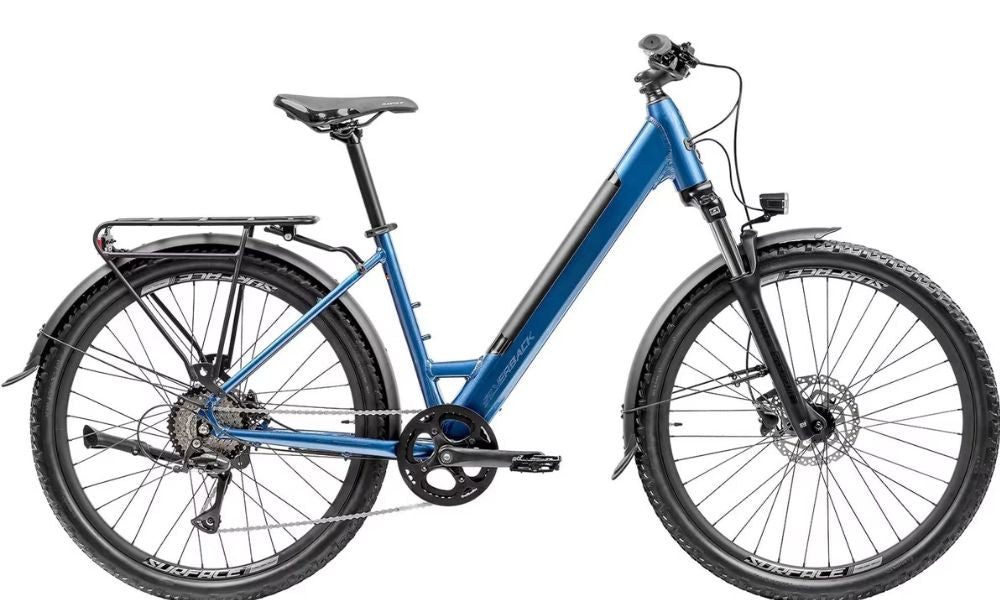

Silverback 2026 S-ELECTRO Step 50 T8
E-BIKE DAILY COMMUTER & WEEKEND ADVENTURER
The S-Electro Step Series 50 is built to make every ride smooth, practical and enjoyable. Its powerful 250W hub motor delivers 50Nm of torque, paired with a removable 504Wh battery for dependable range and convenient charging.
The step-through frame makes getting on and off effortless, while the intuitive handlebar-mounted LCD control keeps key information and riding modes at your fingertips. Monitor speed, distance and battery levels, and switch assistance modes easily while riding.
With a full Shimano drivetrain for smooth, reliable shifting and Shimano hydraulic disc brakes for confident stopping power, the S-Electro Step Series 50 is equally at home on the daily commute or heading out for a weekend adventure.
Silverback 2026 S-ELECTRO Step 50 T8
Frame
Size: SM, MD
Colour: Deep Passion Blue
Frame: New Frame, Updated Geometry and Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, dropper post compatible, 142mm x 10mm QR axle dropouts
Fork: SR Suntour XCM32 ATB Coil, 27.5"x2.4", 100mm Travel
Shock:
Drivetrain
Crankset: Alloy, 42T, 170mm; Chainring Spider, 42T
Pedals:
Chain: KMC Z8.3 Chain, 118 Links
Bottom Bracket:
Rear Derailleur: Shimano RD-TX800 Tourney Rear Derailleur, 7/8-Speed, Black
Front Derailleur:
Derailleur Shifter: Shimano SL-M315-8R Altus Shift Lever, 8-speed
Freewheel/Cassette: Shimano CS-HG31 Altus Cassette, 11-34T
Braking System
Brakes: Shimano BL-MT200, Hydraulic Disc
Brake Levers:
Wheels
Tyres: CST 1879 27.5 x 2.1"
Wheels/Rims: SURFACE 27.5" Symmetrical Alloy Rim, Tubeless Ready
Hubs: [F] Shimano HB-QB400 Front Hub, QR, 32H, 100mm OLD, Disc 6-Bolt, Black [R] Rear-Hub Motor
Other
Handlebar: Alloy Handlebar, Dia: 31,8mm, 9° Backsweep, 12mm Rise
Stem: Alloy Forged Stem, 60mm extension, Ř31.8mm, Rise 17°
Seat Post: Alloy, 30.9mm, Black Seat Post
Saddle: Surface E-bike saddle
E-Bike
Drive Unit: Ananda 250W, 50N.m, 25Km/h Rear-hub Motor
Battery: 504Wh In-Tube Battery, 2,56Kg. Utilising the highest energy dense LG 18650 cell available to date
Display: Display and Remote Control
UI/Remote: Display and Remote Control
Charger:
Silverback 2026 S-ELECTRO Step 50 T8
| map | type(mm unless specified) | S | M | L | XL |
|---|---|---|---|---|---|
| Rider height(cm) | 154-170 | 170-180 | 178-190 | 185-210 | |
| Rider inseam(cm) | 70-77 | 77-82 | 81-86 | 84-95 | |
| A | Seat tube c/t | 415 | 450 | 500 | 540 |
| B | Seat tube angle | 73° | 73° | 73° | 73° |
| C | Head tube angle | 68.5° | 68.5° | 68.5° | 68.5° |
| D | Top Tube | 595 | 604 | 625 | 646 |
| E | Reach | 395 | 400 | 415 | 430 |
| F | Chainstay length | 460 | 460 | 460 | 460 |
| G | bb height | 294 | 294 | 294 | 294 |
| H | head tube length | 155 | 170 | 190 | 210 |
| I | stack | 654 | 668 | 686 | 705 |
| J | standover | 505 | 505 | 505 | 505 |
| K | Wheelbase | 1135 | 1145 | 1168 | 1190 |
