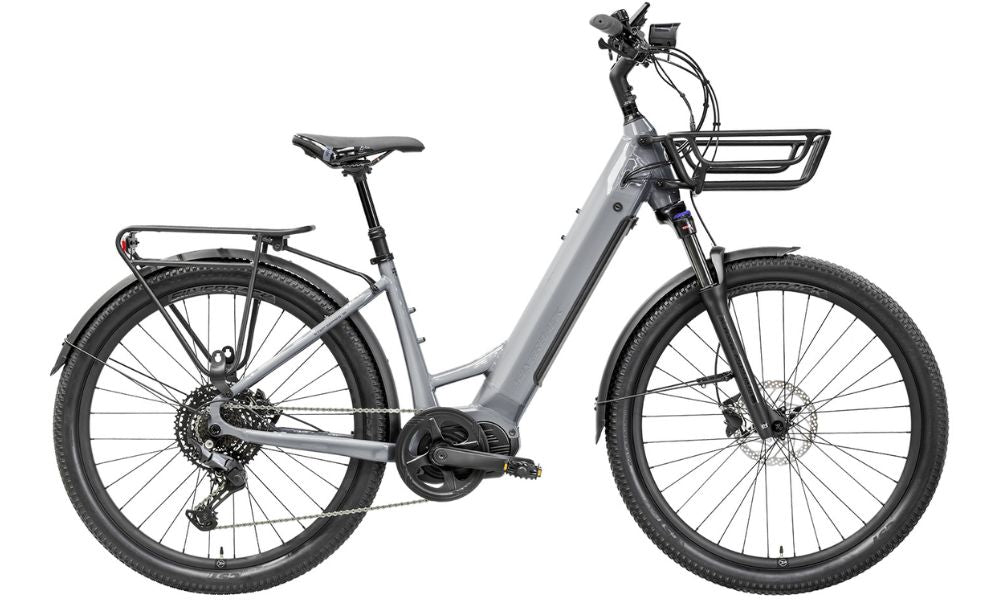

Silverback 2026 S-Electro 120
HIGH-SPEED COMMUTER E-BIKE.
S‑Electro Step Series 120 is built around a powerful 120Nm, 300W mid‑motor capable of providing pedal assist up to 45km/h where regulations allow. Its removable 705Wh battery delivers up to 100km of supported riding, giving you the range for daily commutes and longer weekend journeys. The step‑through frame design makes getting on and off the bike effortless, while the on‑bar smart LCD display keeps key information—speed, distance, battery level—clear and accessible. Mode changes are intuitive thanks to easy‑reach control buttons. A Shimano drivetrain ensures smooth, efficient shifting, and Shimano hydraulic disc brakes provide confident stopping power in all conditions.
- 6061 Hydro-formed alloy step-thru hardtail e-bike frame
- SR Suntour XCM32, 100mm, Coil suspension fork
- Ananda 300W mid-motor, 120Nm torque
- 705Wh internal removable battery
- Shimano CUES 1 x 10-Speed drivetrain
- Custom Silverback wheelset with Shimano hubs
- CST 27.5 x 2.35" tyres
- Silverback lightweight alloy components
- 45km/h and 25km/h options available per country restrictions
- Weight: 30.7 kg
Silverback 2026 S-Electro 120
Frame
Size: S, M
Colour: Iconic Grey
Frame: New Step-thru Frame, with integrated carry handle, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, 148mm x 12mm thru-axle dropouts, 29" x 2.35" tyre clear
Fork: SR Suntour XCM32 ATB Coil with Lockout, 27.5"x2.4", 100m Travel
Shock:
Drivetrain
Crankset: Alloy, 48T, 170mm
Pedals:
Chain: Shimano CN-LG500 LG Chain, 122 Links, 9/10/11 Speed
Bottom Bracket:
Rear Derailleur: Shimano RD-U6000 CUES Rear Derailleur 10/11 Speed
Front Derailleur:
Shifter: Shimano SL-U6000-10R CUES 10-Speed Right Shift Lever, Rapidfire Plus w/o Optical Gear
Freewheel/Cassette: Shimano CS-LG300-10 CUES 10-Speed Cassette, 11-48T
Braking System
Brakes: Shimano MT200 Hydraulic Disc, Resin Pads
Brake Levers:
Wheels
Tyres: [F] and [R] CST 1879 27.5 x 2.1"
Wheels/Rims: 27.5" Symmetrical Alloy Rim, Tubeless Ready
Hubs: [F] Shimano HB-QC300 Front Hub, QR, 32H, 100mm OLD, Centre Lock, Black [R] Shimano FH-TC500-HM-B Freehub, Centre Lock, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 148mm
Other
Handlebar: Alloy Handlebar, Dia: 31,8mm, 9° Backsweep, 30mm Rise, Sanblasted Black
Stem: Alloy Forged Stem, 60mm extension, Ř31.8mm, Rise 30°
Seat Post: Alloy Dropper Post, 100mm travel with remote lever, 30.9mm, Black Seat Post
Saddle: SURFACE, Black
E-Bike
Drive Unit: Ananda Drive Unit, Mid-Position, 45km/h, 120Nm Torque
Battery: 705Wh In-Tube Battery

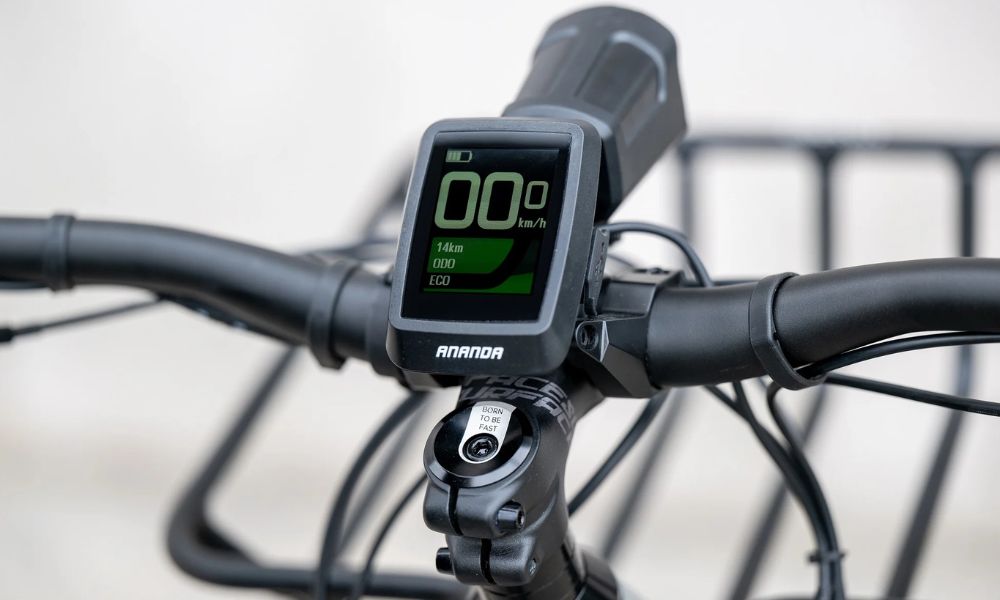

Display: Ananda Colour Display and Remote Control with USB Charging port
UI/Remote:
Charger: 2A Charger, EU 3-Pin
Extras
Fenders: Matt Black Plastic fenders for Front and Rear
Kickstand: Alloy, 40mm mounting, extendable foot
Lights: [F] E-Bike headlamp, 25 lux, clip on reflector, electric horn, IPX4 water proof [R] E-Bike tail light, integrated reflector, IPX4 water proof

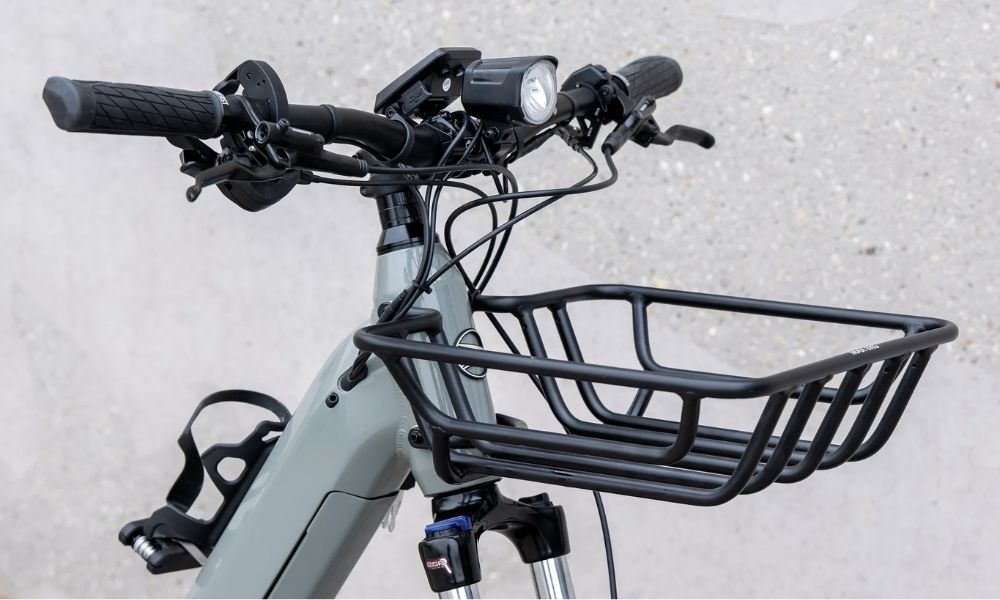

Carrier: Optional aluminium front tray, 10kg weight limit
Silverback 2026 S-Electro 120
| map | type(mm unless specified) | S-M | M-L |
|---|---|---|---|
| Rider height(cm) | 150-172 | 164-190 | |
| Rider inseam(cm) | 68-78 | 74-89 | |
| A | Seat tube c/t | 425 | 475 |
| B | Seat tube angle | 72.5° | 72.5° |
| C | Head tube angle | 69° | 69° |
| D | Top Tube | 615 | 648 |
| E | Reach | 400 | 430 |
| F | Chainstay length | 470 | 470 |
| G | bb height | 301 | 301 |
| H | head tube length | 185 | 195 |
| I | stack | 682 | 691 |
| J | standover | 504 | 503 |
| K | Wheelbase | 1155 | 1188 |
