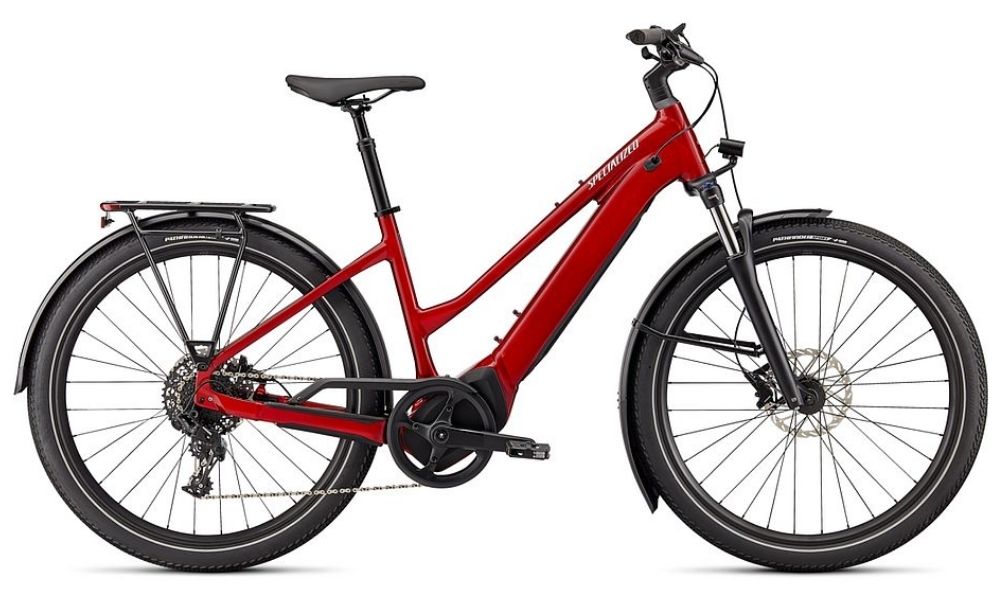

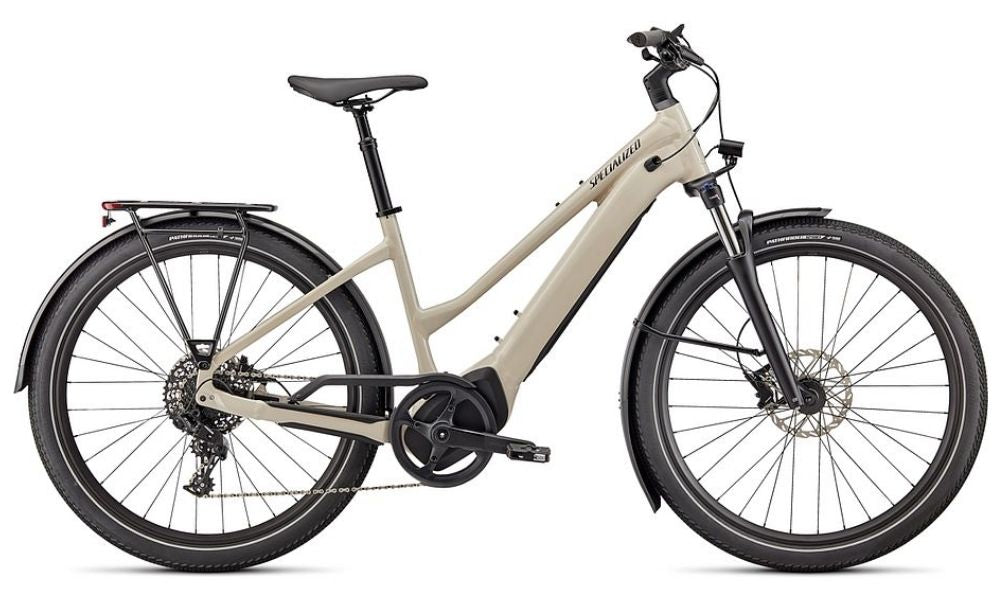

    Specialized 2022 Vado 4.0 Step-Through

    Vado is the vehicle for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.

    Redesigned geometry puts you in the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. We took learnings from the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently power from A to B.

  • Turbo Full Power 2.0 motor and 710Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.

  • MasterMind and Mission Control - The MasterMind display reveals all relevant info about your ride, allows real-time tuning of support levels, and enables over-the-air updates so that your bike gets better over time. MasterMind seamlessly integrates with the Mission Control app for range optimization tools, advanced tuning, on-ride diagnostics, and more.

  • Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with a suspended seatpost, higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.

  • Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.

  • Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.

  • Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.

  • Specialized 2022 Turbo 4.0 Step-Through

    Frame

    Colour: Cast Black/Silver Reflective, Red Tint/Silver Reflective, White Mountains/Black Reflective
    Frame: E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount
    Fork: SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
    Shock: N/A
    Weight: N/A



    Drivetrain

    Crankset: Custom alloy forged crankarms
    Pedals: N/A
    Chain: KMC e11S, 11-speed w/ Missing Link™
    Bottom Bracket: N/A
    Rear Derailleur: SRAM NX, 11-speed
    Front Derailleur: N/A
    Derailleur Shifter: SRAM NX, 11-speed
    Freewheel/Cassette: SRAM PG-1130, 11-speed, 11-42t
    Drive Unit: Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
    Battery: Specialized U2-710, alloy casing, state of charge display, 710Wh



    Wheels

    Tyres: Pathfinder Sport Reflect, 650Bx2.3
    Wheels/Rims: 650b disc, double-wall alloy, pinned, 32h
    Hubs: Front: Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h Rear: Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h



    Braking System

    Brakes: SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt



    Other

    Handle Bar: Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
    Stem: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
    Seat Post: Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve
    Saddle: Rivo Sport, steel rails, 155mm
    UI/Remote: MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
    Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V



    Extras

    Headlight: Lezyne Ebike Hecto E65, 210 Lumen, 12V
    Taillight: Spanninga Commuter Glow XE, 12V
    Kickstand: Specialized kickstand, 40mm mount
    Rack: Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load
    Fenders: Specialized DRYTECH fenders, 65mm width, aluminum fenderstay

    Specialized 2022 Vado 4.0 Step-Through

    S M L XL
    BB Drop 70 70 70 70
    BB Height 285 285 285 285
    Bike Standover Height 618 617 617 626
    Chainstay Length 470 470 470 470
    Crank Length 170mm 170mm 170mm 170mm
    Fork Length (full) 480 480 480 480
    Fork Rake/Offset 44 44 44 44
    Front Center 699 724 750 777
    Handlebar Width 680mm 680mm 680mm 680mm
    Headtube Angle 68 68 68 68
    Headtube Length 135 150 165 190
    Reach 423 444 464 481
    Saddle Width 155mm 155mm 155mm 155mm
    Seat Tube Angle (Virtual) 75.5 75 74.5 74
    Seat Tube Length 400 450 460 500
    Seatpost Length 350mm 350mm 400mm 400mm
    Stack 625 639 652 676
    Stem Length 60mm 60mm 75mm 75mm
    Toptube Length (horizontal) 585 615 645 675
    Trail 96 96 96 96
    Wheelbase 1160 1186 1212 1239

    *Specifications are subject to change. Please read our Terms & Conditions
