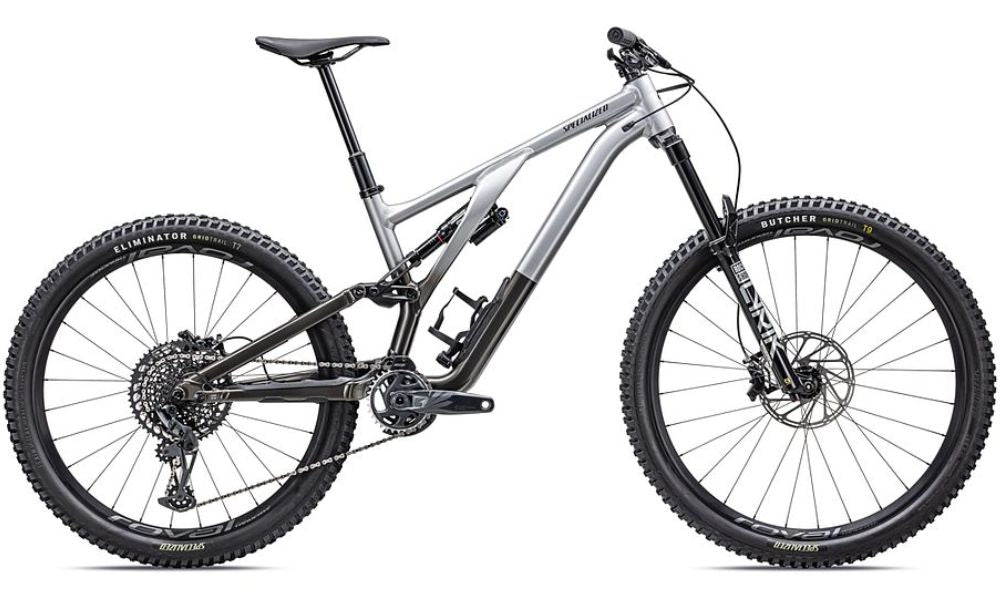

    Specialized 2023 Stumpjumper EVO Elite Alloy

    Let's get something clear, the Stumpjumper EVO Alloy isn't a ""normal"" trail bike. It's built to get gnarly, plain and simple. Featuring the same all-new design as its carbon brethren—including an adjustable head tube angle, 150mm of performance tuned travel, the adaptability of S-Sizing, and SWAT™ Door integration—in a lightweight yet tough M5 Alloy chassis, you're going to be able to bomb down trails that you thought you couldn't touch without a full-blown DH rig.

    The Stumpjumper EVO Elite Alloy is built to brawl, no question. With a bullet-proof SRAM GX Eagle 12-speed drivetrain, stout 30mm-wide alloy wheels, and Rx Tuned RockShox suspension, there’s no trail too rowdy.

  • What do you get when you pair a 29-inch front wheel with a 27.5-inch rear wheel? The Stumpjumper EVO Elite Alloy, that’s what. With all of the traction and handling benefits of a 29er, but with a smaller, more maneuverable rear wheel, this mullet setup suits a more jibby, playful style. It’s right at home at the bike park, and is a total blast to cut loose with on the trail.

  • All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, we prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, we’ve not only improved the pedaling performance of the Stumpjumper, but we’ve made it more capable, agile, and lively. We increased anti-squat, so the suspension better resists pedal bob, and we further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.

  • The S-Sizing geometry of the new Stumpjumper EVO is our most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle – these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.

  • Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight.

  • We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant. With the new Stumpjumper, we have increased the volume and added a SWAT™ Bladder, giving you an extra 22oz of water storage – the same size as a small water bottle – hidden in your downtube.

  • Specialized 2023 Stumpjumper EVO Elite Alloy

    Colour: Gloss Silver Dust/Black Tint
    Frame: M5 Alloy chassis and rear-end, asymmetrical design, 29/27.5" Trail Geometry with S-Sizing, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
    Fork: RockShox Lyrik Ultimate, Charger 3 RC2 W/ButterCups, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel
    Shock: Rock Shox Super Deluxe Ultimate, Rx Trail Tune,RC2T Damper, Hydraulic Bottom Out control , S1:210x50mm, S2-S6:210x55mm

    Drivetrain

    Crankset: SRAM GX Eagle Alloy, DUB, 165/170/175mm, 32t
    Pedals:
    Chain: SRAM GX Eagle, 12-speed
    Bottom Bracket: SRAM DUB, BSA 73mm, Threaded
    Rear Derailleur: SRAM GX Eagle, 12-speed
    Front Derailleur: NA
    Derailleur Shifter: SRAM GX, trigger, 12-speed
    Freewheel/Cassette: Sram XG-1275, 12-speed, 10-52t

    Wheels

    Tyres: [F] Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" [R] Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
    Wheels/Rims: Roval Traverse 29F/27.5R Alloy, 30mm inner width, hand-built, 2Bliss Ready
    Hubs: [F] Roval, sealed cartridge bearings, 15x110mm spacing, 28h [R] Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

    Braking System

    Brakes: [F] and [R] SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline

    Other

    Handlebar: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
    Stem: Deity, 35.0mm
    Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm
    Seat Post: OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
    SWAT: SWAT™ Door integration

    Specialized 2023 Stumpjumper EVO Elite Alloy

    S1 S2 S3 S4 S5 S6
    BB Drop 40 35 35 35 35 35
    BB Height 335 340 340 340 340 340
    Bike Standover Height 733 764 763 762 767 770
    Chainstay Length 438 438 438 438 438 438
    Crank Length 165mm 170mm 170mm 170mm 170mm 175mm
    Fork Length (full) 561 571 571 571 571 571
    Fork Rake/Offset 44 44 44 44 44 44
    Front Center 732 756 780 809 838 873
    Handlebar Width 800mm 800mm 800mm 800mm 800mm 800mm
    Headtube Angle 64.5 64.5 64.5 64.5 64.5 64.5
    Headtube Length 95 95 105 115 125 135
    Max Seatpost Insertion 180 180 200 220 240 260
    Min Seatpost Insertion 80 80 80 80 80 80
    Reach 408 428 448 475 498 528
    Saddle Width 155mm 155mm 143mm 143mm 143mm 143mm
    Seat Tube Angle 78 77.6 77.2 76.9 77 77
    Seat Tube Length 385 385 405 425 445 465
    Seatpost Length 120mm 150mm 150mm 180mm 210mm 210mm
    Stack 613 617 626 635 644 654
    Stem Length 35mm 35mm 35mm 35mm 50mm 50mm
    Top-tube Length (horizontal) 538 564 590 623 647 679
    Trail 131 131 131 131 131 131
    Wheelbase 1167 1191 1216 1247 1285 1319
    *Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

    *Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

    *Specialized Bicycles are available for home delivery nation wide.
