Specialized 2023 Turbo Levo Comp Alloy

Size

Colour

Quantity

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications
Geometry

Description

Specialized 2023 Turbo Levo Comp Alloy

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Master Mind Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo delivers more of everything that you love about trail riding.

Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.

A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.

Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.

The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

Specifications

Specialized 2023 Turbo Levo Comp Alloy

Frame

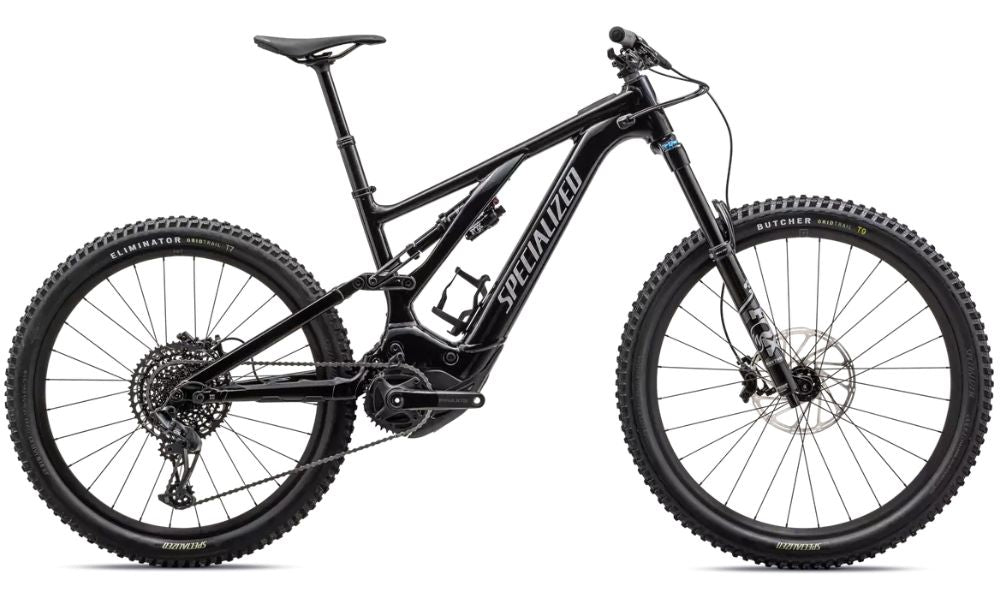

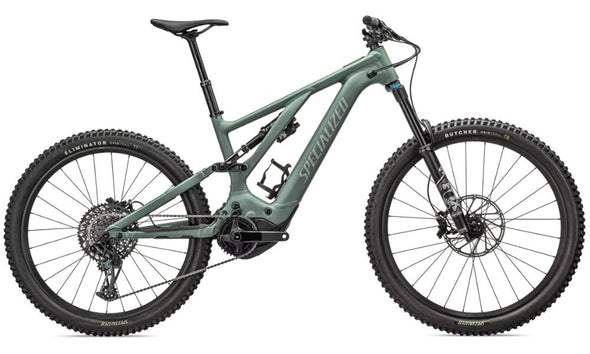

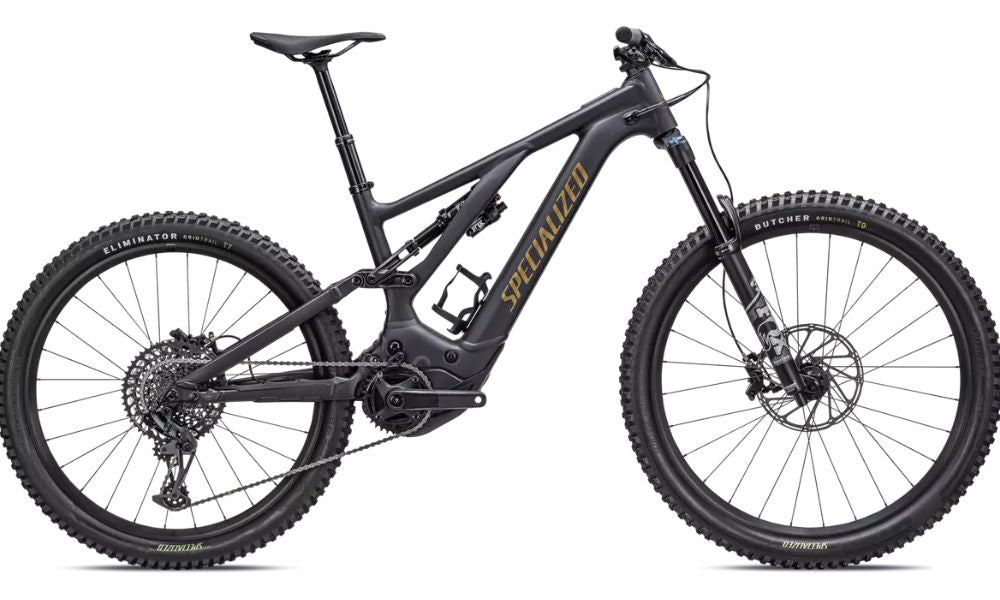

Colour: Black/Dove Grey/Black, Sage Green/Cool Grey/Black, Satin Midnight Shadow/Harvest Gold Metallic
Frame: Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Fork: Fox Rhythm 36, S1: 150mm travel, S2-S6: 160mm travel
Shock: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm

Drivetrain

Drive Unit: Specialized Turbo Full Power System 2.2 Motor
Battery: Specialized M3-700, Integrated battery, 700Wh
Crankset: Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Pedals:
Chain: SRAM NX Eagle, 12-speed
Bottom Bracket: NA
Rear Derailleur: SRAM SX Eagle, 12-speed
Front Derailleur: NA
Derailleur Shifter: SRAM GX, trigger, 12-speed
Freewheel/Cassette: Sram XG-1275, 12-speed, 10-52t

Wheels

Tyres: [F] Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6" [R] Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Wheels/Rims: Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Hubs: [F] Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h [R] Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h

Braking System

Brakes: [F] SRAM Code R, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm [R] SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Brake Levers:

Other

Handlebar: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Stem: Alloy Trail Stem, 35mm bar bore
Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seat Post: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
UI/Remtoe: Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Geometry

Specialized 2023 Turbo Levo Comp Alloy

	S1	S2	S3	S4	S5	S6
Crank Length	160	160	160	160	160	160
Handlebar Width	780	780	780	780	780	780
Stem Length	40	40	40	40	50	50
Saddle Width	155	155	143	143	143	143
Seatpost Length	100	125	150	170	170	190
Stack	605	617	626	635	644	653
Reach	412	432	452	477	502	532
Headtube Length	105	105	115	125	135	145
Headtube Angle	64.5	64.5	64.5	64.5	64.5	64.5
BB Height	352	350	350	350	350	350
BB Drop	25	27	27	27	27	27
Trail	130	130	130	130	130	130
Fork Length (full)	557	567	567	567	567	567
Fork Rake/Offset	44	44	44	44	44	44
Front Center	738	760	784	814	843	878
Chainstay Length	442	442	442	442	442	442
Wheelbase	1179	1200	1225	1255	1284	1318
Bike Standover Height	752	776	783	787	788	790
Seat Tube Length	380	390	405	425	445	465
Seat Tube Angle	78	77.2	76.7	76.2	76.2	76.2
Max Seatpost Insertion	210	220	240	255	275	295
Min Seatpost Insertion	80	80	80	80	80	80

*Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

*Specialized Bicycles are available for home delivery nation wide.

*AMFLOW Bicycles are available for purchase online, but MUST be collected from the store.
