Specialized 2027 Crux 5 Sport

$5,500.00

Size

Colour

Quantity

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications
Geometry

Description

Specialized 2027 Crux 5 Sport

Eat My Dust

The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

Use: Gravel Racing
Frame: FACT 10r Carbon: 897 grams
Wheels: DT G-500
Bar and Stem: Alloy Bar and Rapide Stem
Drivetrain: Shimano GRX Mechanical 12-speed
Weight: 8.94kg

Specifications

Specialized 2027 Crux 5 Sport

Frame

Size: 49, 52, 54, 56, 58, 61

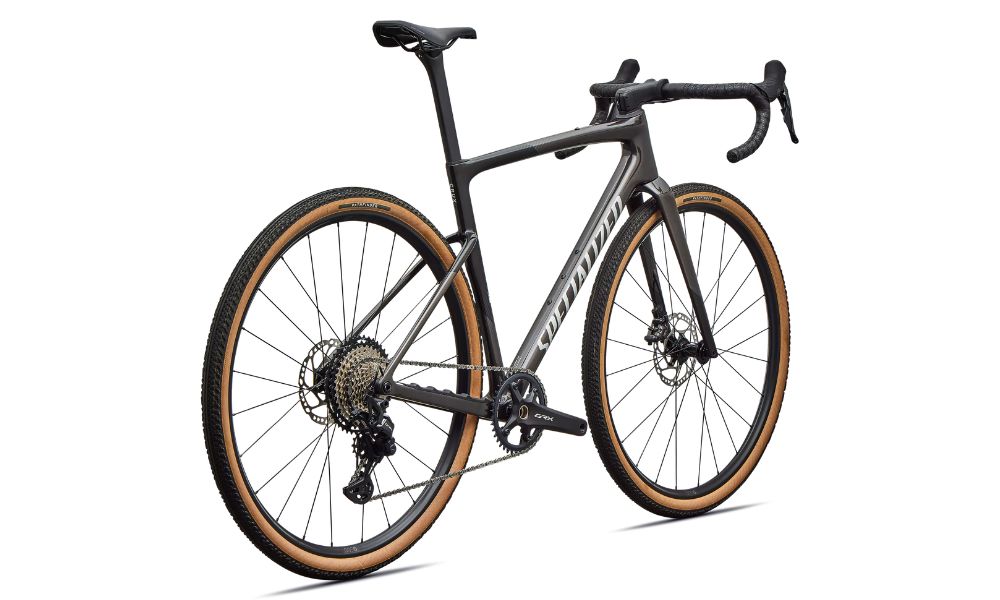

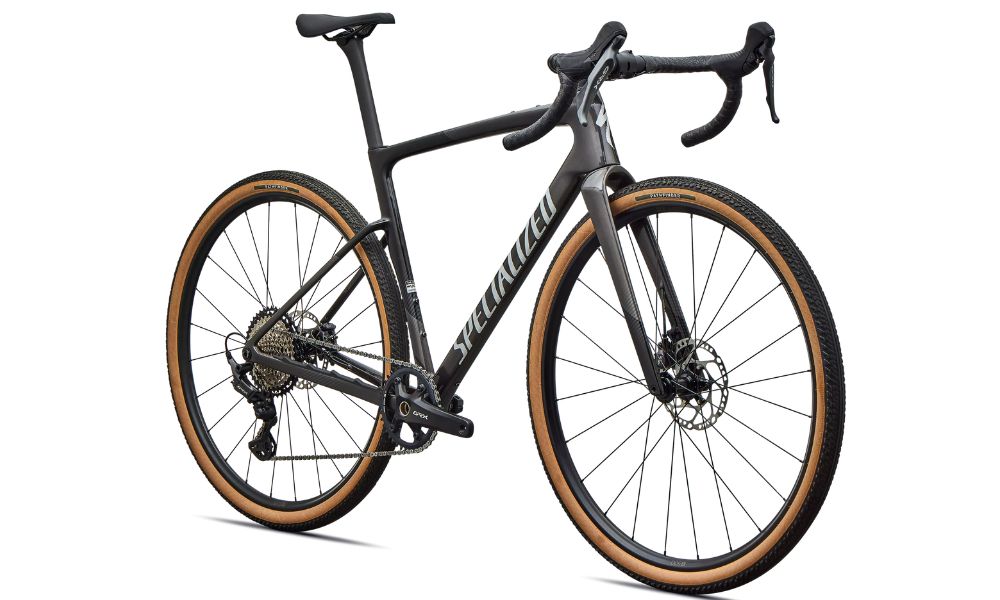

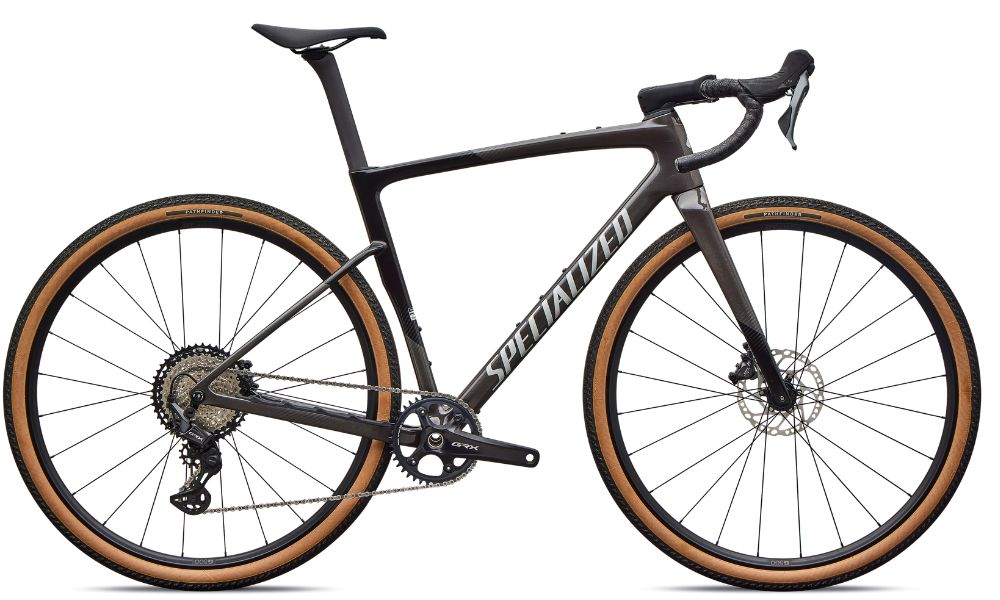

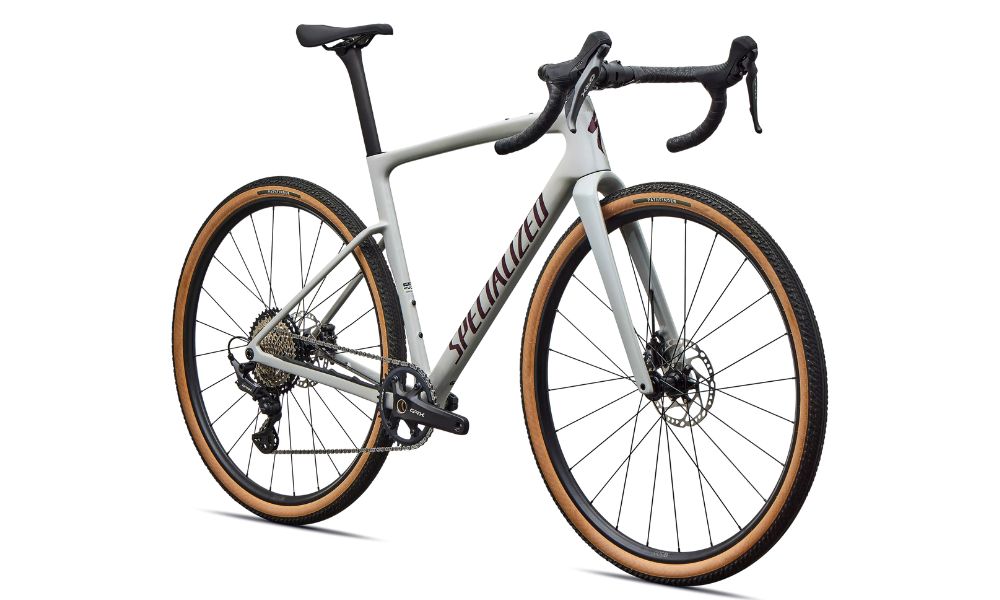

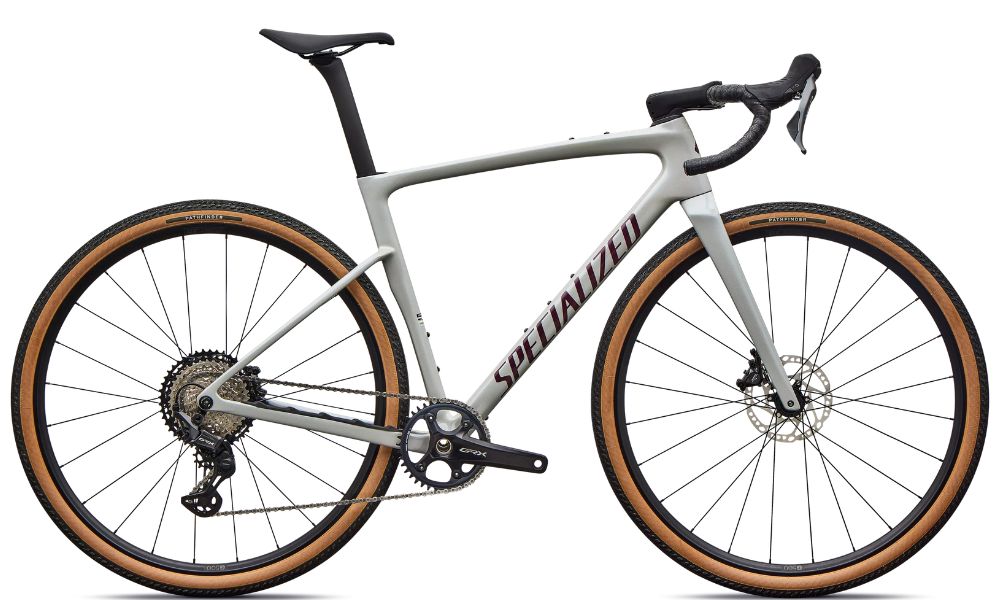

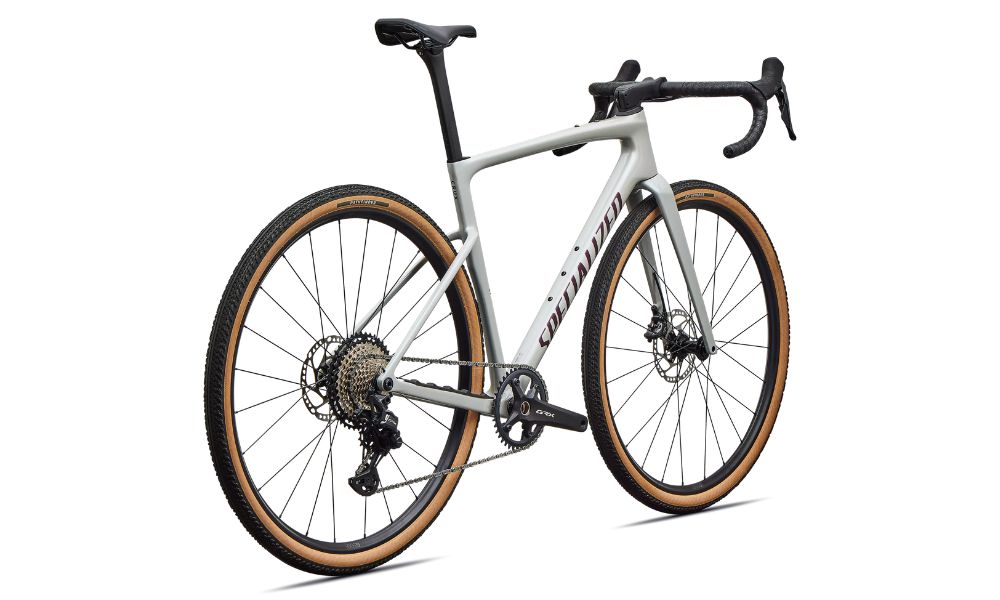

Colour: Silver Pearl Smoke/silver Dust or Dolomite Metallic/bordeaux Metallic
Frame: Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Shock:

Drivetrain

Crankset: Shimano GRX FC-RX820, 40t
Pedals:
Chain: Shimano XT CN-M8100, 12-speed
Bottom Bracket: Shimano Threaded BSA BB
Rear Derailleur: Shimano GRX RD-RX822-GS, 12-speed
Front Derailleur:
Shifter: Shiimano GRX ST-RX820
Freewheel/Cassette: Shimano XT CS-M8100, 12-speed, 10-45t

Braking System

Brakes: Shimano GRX BR-RX820
Brake Levers:

Wheels

Tyres: [F] and [R] Pathfinder 700x45, Tubeless Ready
Wheels/Rims: [F] DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples [R] DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Hubs: [F] [R]

Other

Handlebar: Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
Stem: Roval Rapide, alloy, 4 bolt, -6 degrees
Seat Post: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Saddle: Body Geometry Power Sport, steel rails

Geometry

Specialized 2027 Crux 5 Sport

	49	52	54	56	58	61
Crank Length	170	170	170	170	172.5	172.5
Handlebar Width	380	380	400	400	420	420
Stem Length	70	80	90	100	100	100
Saddle Width	155	155	143	143	143	143
Seatpost Length	300	300	380	380	380	380
Stack	530	547	560	578	598	621
Reach	375	382	388	400	412	425
Head Tube Length	95	110	125	142	163	188
Head Tube Angle	70.5	70.75	71	71.5	71.5	71.5
BB Height	278	278	280	280	280	280
BB Drop	80	80	78	78	78	78
Trail	72	71	69	66	66	66
Fork Length, Full	401	401	401	401	401	401
Fork Rake/Offset	51	51	51	51	51	51
Front Center	594	604	613	626	644	665
Chainstay Length	425	425	425	425	425	425
Wheelbase	1008	1016	1026	1039	1057	1078
Top Tube Length, Horizontal	512	534	543	566	583	603
Bike Standover Height	753	766	781	803	823	849
Seat Tube Length	445	456	473	497	515	545
Seat Tube Angle	75.5	74.5	74.5	74	74	74

*Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

*Specialized Bicycles are available for home delivery nation wide.

*AMFLOW Bicycles are available for purchase online, but MUST be collected from the store.

*TREK Bicycles are available for purchase online, but MUST be collected from the store.
