Trek 2027 Domane AL 2 Gen 4
Domane AL 2 is a lightweight road bike built for new riders who want speed, versatility, and confidence on the road. It features an Alpha Aluminum frame, an 8-speed Shimano Claris drivetrain, and a comfortable all-day geometry that’s great for group rides, fitness riding, or fast commutes. Rack, fender, and top tube mounts add everyday utility, and clearance for larger tires means you can venture off the pavement onto light gravel.
Trek 2027 Domane AL 2 Gen 4
Frame
Size: 44, 49, 52, 54, 56, 58, 61
Colour: Gloss Supernova
Frame: 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle
Fork: Domane AL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Shock:
Drivetrain
Crankset: Shimano RS200, 50/34 (compact)
Pedals:
Chain: Shimano Sora HG71, 8 speed
Bottom Bracket: Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle
Rear Derailleur: Shimano Claris R2000, medium cage, 34T max cog
Front Derailleur: Shimano Claris R2000, 31.8 mm clamp
Derailleur Shifter: Shimano Claris ST-R2000, 8-speed
Freewheel/Cassette: Shimano HG31, 11-32, 8-speed
Braking System
Brakes: Tektro C550 mechanical disc brake, dual piston, flat mount
Brake Levers:
Wheels
Tyres: Bontrager Kwaremont Comp, Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Wheels/Rims: [F] [R] Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Hubs: [F] Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle [R] Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Other
Handlebar: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop
Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
Seat Post: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset
Saddle: Verse Short Comp, steel rails, 145 mm width
Trek 2027 DOmane AL 2 Gen 4
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| 44 |
150 - 153 cm 4'11" - 5'0" |
71 - 73 cm 28" - 29" |
| 49 |
156 - 163 cm 5'1" - 5'4" |
74 - 77 cm 29" - 30" |
| 52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
| 54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
| 56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
| 58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
| 61 |
185 - 191 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
All measurements provided in cm unless otherwise stated.

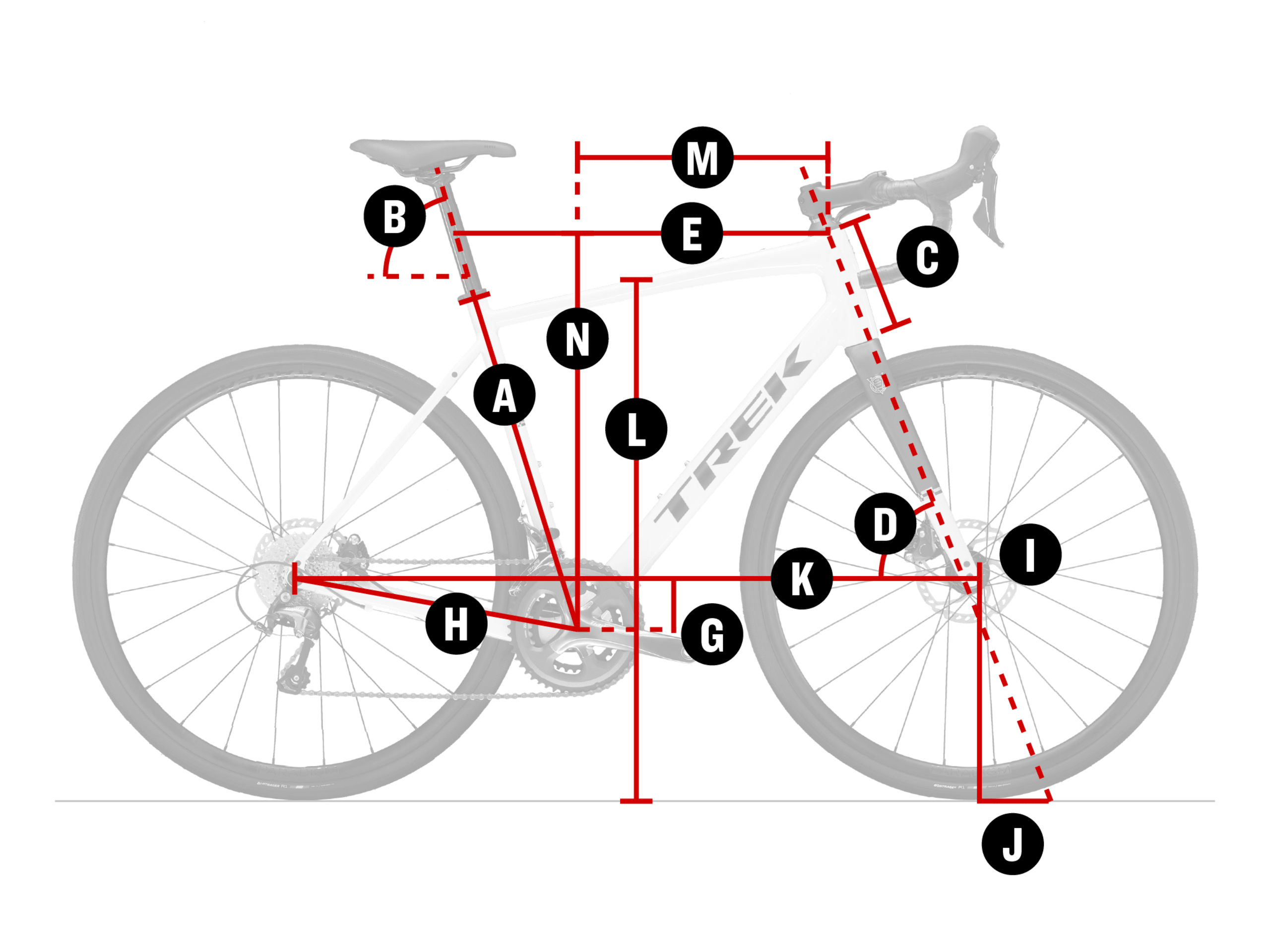

| Frame size number | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44cm | 700c | 39.0 | 74.6° | 9.5 | 70.3° | 50.7 | 8.0 | 42.0 | 5.3 | 6.6 | 98.3 | 65.7 | 36.0 | 51.0 |
| 49cm | 700c | 44.0 | 74.6° | 12.3 | 70.8° | 51.6 | 8.0 | 42.5 | 5.3 | 6.6 | 100.1 | 71.7 | 36.8 | 54.0 |
| 52cm | 700c | 47.5 | 74.2° | 14.5 | 71.3° | 53.0 | 8.0 | 42.0 | 5.3 | 5.9 | 100.3 | 73.5 | 37.1 | 56.1 |
| 54cm | 700c | 50.0 | 73.7° | 16.0 | 71.3° | 54.2 | 8.0 | 42.0 | 5.3 | 5.9 | 101.0 | 75.4 | 37.4 | 57.5 |
| 56cm | 700c | 52.5 | 73.3° | 17.5 | 71.9° | 55.4 | 7.8 | 42.0 | 4.8 | 6.1 | 101.8 | 77.6 | 37.7 | 59.1 |
| 58cm | 700c | 54.8 | 73.0° | 19.5 | 72.0° | 56.7 | 7.8 | 42.5 | 4.8 | 6.0 | 102.2 | 79.6 | 38.0 | 61.1 |
| 61cm | 700c | 57.6 | 72.7° | 23.5 | 72.1° | 58.6 | 7.5 | 42.5 | 4.8 | 6.3 | 103.8 | 84.2 | 38.5 | 64.6 |
