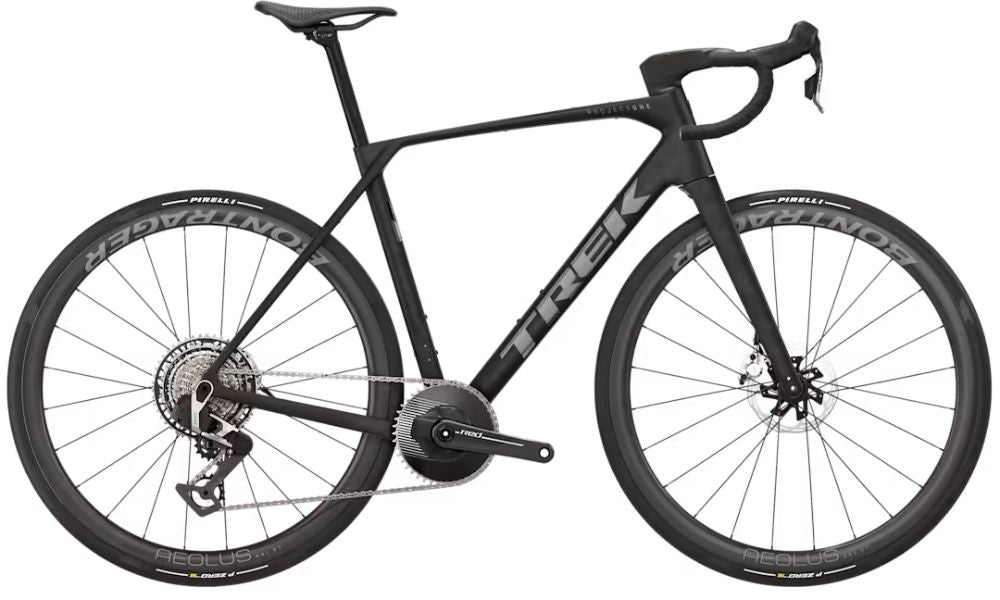

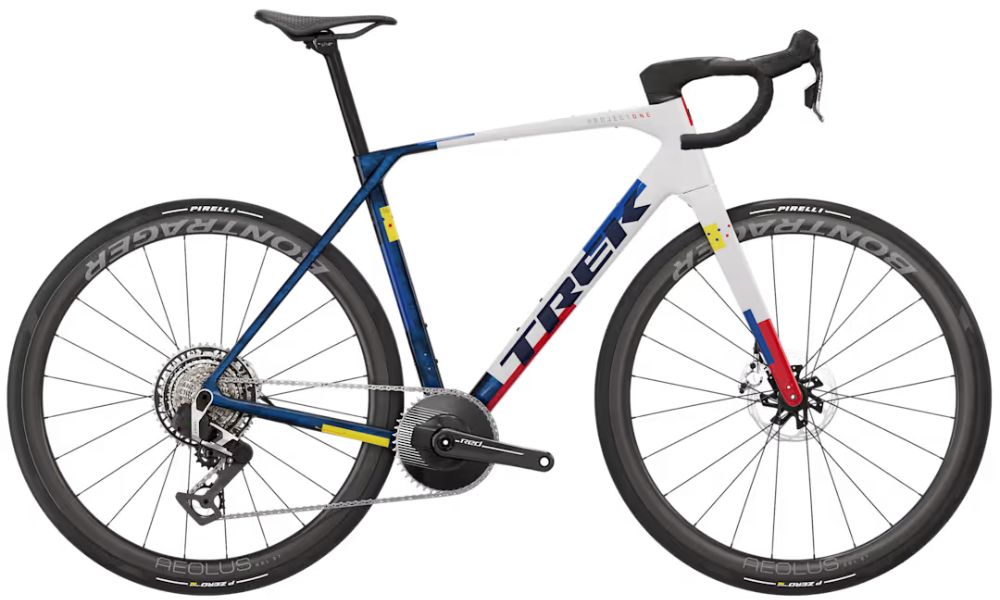

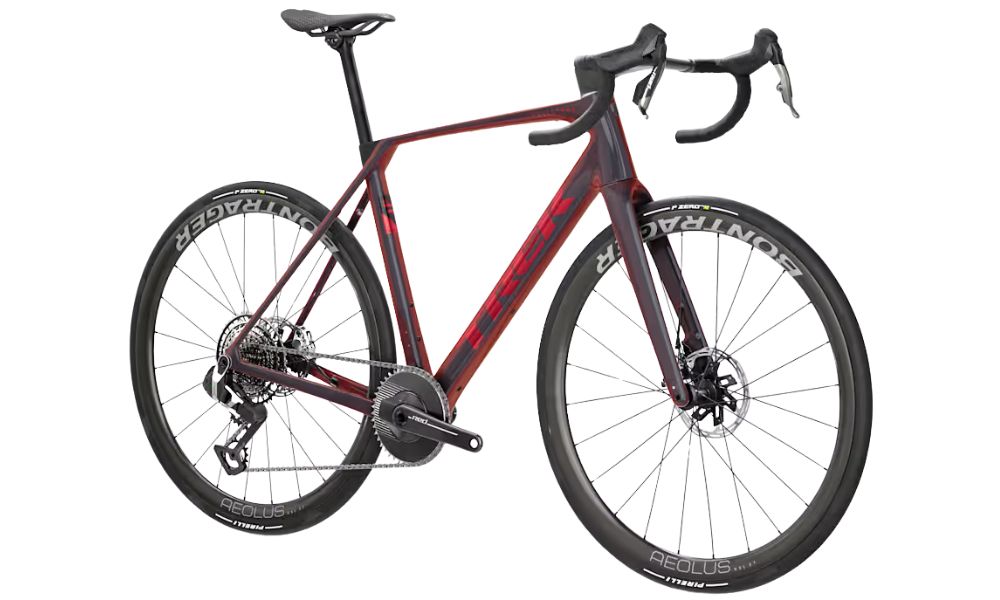

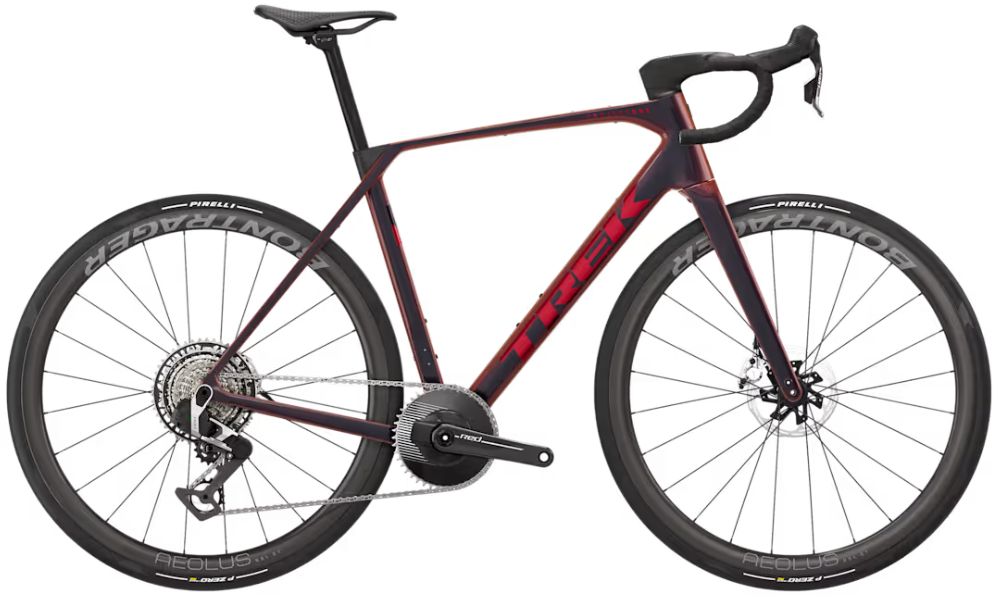

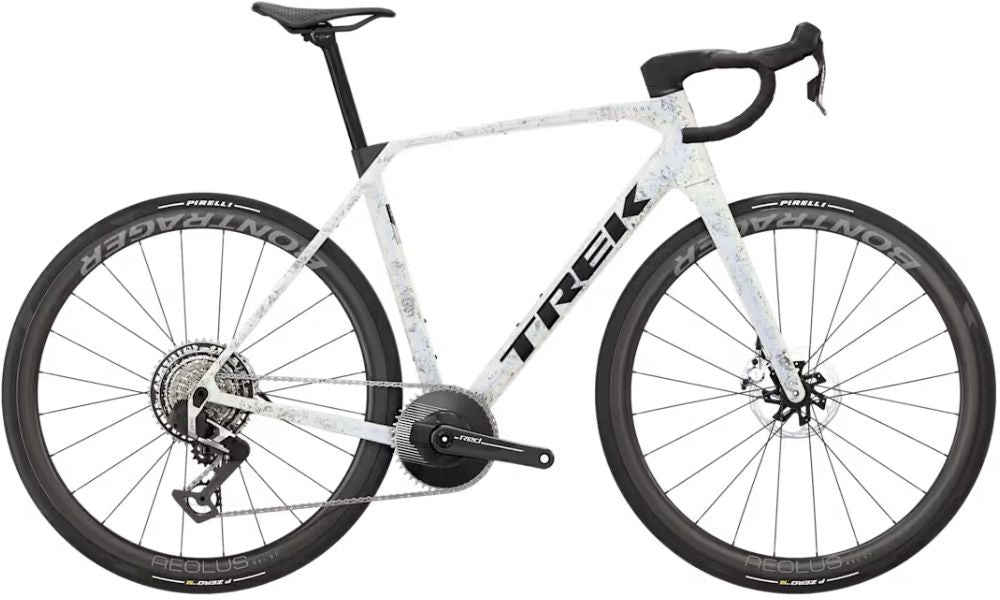

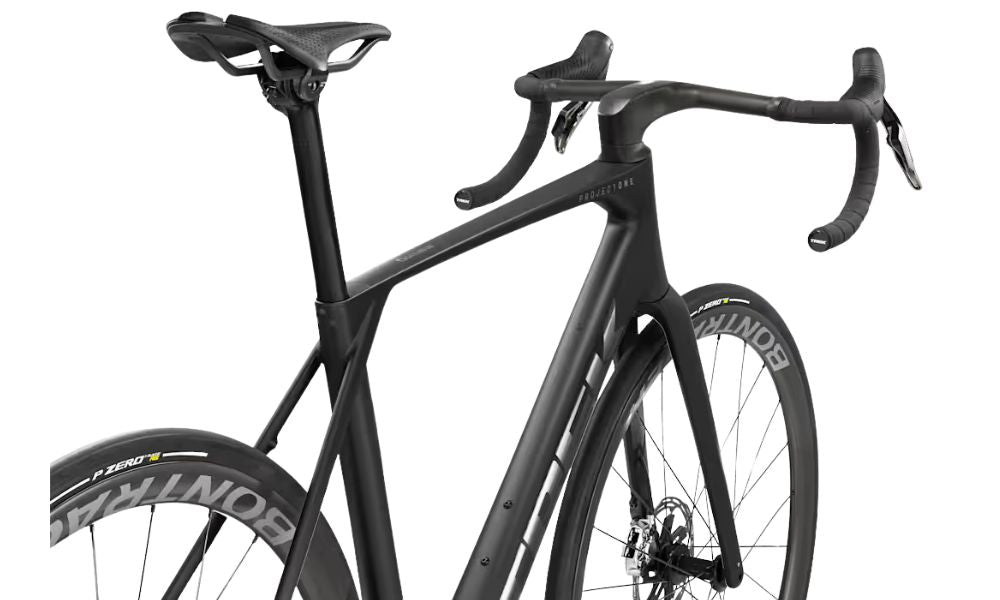

Trek 2027 Domane SLR 9 AXS 1x Gen 5
Our lightest-weight Domane build. Domane SLR 9 AXS 1x Gen 5 is an endurance road bike that breaks from the pack with a lightweight 1x drivetrain and aero-focused cockpit. Built from ultra-light 900 Series OCLV Carbon, it features a SRAM RED AXS 1x13 drivetrain with integrated power meter, Bontrager Aeolus RSL 37 carbon wheels, and a Trek Aero RSL integrated bar/stem — the same cockpit found on Madone, which puts you in a more aggressive riding position for max speed. It's a minimalist build that still delivers Domane’s comfort and long-distance pedigree.
Trek 2027 Domane SLR 9 AXS 1x Gen 5
Frame
Size: XS, S, M, ML, L, XL

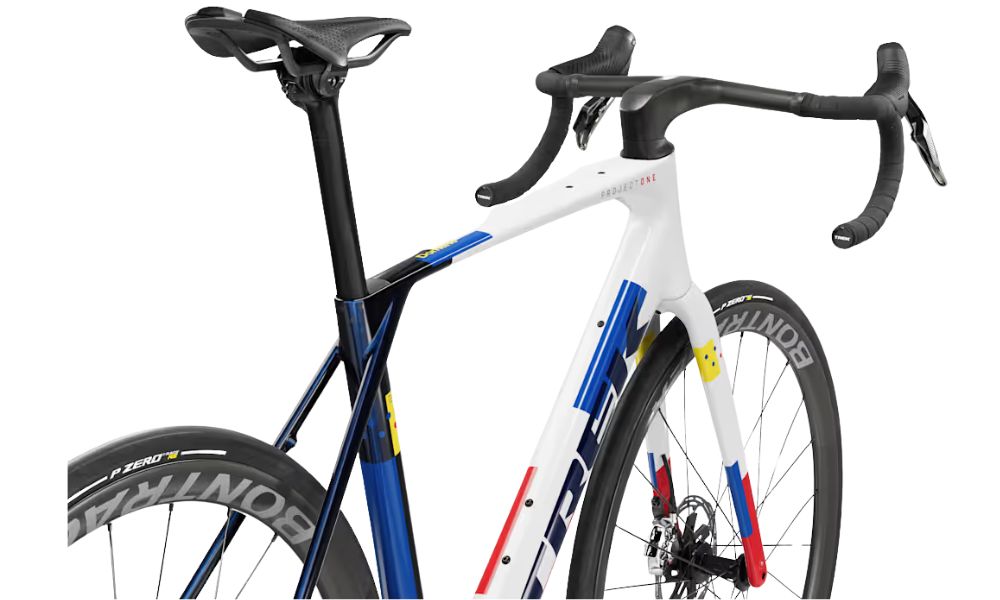

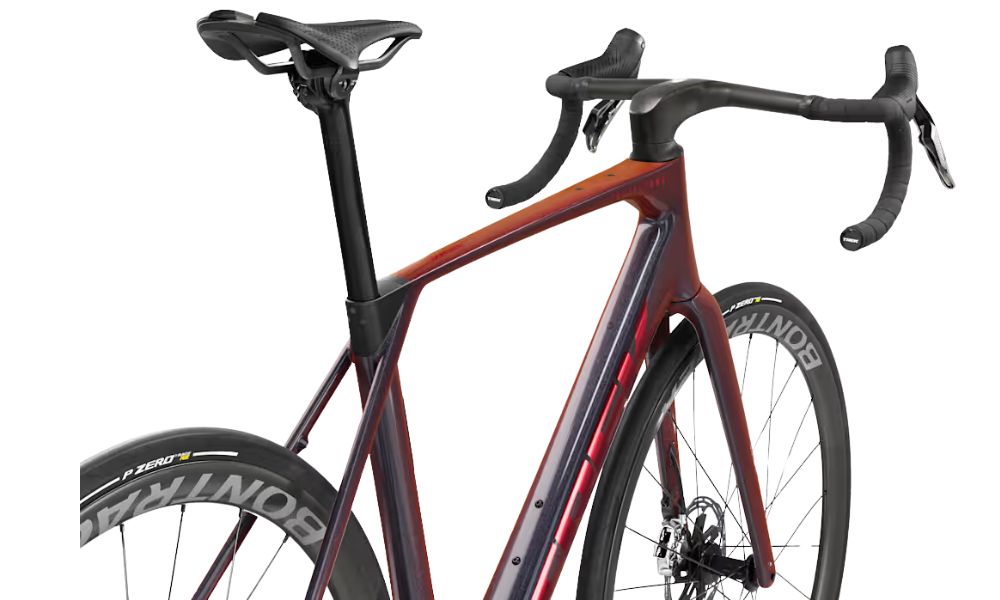

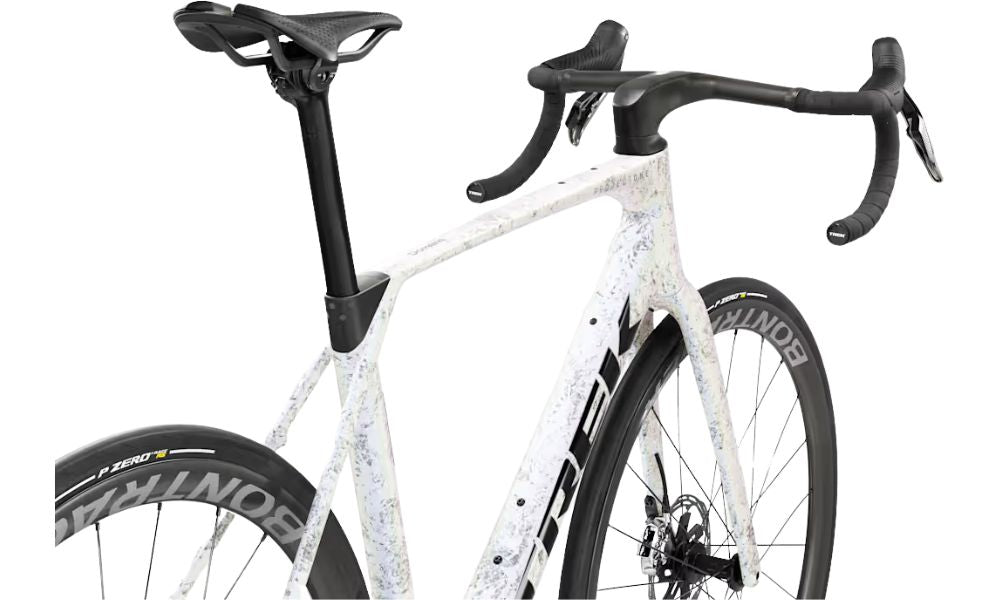

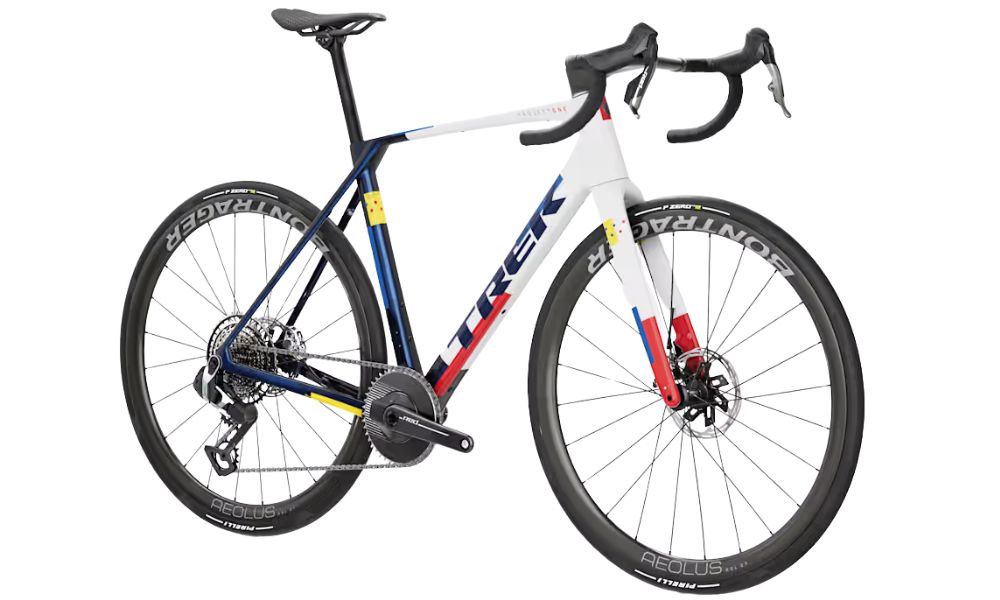

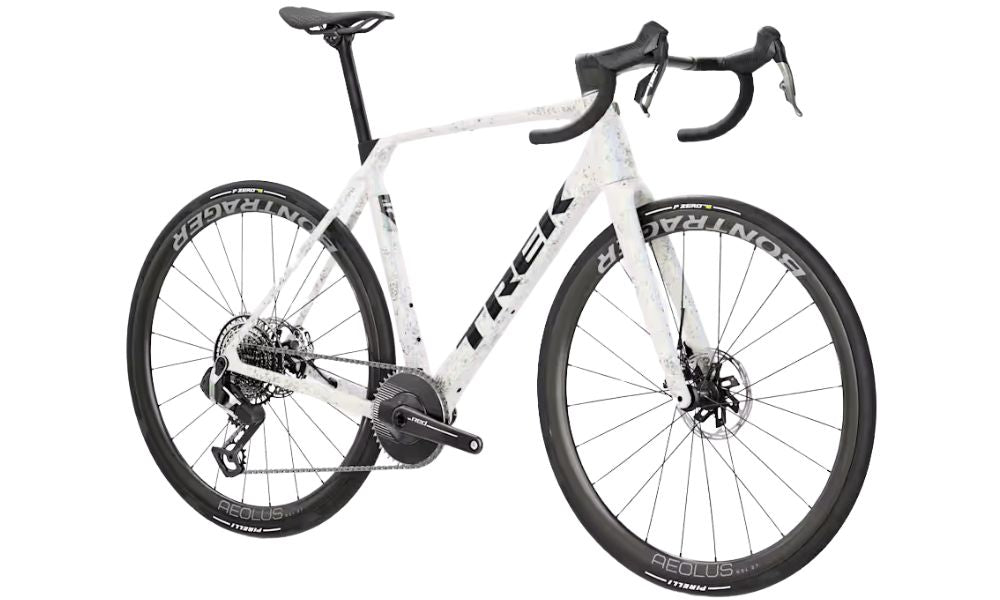

Colour: Matte Deep Smoke, Navy Smoke/Trek White, Serpentine and Mother Pearl/Silver Marble
Frame: 900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Fork: Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Shock:
Drivetrain

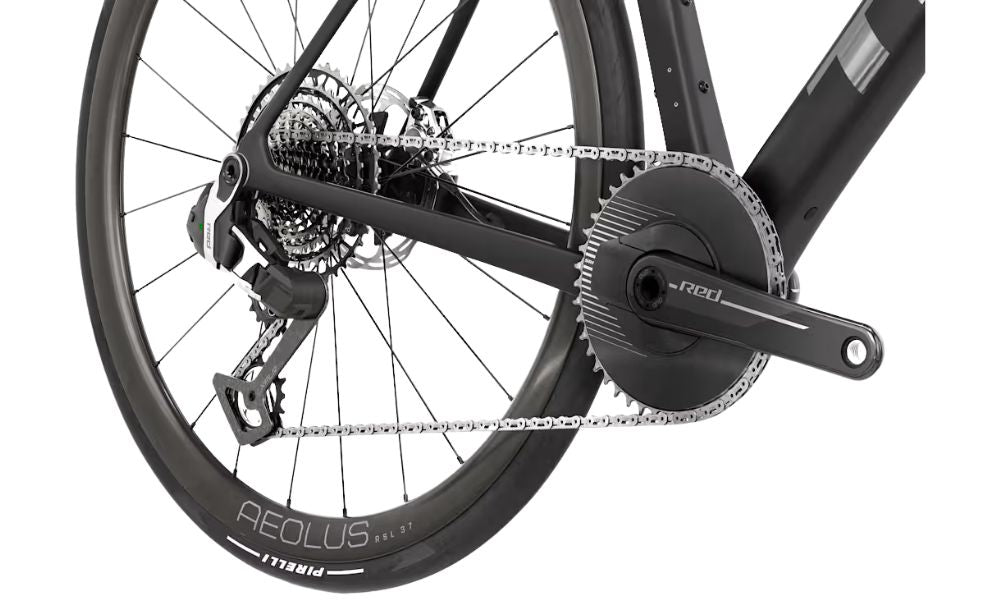

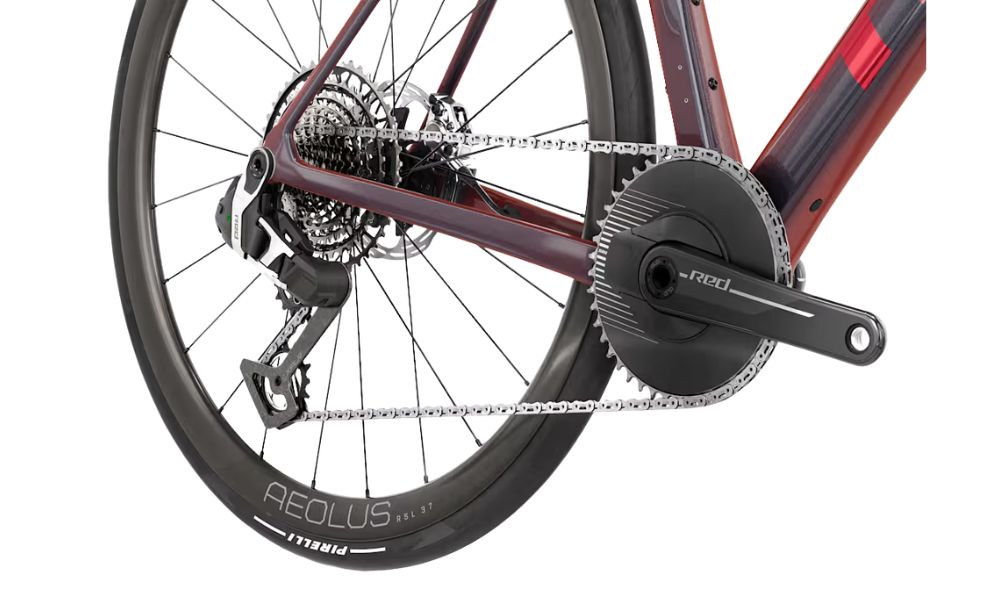

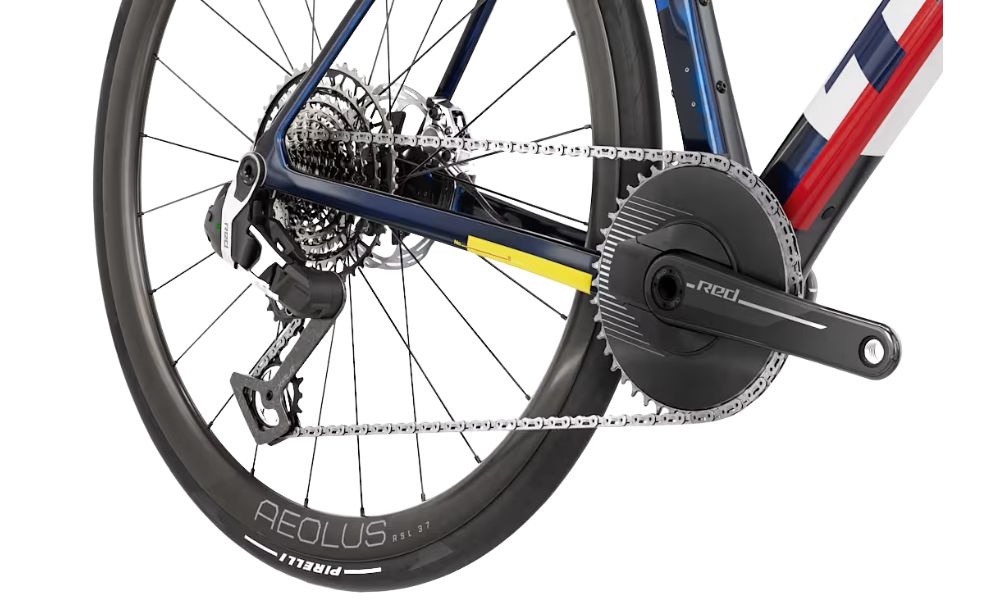

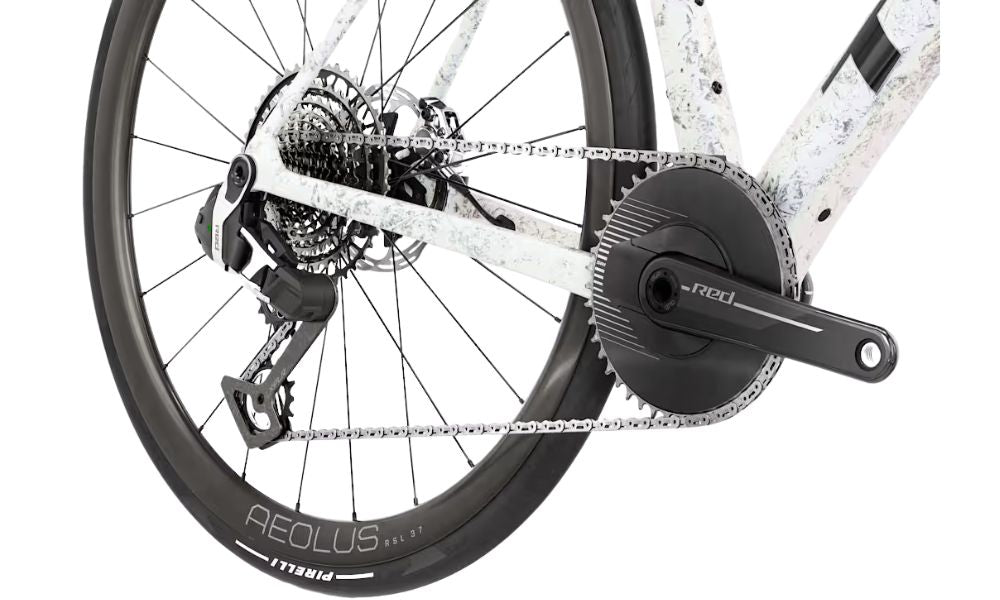

Crankset: XS, S: SRAM RED, power meter, 44T, DUB, 160mm length M, ML: SRAM RED, power meter, 44T, DUB, 165mm length L, XL: SRAM RED, power meter, 44T, DUB, 170mm length
Pedals:
Chain: SRAM RED E1, 12/13-speed
Bottom Bracket: SRAM DUB, T47 threaded, internal bearing
Rear Derailleur: SRAM RED XPLR eTap AXS, 46T max cog
Front Derailleur:
Derailleur Shifter: SRAM RED AXS E1
Freewheel/Cassette: SRAM XG-1391, 10-46T, 13-speed
Braking System
Brakes: SRAM Paceline X, rounded, CentreLock, 160 mm
Brake Levers:
Wheels
Tyres: Pirelli P Zero Race RS, 120 tpi, 700x28 mm
Wheels/Rims: [F] Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle [R] Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12 mm thru axle
Hubs: [F] [R]
Other

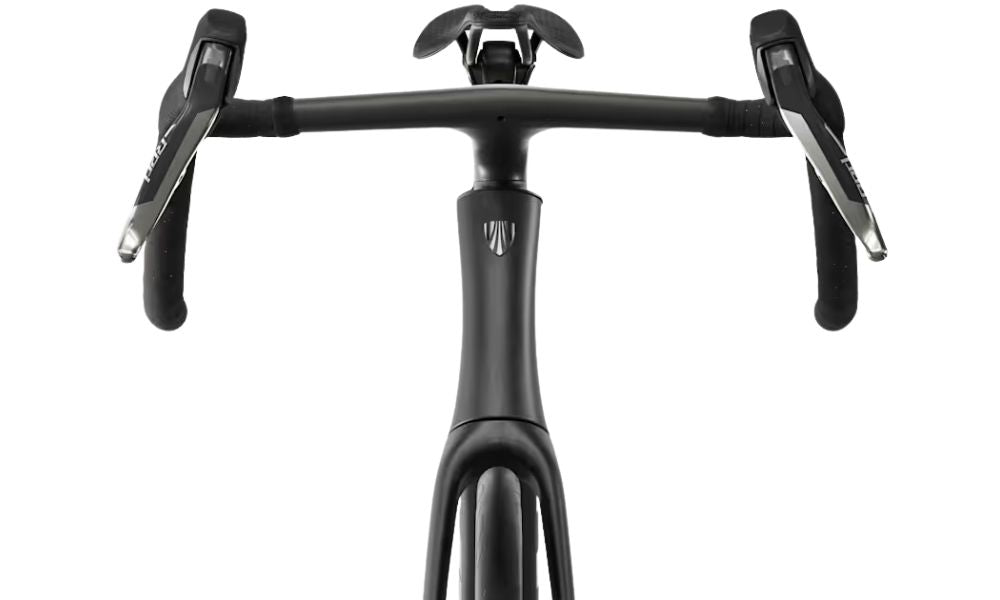

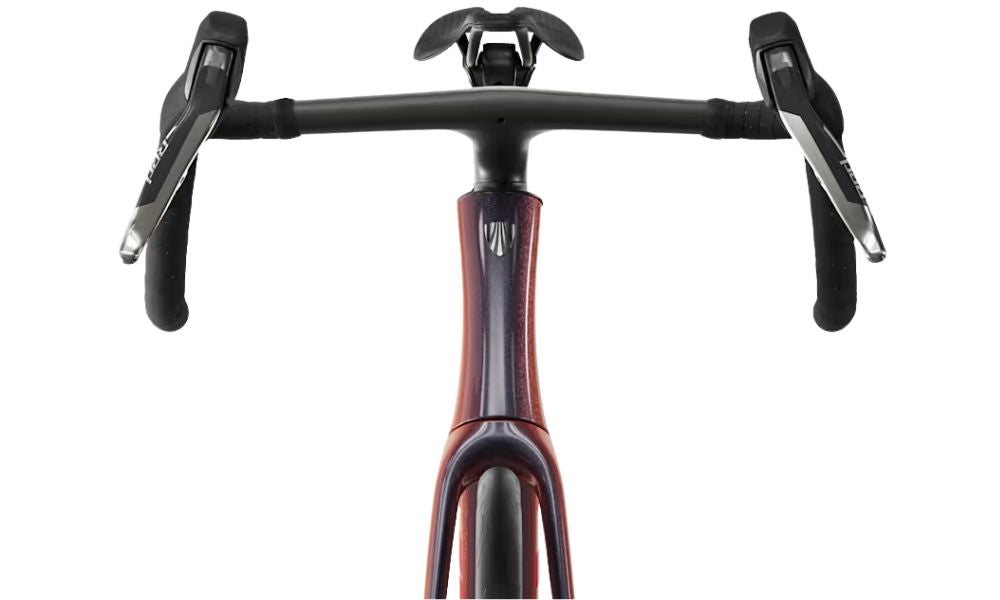

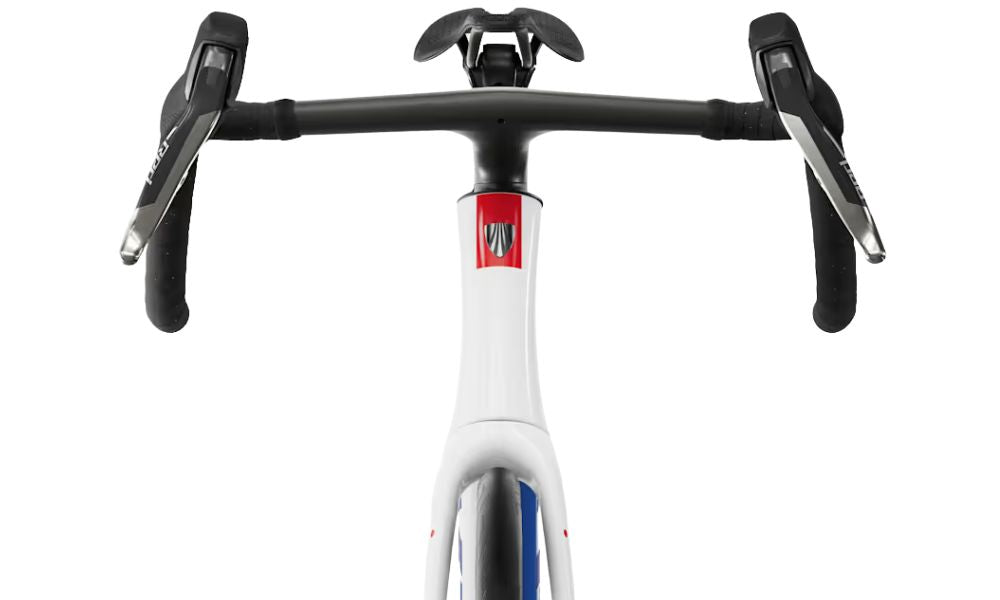

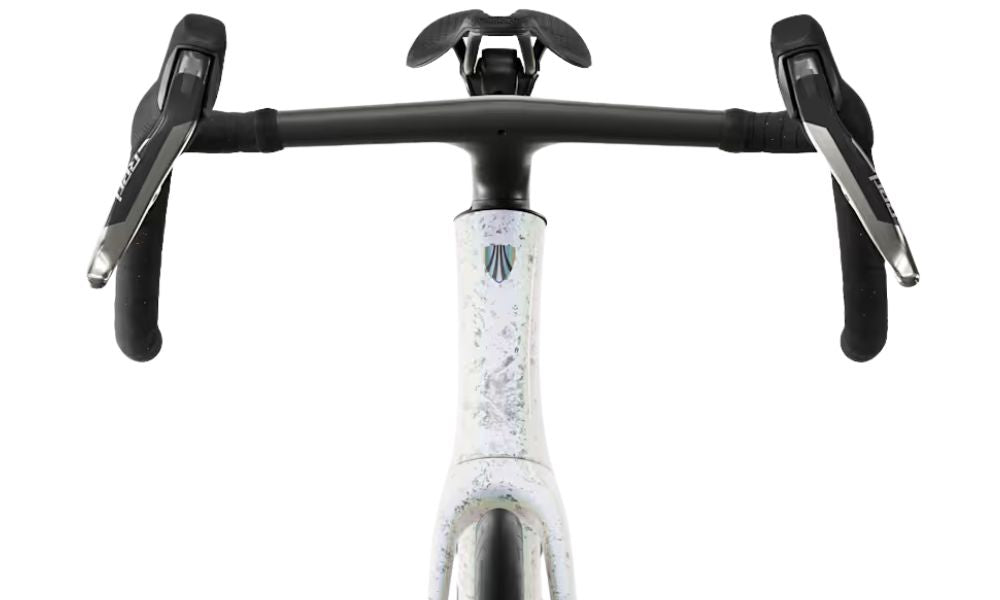

Handlebar: XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Stem:
Seat Post: Bontrager RSL carbon, 27.2 mm, 5 mm offset
Saddle: Aeolus RSL AirLoom, carbon rails, 145 mm width
Trek 2027 Domane SLR 9 AXS 1x Gen 5
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| XS (47cm) |
143 - 158 cm 4'8" - 5'2" |
67 - 74 cm 26" - 29" |
| S (50cm) |
158 - 162 cm 5'2" - 5'4" |
74 - 76 cm 29" - 30" |
| M (52-54cm) |
162 - 173 cm 5'4" - 5'8" |
76 - 81 cm 30" - 32" |
| ML (56cm) |
173 - 179 cm 5'8" - 5'10" |
81 - 84 cm 32" - 33" |
| L (58cm) |
179 - 188 cm 5'10" - 6'2" |
84 - 88 cm 33" - 35" |
| XL (60-62cm) |
188 - 199 cm 6'2" - 6'6" |
88 - 100 cm 35" - 39" |
All measurements provided in cm unless otherwise stated.
| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Front centre |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 700c | 44.4 | 73.5° | 10.6 | 71.3° | 52.0 | 8.0 | 42.0 | 5.3 | 6.2 | 98.7 | 72.1 | 36.8 | 52.4 | 58.0 |
| S | 700c | 47.6 | 73.7° | 13.9 | 71.1° | 53.0 | 8.0 | 42.0 | 5.3 | 6.3 | 100.2 | 75.3 | 37.1 | 55.5 | 59.5 |
| M | 700c | 50.0 | 73.5° | 15.9 | 71.2° | 54.1 | 8.0 | 42.0 | 5.3 | 6.3 | 101.1 | 77.5 | 37.4 | 57.5 | 60.4 |
| ML | 700c | 53.3 | 73.3° | 17.0 | 71.9° | 55.3 | 7.8 | 42.0 | 4.8 | 6.3 | 101.0 | 80.5 | 37.7 | 59.6 | 60.2 |
| L | 700c | 55.3 | 73.3° | 19.2 | 72.0° | 56.2 | 7.8 | 42.0 | 4.8 | 6.3 | 101.9 | 82.6 | 38.0 | 61.8 | 61.1 |
| XL | 700c | 59.3 | 73.3° | 22.6 | 72.1° | 57.5 | 7.5 | 42.0 | 4.8 | 6.2 | 103.3 | 86.3 | 38.4 | 64.8 | 62.4 |
