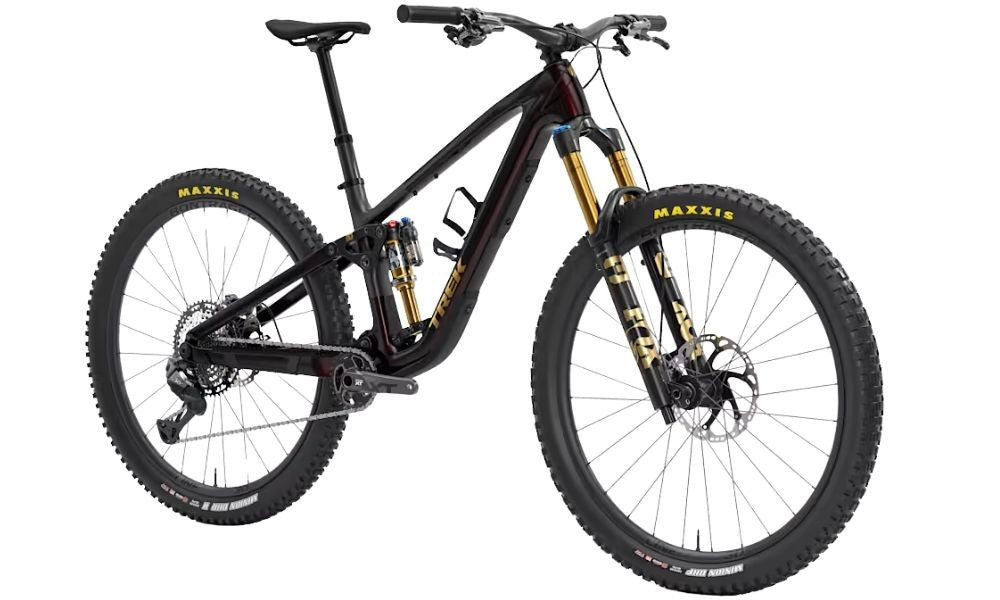

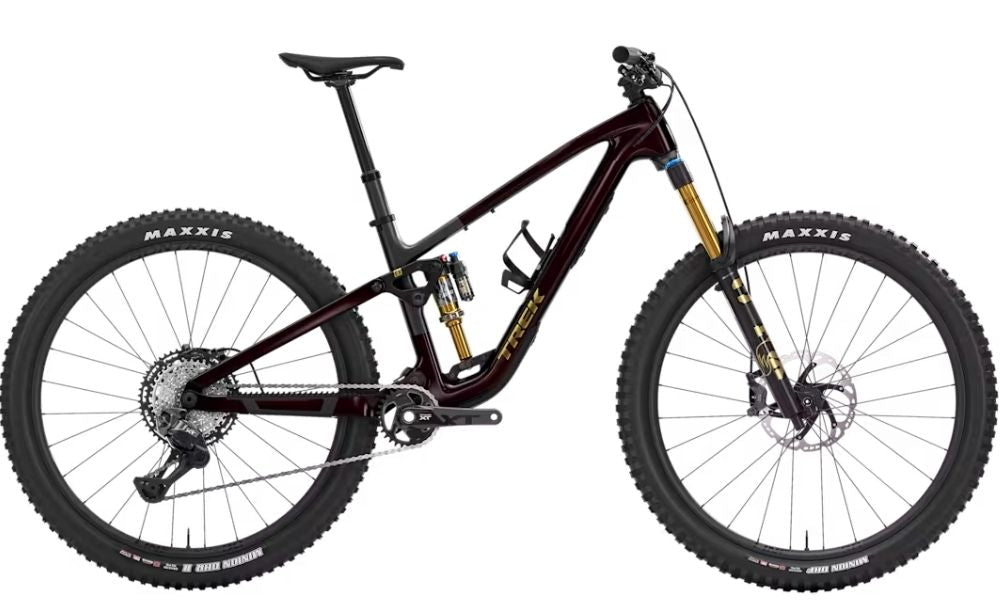

Trek 2027 Fuel EX 9.8 XT Di2 Gen 7
Fuel EX 9.8 XT Di2 is a versatile and adaptable carbon MTB built to tackle any trail, anytime. Its OCLV Mountain Carbon frame pairs with a Fox Factory suspension package (145mm rear, 150mm front) to deliver traction and stability in the rough. Shimano’s wireless XT Di2 M8250 12-speed drivetrain gives you robust, light, and crisp customizable shifting, while 4-piston Shimano XT M8220 brakes provide excellent modulation and stop-on-a-dime power.
Trek 2027 Fuel EX 9.8 XT Di2 Gen 7
Frame
Size: M, L
Colour: Gloss Dark Carmine / Matte Trek Black
Frame: OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
Fork: Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 150mm travel

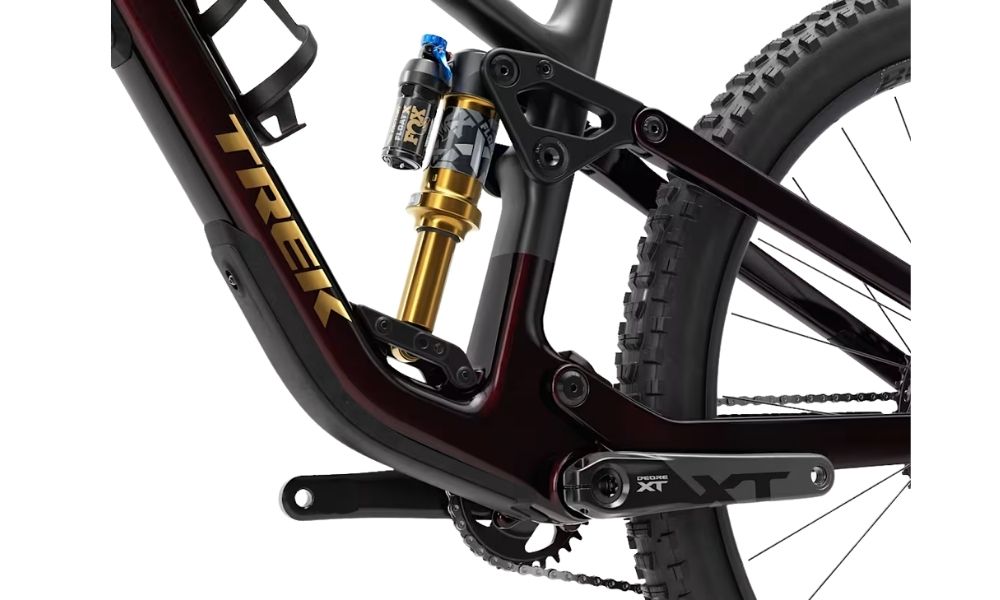

Shock: Fox Factory Float X, 205mm x 60mm

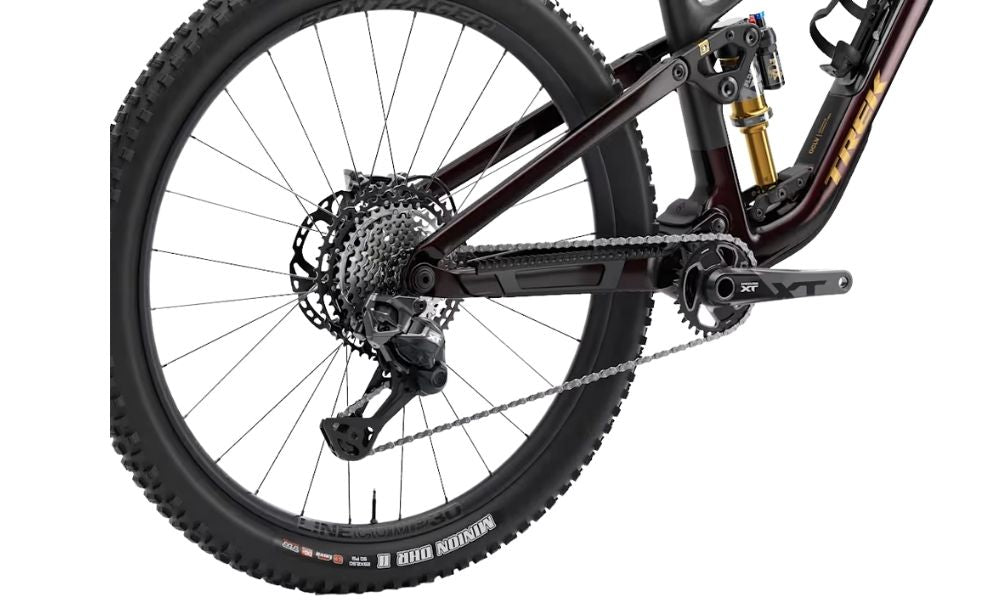

Drivetrain
Crankset: Shimano XT 8200, 30T, 55 mm chain-line
Pedals:
Chain: Shimano Ultegra/XT M8100
Bottom Bracket:
Rear Derailleur: Shimano XT M8250, long cage
Front Derailleur:
Derailleur Shifter: Shimano XT Di2 M8250, 12-speed
Freewheel/Cassette: Shimano XT M8200, 10-51, 12-speed
Braking System
Brakes: Shimano XT M8220 4-piston hydraulic disc
Brake Levers:
Wheels
Tyres: [F] Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead [R] Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead,
Wheels/Rims: [F] Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" [R] S: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 27.5" M, L, XL: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 29"
Hubs: [F] [R]
Other
Handlebar: Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
Seat Post: M: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length L, XL: Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Saddle: Verse Short Comp, steel rails, 145 mm width
Trek 2027 Fuel EX 9.8 XT Di2 Gen 7
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
| 2XL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Front centre |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5" | S | 29"/27.5" | 37.0 | 72.7° | 78.7° | 9.5 | 64.6° | 54.8 | 34.0 | 3.4 | 43.7 | 4.4 | 12.9 | 118.7 | 74.1 | 43.1 | 61.0 | 75.4 |
| 17.5" | M | 29" | 40.0 | 72.6° | 78.3° | 11.0 | 64.5° | 58.3 | 33.9 | 3.5 | 43.7 | 4.4 | 12.9 | 122.5 | 74.2 | 46.0 | 62.4 | 79.1 |
| 19.5" | L | 29" | 42.0 | 72.6° | 77.4° | 12.5 | 64.5° | 61.7 | 33.9 | 3.5 | 44.2 | 4.4 | 12.9 | 126.2 | 74.9 | 48.5 | 63.8 | 82.2 |
| 21.5" | XL | 29" | 45.5 | 72.6° | 76.9° | 14.0 | 64.5° | 65.1 | 33.9 | 3.5 | 44.7 | 4.4 | 12.9 | 129.8 | 75.5 | 51.0 | 65.1 | 85.4 |
