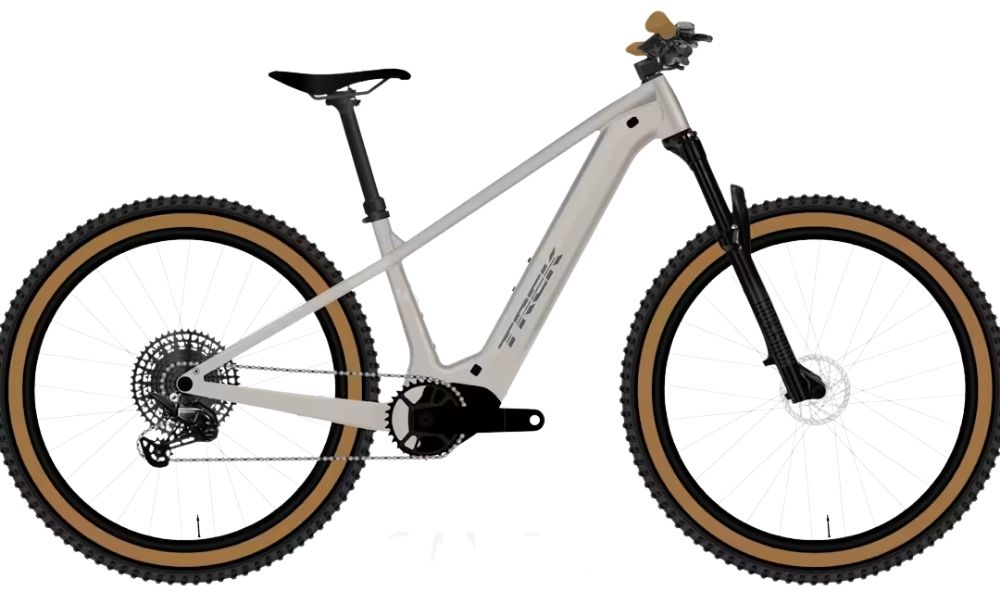

Trek 2027 Marlin+ 8
Marlin+ 8 is an electric mountain bike that’s ready to level up your trail rides. Its Bosch Performance Line motor delivers powerful support for steep climbs and longer adventures, while a 120mm RockShox Recon Silver RL fork keeps handling smooth through rough terrain. Upgraded components like wide tubeless-ready wheels and tires, a SRAM Eagle 12-speed drivetrain, and powerful 4-piston hydraulic disc brakes make it a capable trail bike that’s ready to roam.
Trek 2027 Marlin+ 8
Frame
Size: S, M, L, XL
Colour: Buff Beige
Frame: Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
Fork: S: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel M , L , XL: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Shock:
Drivetrain
Crankset: FSA Bosch CK-220, 36T ring, 165 mm length
Pedals:
Chain: SRAM S100 Eagle
Bottom Bracket:
Rear Derailleur: SRAM S100 Eagle, Half-Mount
Front Derailleur:
Derailleur Shifter: S , M , L , XL: SRAM S100 Eagle, 12-speed S , M , L , XL: SRAM S200 Eagle, 12-speed
Freewheel/Cassette: SRAM Eagle PG-1210, 10-50, 12 speed
Braking System
Brakes: Tektro HD-M5140 hydraulic disc
Brake Levers:
Wheels
Tyres: S: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60" M , L , XL: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
Wheels/Rims: Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Hubs: [F] Shimano TC500 alloy, CentreLock, 110x15 mm thru axle [R] Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Other
Handlebar: S: Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width M , L , XL: Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Seat Post: S: TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length M: TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length L , XL: TranzX JD-YSI34, 170 mm travel, internal routing, 31.6 mm, 500 mm length
Saddle: Bontrager Verse P3, steel rails
E-Bike
Drive Unit: Bosch Performance Line, 250 W, 75 Nm, 20 mph (25 km/h in Europe)
Battery: Bosch PowerTube 540 Wh
Display: Bosch Purion 200
UI/Remote:
Charger: Bosch standard 2A, 230V, smart system
Trek 2027 Marlin+ 8
| Size | Rider Height | Inseam |
|---|---|---|
| XS |
145 - 155 cm 4'9" - 5'1" |
69 - 73 cm 27" - 29" |
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36"
|
All measurements provided in cm unless otherwise stated.

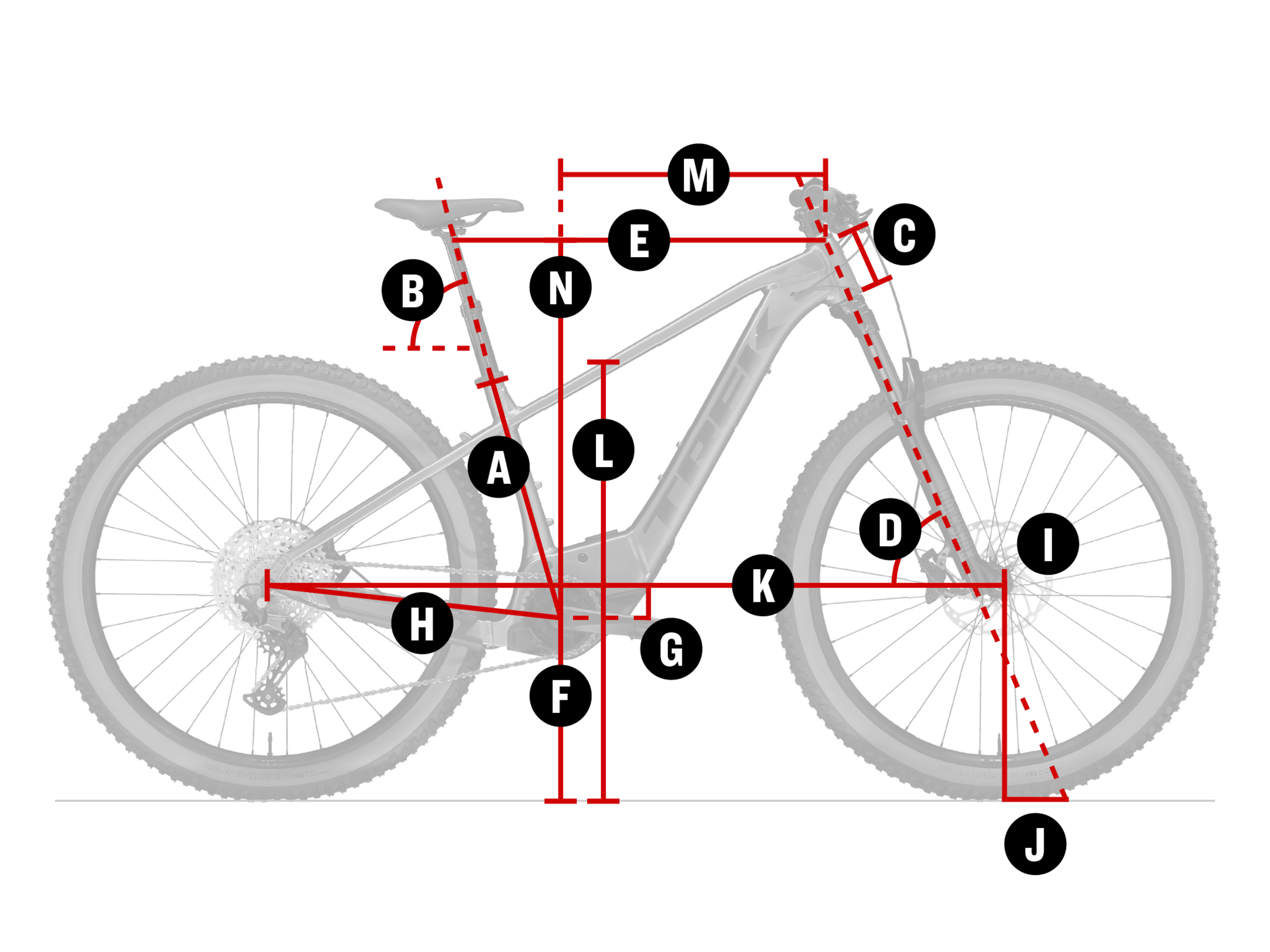

| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Front centre |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5" | S | 27.5" | 37.0 | 73.0° | 75.0° | 13.3 | 65.5° | 57.1 | 31.5 | 4.5 | 44.2 | 4.4 | 11.6 | 115.1 | 69.7 | 41.0 | 59.9 | 71.2 |
| 17.5" | M | 29" | 40.0 | 73.3° | 75.0° | 10.8 | 66.5° | 61.2 | 31.5 | 6.5 | 46.1 | 4.4 | 11.7 | 119.5 | 74.7 | 44.0 | 64.1 | 74.1 |
| 19.5" | L | 29" | 42.0 | 73.4° | 75.0° | 12.3 | 66.5° | 64.0 | 31.5 | 6.5 | 46.1 | 4.4 | 11.7 | 122.6 | 74.6 | 46.5 | 65.5 | 77.2 |
| 21.5" | XL | 29" | 45.0 | 74.6° | 75.0° | 14.3 | 66.5° | 65.8 | 31.5 | 6.5 | 46.1 | 4.4 | 11.7 | 125.9 | 74.6 | 49.0 | 67.3 | 80.5 |
