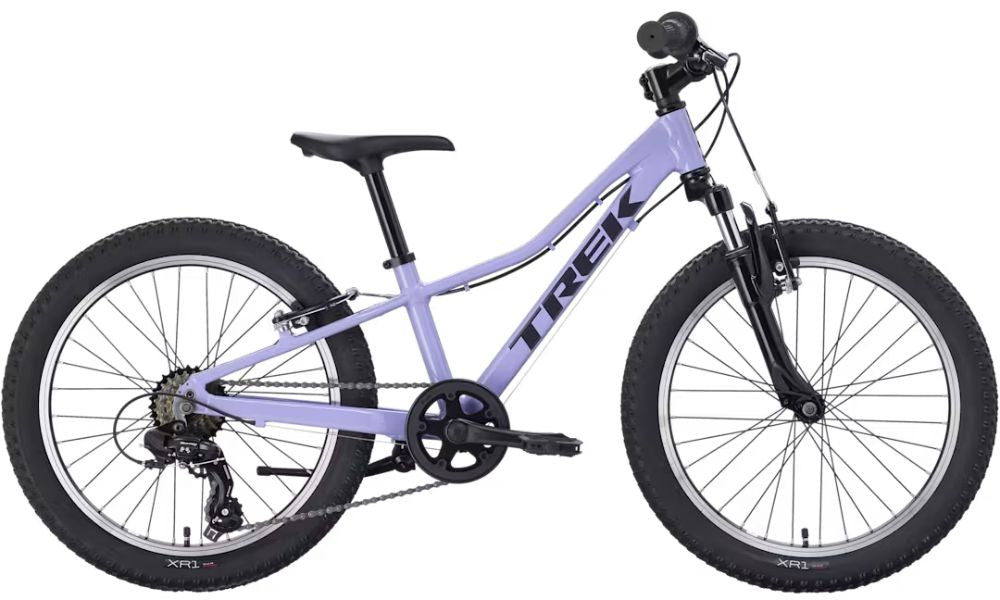

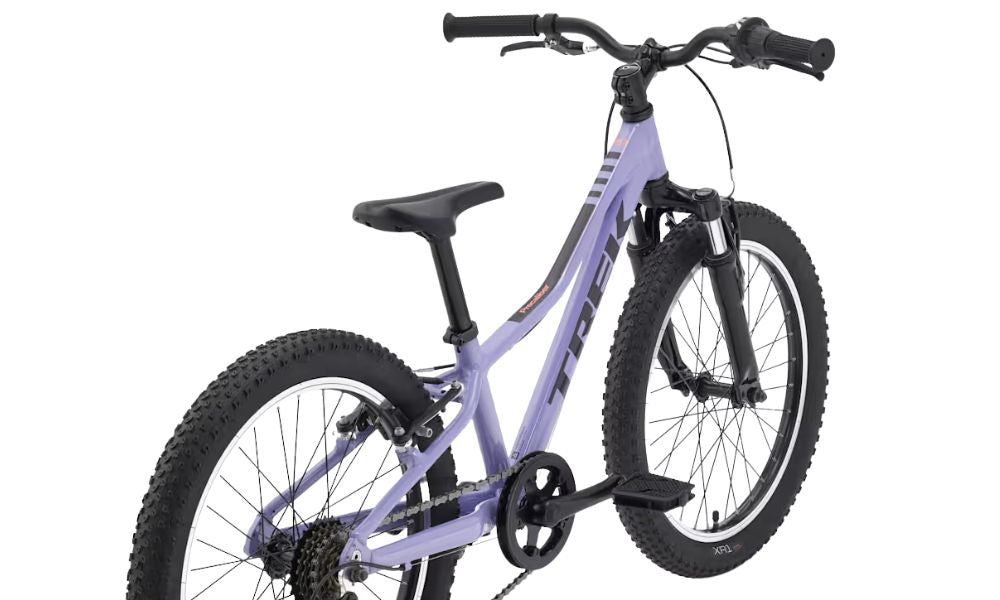

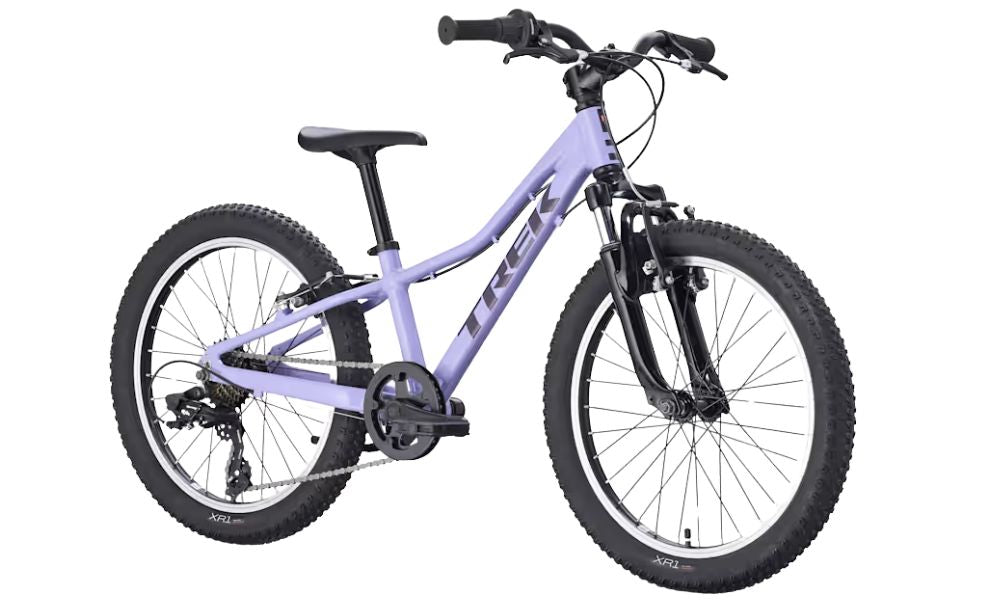

Trek 2027 Precaliber 20
The Precaliber 20 7-Speed is a versatile kids' bike for young adventurers. It has a lightweight frame and quality components like a front suspension fork, 7 gears, and hand brakes that are perfectly sized to better fit small riders. For kids ages 5-8, between 45-52˝ tall.
Trek 2027 Precaliber 20
Frame
Size: 20

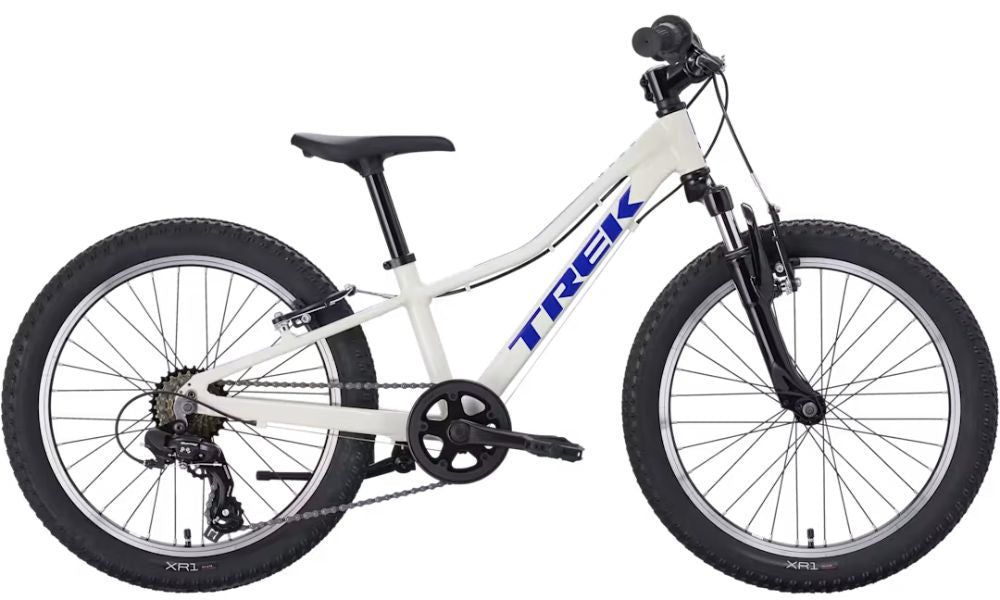

Colour: Lavender Haze, Marianas Blue and Eras White
Frame: Alpha Silver Aluminium, 20" kids' frame size

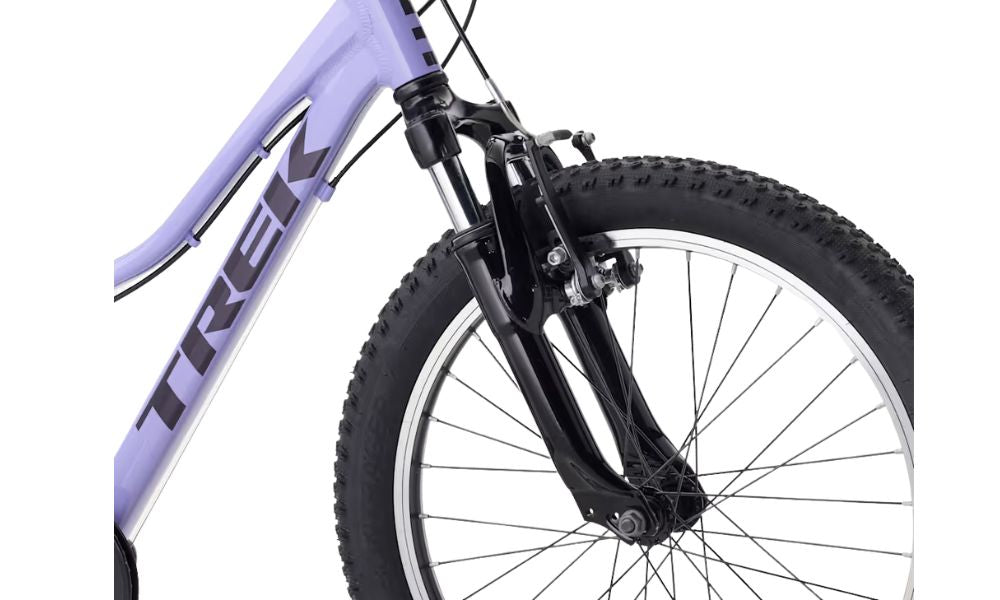

Fork: Kids' suspension, threadless steerer, 35 mm travel
Shock:
Drivetrain
Crankset: ProWheel alloy, 32T steel ring w/double guard, 127 mm length
Pedals: Kids' Satellite, 9/16 thread
Chain: KMC Z7, 7-speed
Bottom Bracket: Square taper, 68 mm, sealed cartridge
Rear Derailleur: Shimano Tourney TY300
Front Derailleur:
Derailleur Shifter: Shimano RV300, 7-speed twist
Freewheel/Cassette: SunRun freewheel, 14-28, 7 speed
Braking System
Brakes: Alloy linear-pull
Brake Levers: Kids', alloy
Wheels
Tyres: Bontrager XR1, wire bead, 27 tpi, 20x2.25"
Wheels/Rims: Alloy 20", 32-hole, Schrader valve
Hubs: [F] Steel, 100 mm bolt-on [R] Steel, 26T
Other

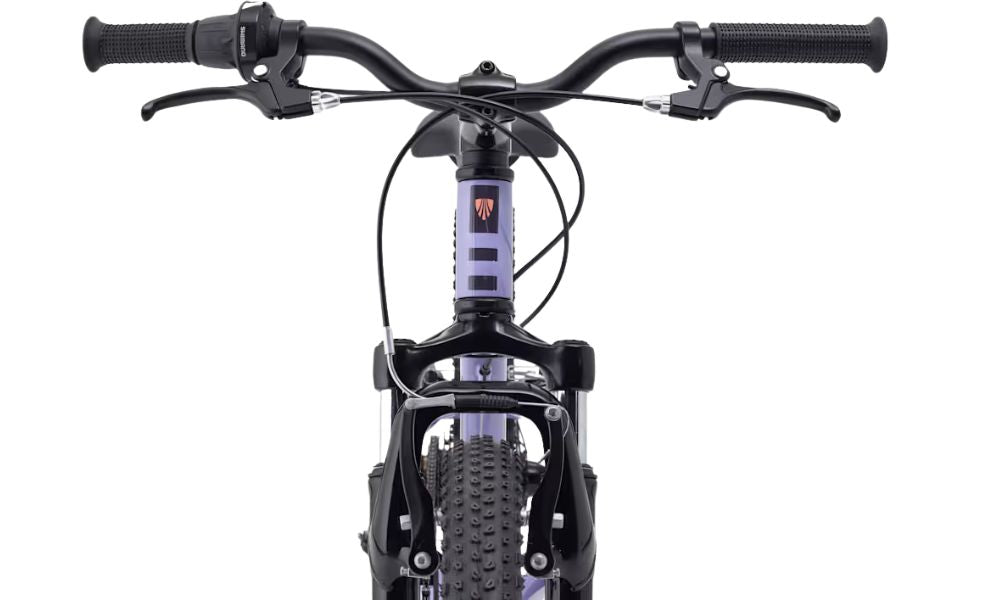

Handlebar: Kids' steel, 25.4 mm clamp, 40 mm rise, 560 mm width
Stem: Bontrager Approved alloy, 25.4 mm clamp, 15-degree rise, 60 mm
Seat Post:

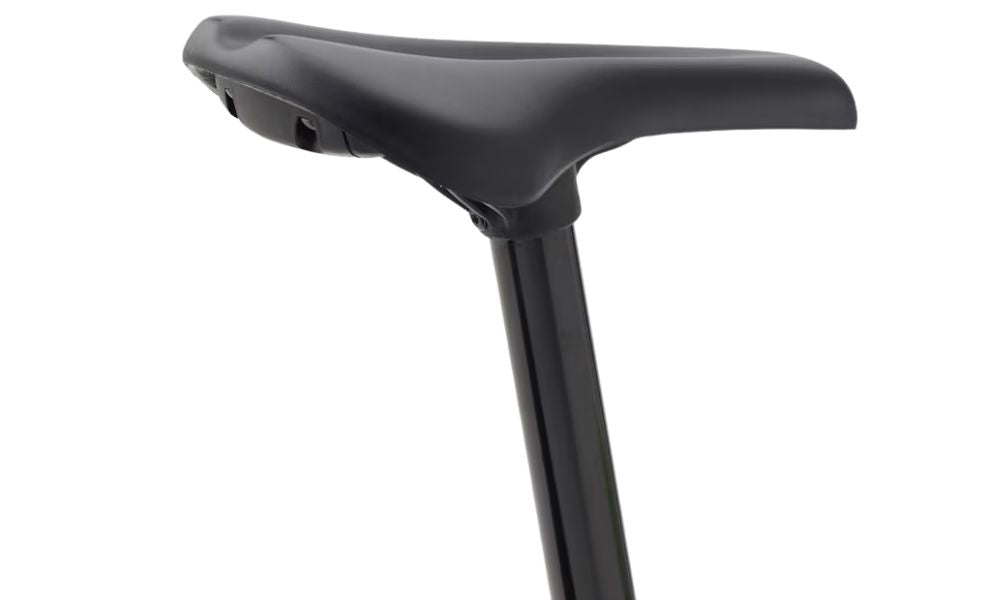

Saddle: Kids' padded, integrated seat post, with handle
.
Trek 2027 Precaliber 20
Sizing
| Size | Rider Height |
|---|---|
| 12" wheel |
86 - 102 cm 2'10" - 3'4" |
| 16" wheel |
99 - 117 cm 3'3" - 3'10" |
| 20" wheel |
114 - 132 cm 3'9" - 4'4" |
| 24" wheel |
130 - 150 cm 4'3" - 4'11" |
| 26" wheel |
146 - 160 cm 4'9" - 5'3"
|
All measurements provided in cm unless otherwise stated.
| Frame size number | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 20" kids' | 25.5 | 72.0° | 8.5 | 70.0° | 44.5 | 23.8 | 3.0 | 37.2 | 4.2 | 5.9 | 86.0 | 49.1 | 30.2 | 44.1 |
