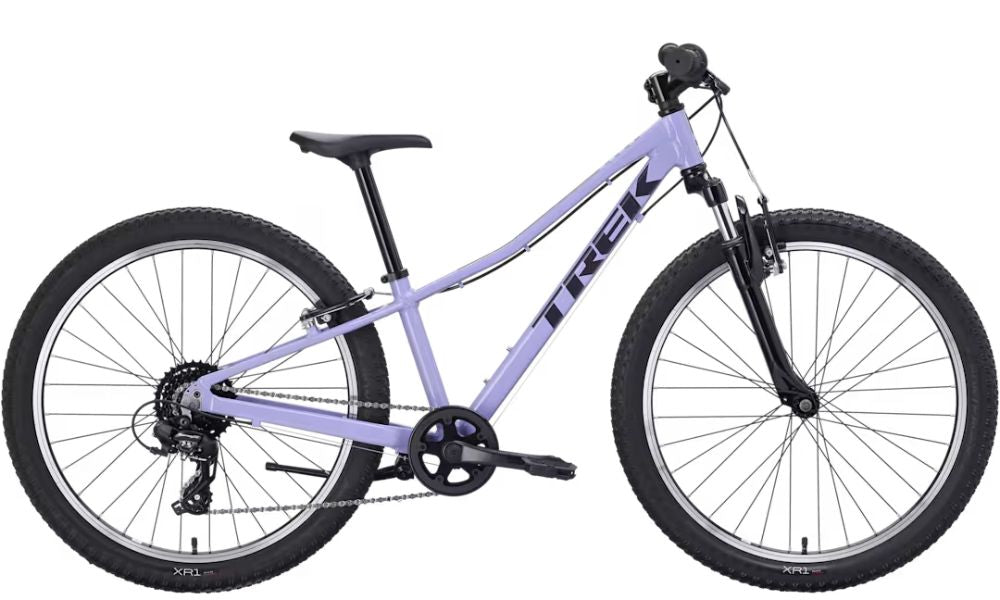

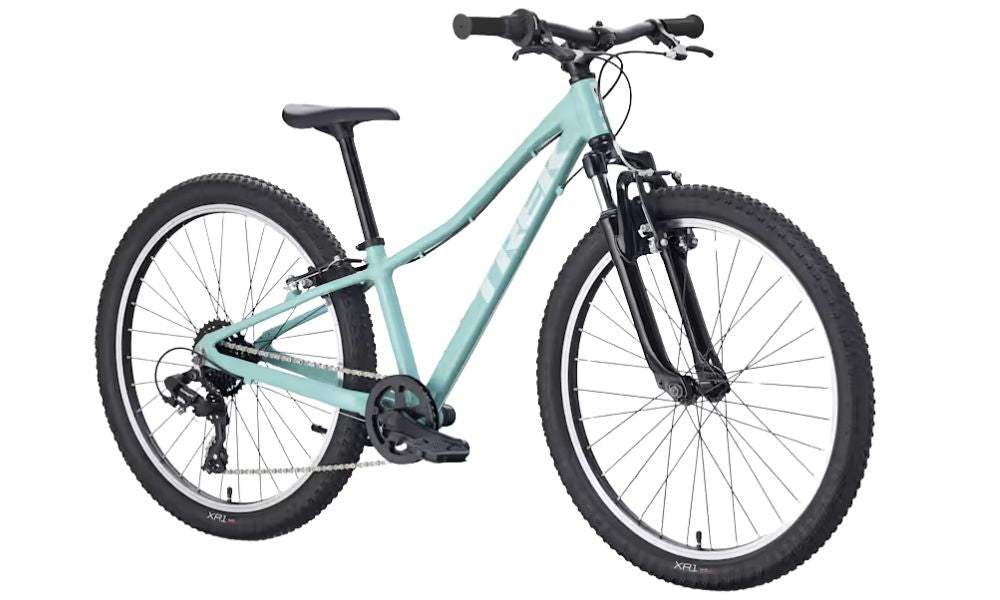

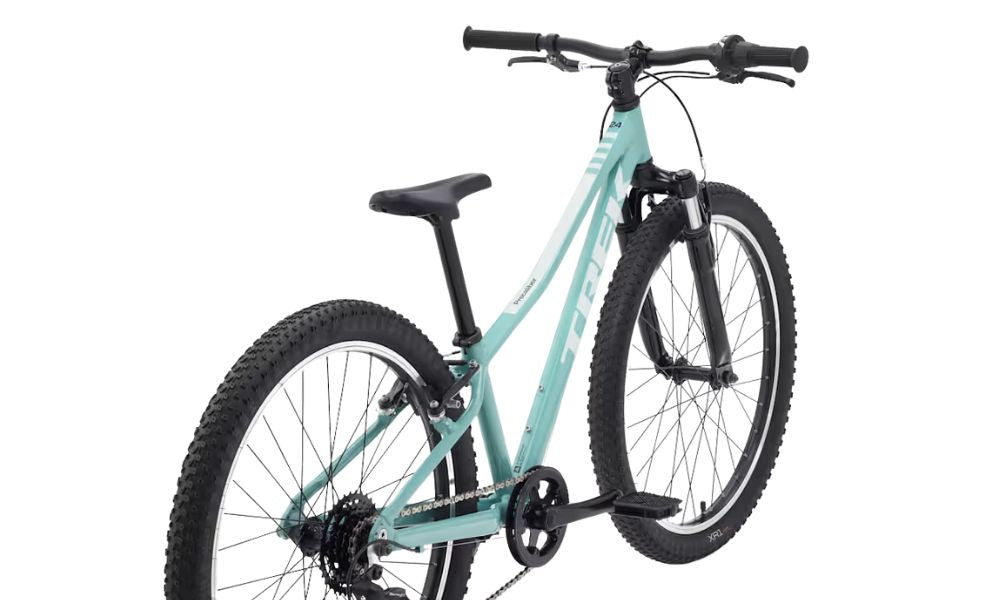

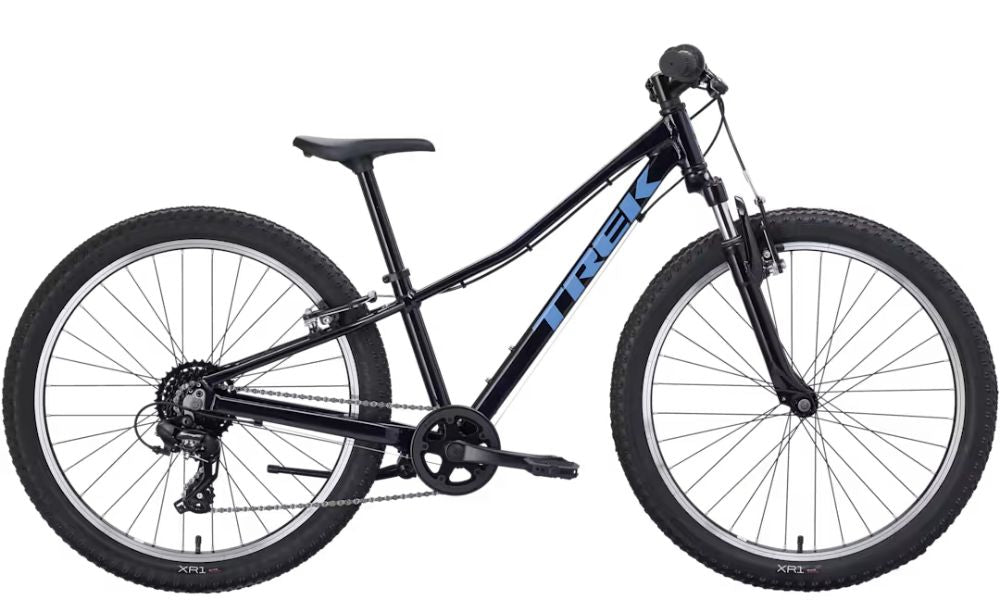

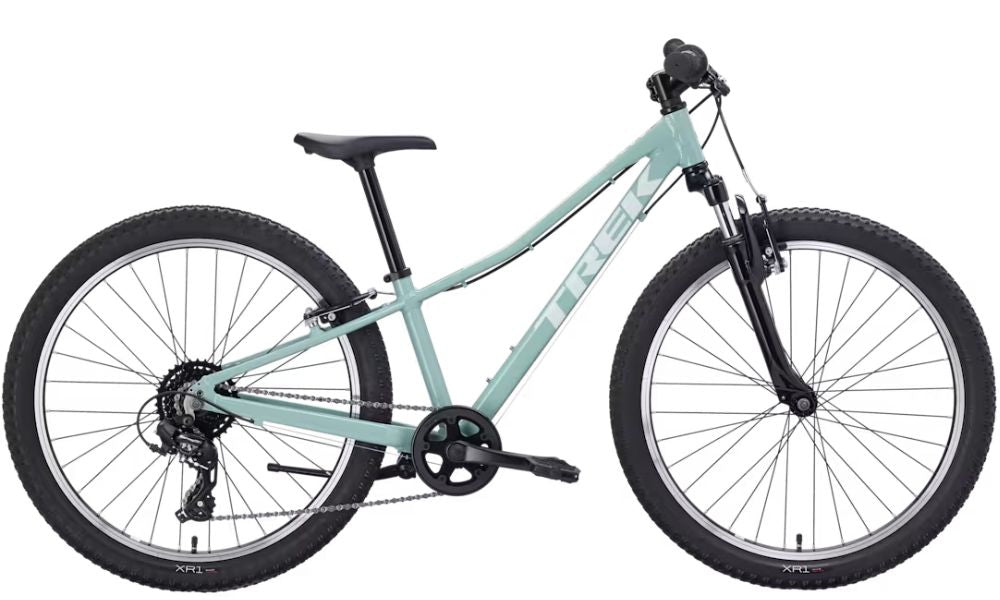

Trek 2027 Precaliber 24 Suspension
Precaliber 24 8-Speed Suspension is a versatile kids' bike built for young adventurers who love riding off the the road and into the dirt. Its sturdy yet light aluminum frame, suspension fork, and 8 gears make it perfect for racing home from school, zipping through the woods, and riding trails and paths with family. For kids aged 8-12, between 129.5 - 149.8 cm (51-59˝) tall.
Trek 2027 Precaliber 24 Suspenison
Frame
Size: 24
Colour: Lavender Haze, Marianas Blue and Blue Sage
Frame: Alpha Silver aluminium, rack and kickstand mounts, replaceable derailleur hangar, 135x5 mm QR
Fork: Kids' suspension, threadless steerer, 45 mm travel
Shock:
Drivetrain
Crankset: ProWheel alloy, 32T steel ring w/double guard, 152 mm length
Pedals: Kids' Satellite, 9/16 thread
Chain: KMC Z8.3
Bottom Bracket: Square taper, 68 mm, sealed cartridge
Rear Derailleur: Shimano Tourney TX80
Front Derailleur:
Derailleur Shifter: Shimano Tourney TX Revoshift 8-speed twist w/optical gear display
Freewheel/Cassette: Freewheel, 13-34, 8 speed
Braking System
Brakes: Alloy linear-pull
Brake Levers: Kids', alloy
Wheels
Tyres: Bontrager XR1, wire bead, 27 tpi, 24x2.25"
Wheels/Rims: 24" 32-hole alloy
Hubs: [F] Steel, 100 mm bolt-on [R] Steel
Other

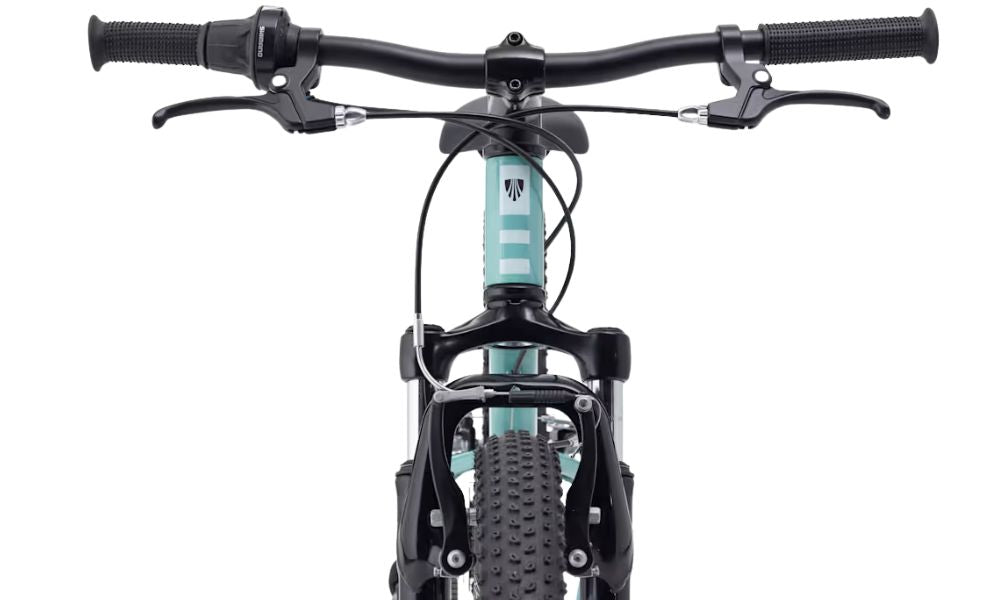

Handlebar: Kids' steel, 25.4 mm clamp, 40 mm rise, 560 mm width
Stem: Bontrager Approved alloy, 25.4 mm clamp, 15-degree rise, 60 mm
Seat Post:

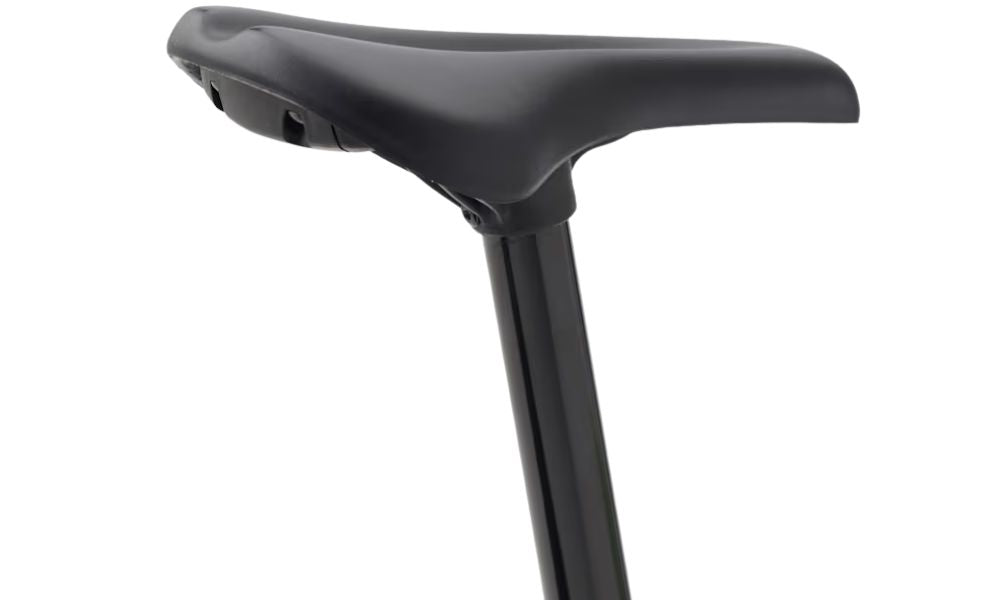

Saddle: Kids' 24'' size, padded
Trek 2027 Precaliber 24 Suspension
Sizing
| Size | Rider Height |
|---|---|
| 12" wheel |
86 - 102 cm 2'10" - 3'4" |
| 16" wheel |
99 - 117 cm 3'3" - 3'10" |
| 20" wheel |
114 - 132 cm 3'9" - 4'4" |
| 24" wheel |
130 - 150 cm 4'3" - 4'11" |
| 26" wheel |
146 - 160 cm 4'9" - 5'3" |
All measurements provided in cm unless otherwise stated.
| Frame size number | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 24" kids' | 30.0 | 72.0° | 9.0 | 70.0° | 52.9 | 24.7 | 7.3 | 42.0 | 4.5 | 7.8 | 97.6 | 56.8 | 35.3 | 54.1 |
