Trek 2027 Rail+ 8 Gen 5
Rail+ 8 is an aluminum enduro e-bike with big power and plenty of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminum frame paired with a RockShox Super Deluxe shock and Lyrik fork to tackle chunky backcountry rock gardens. A SRAM Eagle drivetrain delivers smooth shifting, while Shimano MT620 4-piston brakes, a Bontrager Line dropper post, and tubeless-ready Line TLR 30 wheels round out the build.
Trek 2027 Rail+ 8 Gen 5
Frame
Size: S, M, L, XL

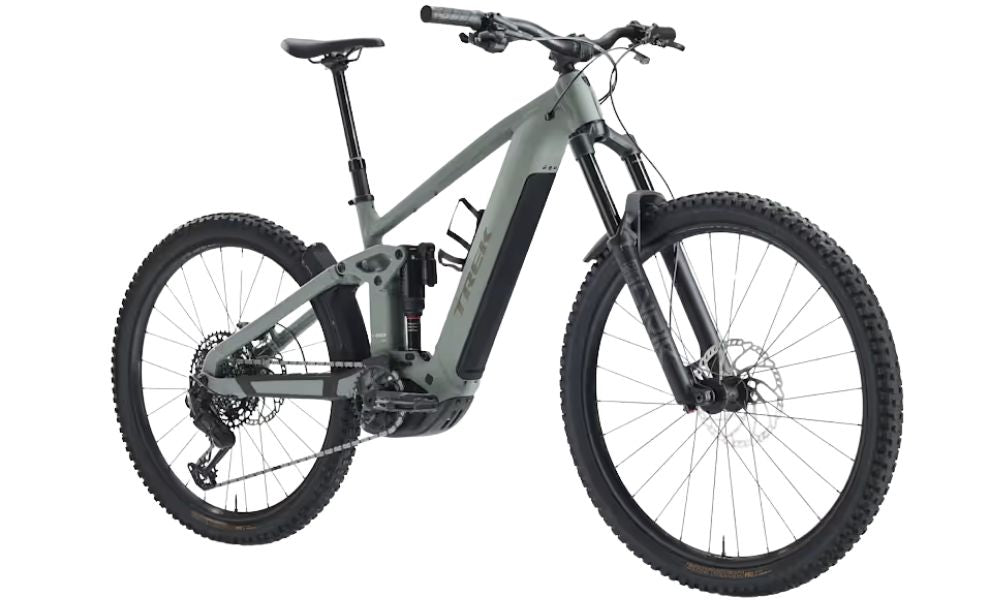

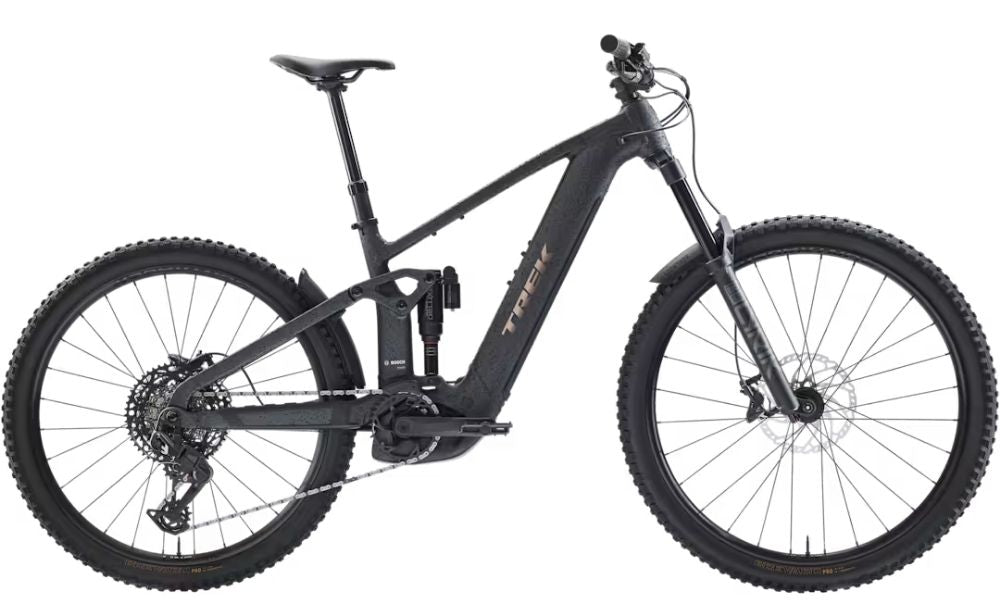

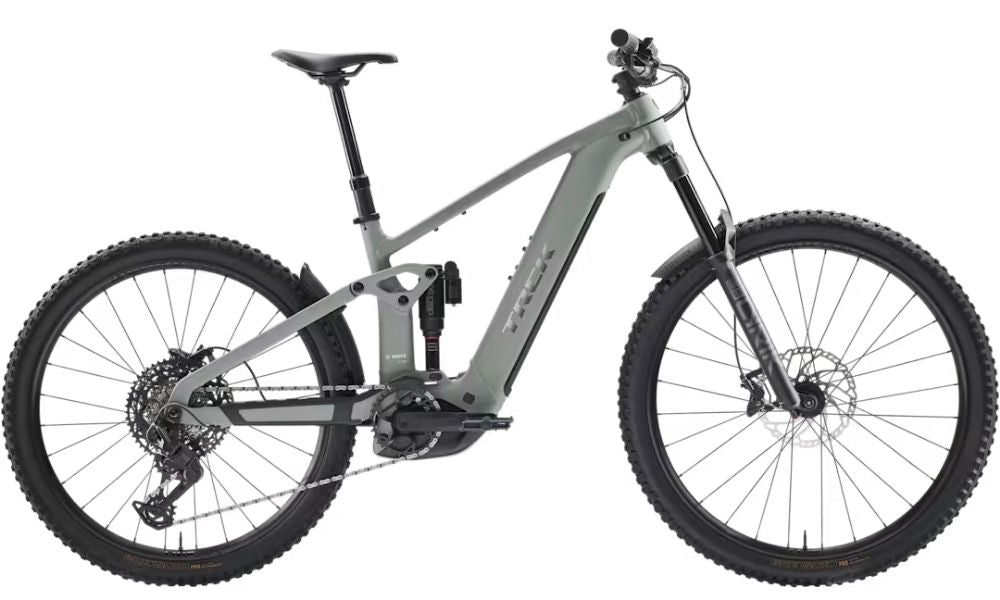

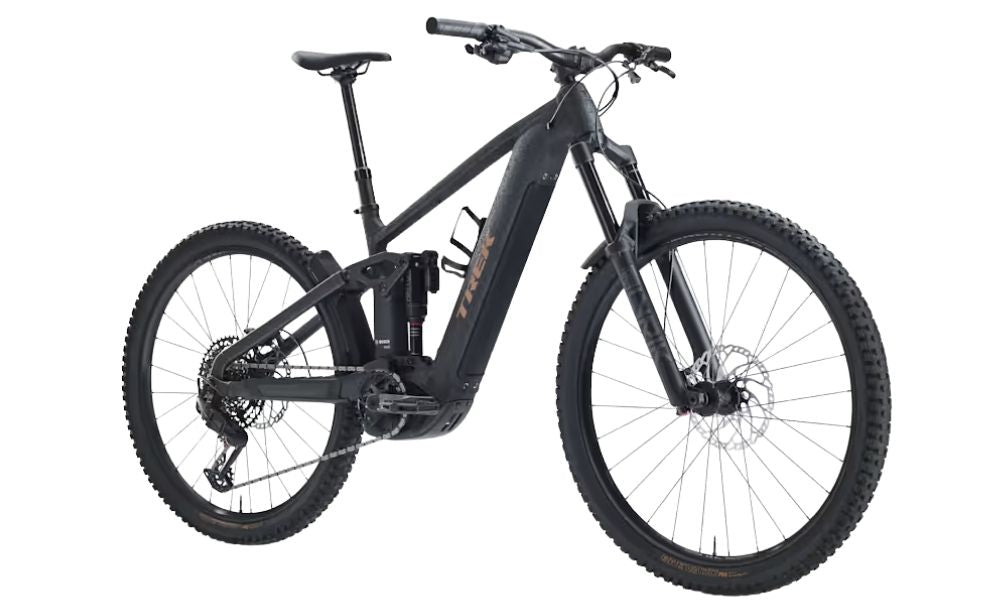

Colour: Desert Sage/Brushed Chrome or Lithium/Gloss Black Splatter
Frame: Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel

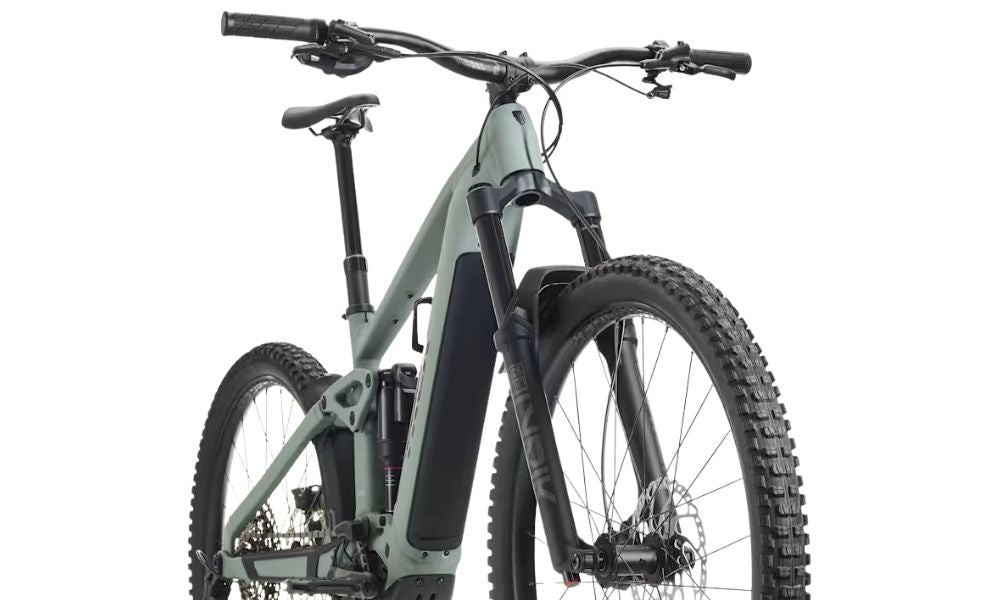

Fork: RockShox Lyrik, Delta RC, DebonAir+, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel

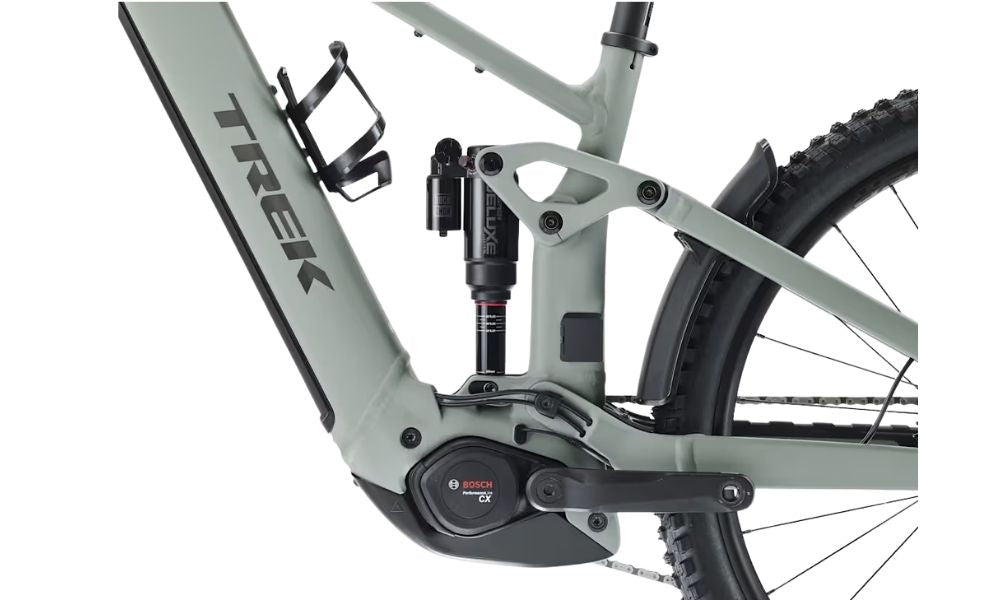

Shock: RockShox Super Deluxe, Linear XL, 205 mm x 65 mm
Drivetrain
Crankset: FSA alloy, 160 mm length
Pedals:
Chain: SRAM Eagle 70, T-Type, 12-speed
Bottom Bracket:
Rear Derailleur: SRAM Eagle 70, T-Type
Front Derailleur:
Derailleur Shifter: SRAM Eagle 70, 12-speed
Freewheel/Cassette: SRAM Eagle XS-1270, T-Type,10-52, 12-speed
Braking System
Brakes: Shimano MT620 hydraulic disc
Brake Levers:
Wheels
Tyres: S: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" M, L, XL: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Wheels/Rims: Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Hubs: [F] Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle [R] Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle
Other
Handlebar:
Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
Seat Post: S: Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length M: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length L, XL: Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Saddle: Bontrager Verse P3, steel rails
E-Bike
Drive Unit: Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h)
Battery: Bosch PowerTube 800 Wh, smart system

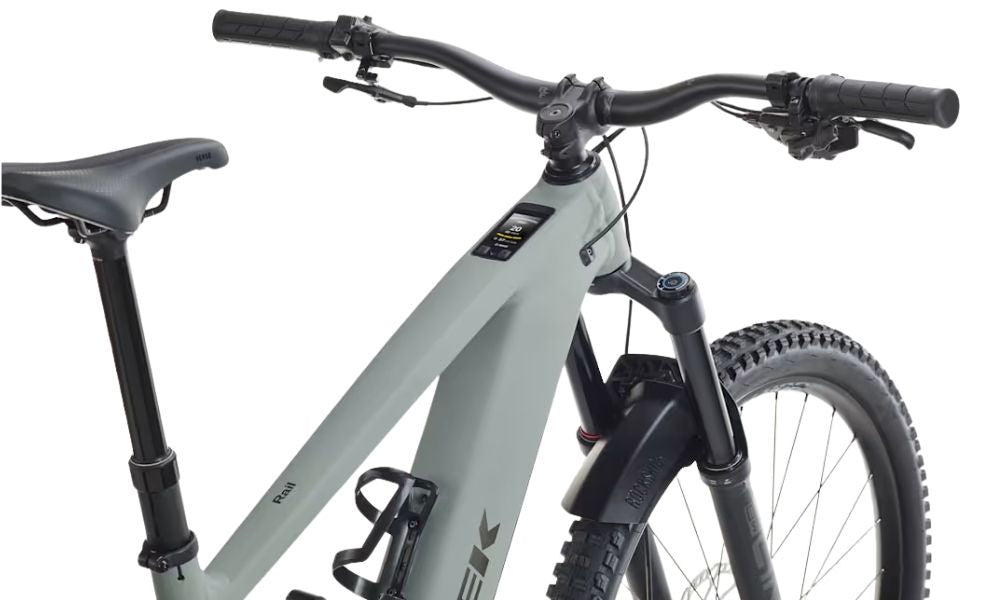

Display: Bosch Kiox 400C, mini remote
UI/Remote: Bosch Kiox 400C, mini remote
Charger: Bosch standard 4A, 230V, smart system
Extras
Lights: [F] [R]
Kickstand:
Mudguards: Trek custom mudguard
Rear Rack:
Trek 2027 Rail+ 8 Gen 5
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Geometry position | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Front centre |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5" | S | High | 27.5" | 38.0 | 75.3° | 77.9° | 10.0 | 65.0° | 56.2 | 34.5 | 1.2 | 44.6 | 4.3 | 11.9 | 120.1 | 76.7 | 43.5 | 59.4 | 75.4 |
| 15.5" | S | Low | 27.5" | 38.0 | 74.8° | 77.4° | 10.0 | 64.5° | 56.3 | 33.9 | 1.8 | 44.8 | 4.3 | 12.2 | 120.2 | 76.2 | 43.0 | 59.8 | 75.4 |
| 17.5" | M | High | 29"/27.5" | 41.0 | 75.3° | 77.7° | 10.0 | 65.0° | 59.1 | 34.5 | 1.8 | 44.6 | 4.3 | 12.7 | 122.9 | 78.4 | 45.5 | 62.7 | 78.3 |
| 17.5" | M | Low | 29"/27.5" | 41.0 | 74.8° | 77.2° | 10.0 | 64.5° | 59.2 | 33.9 | 2.4 | 44.8 | 4.3 | 13.1 | 123.0 | 77.8 | 45.0 | 63.1 | 78.3 |
| 19.5" | L | High | 29"/27.5" | 43.5 | 75.2° | 77.5° | 12.0 | 65.0° | 63.8 | 34.5 | 1.7 | 44.6 | 4.3 | 12.7 | 127.7 | 78.5 | 49.5 | 64.5 | 83.1 |
| 19.5" | L | Low | 29"/27.5" | 43.5 | 74.8° | 77.0° | 12.0 | 64.5° | 63.9 | 33.9 | 2.4 | 44.8 | 4.3 | 13.1 | 127.8 | 76.9 | 49.0 | 64.9 | 83.1 |
| 21.5" | XL | High | 29"/27.5" | 47.0 | 75.2° | 77.4° | 14.5 | 64.9° | 66.9 | 34.5 | 1.7 | 44.6 | 4.3 | 12.7 | 131.3 | 80.4 | 52.0 | 66.8 | 86.7 |
| 21.5" | XL | Low | 29"/27.5" | 47.0 | 74.8° | 76.9° | 14.5 | 64.5° | 67.0 | 33.9 | 2.4 | 44.8 | 4.3 | 13.1 | 131.4 | 77.9 | 51.5 | 67.2 | 86 |
