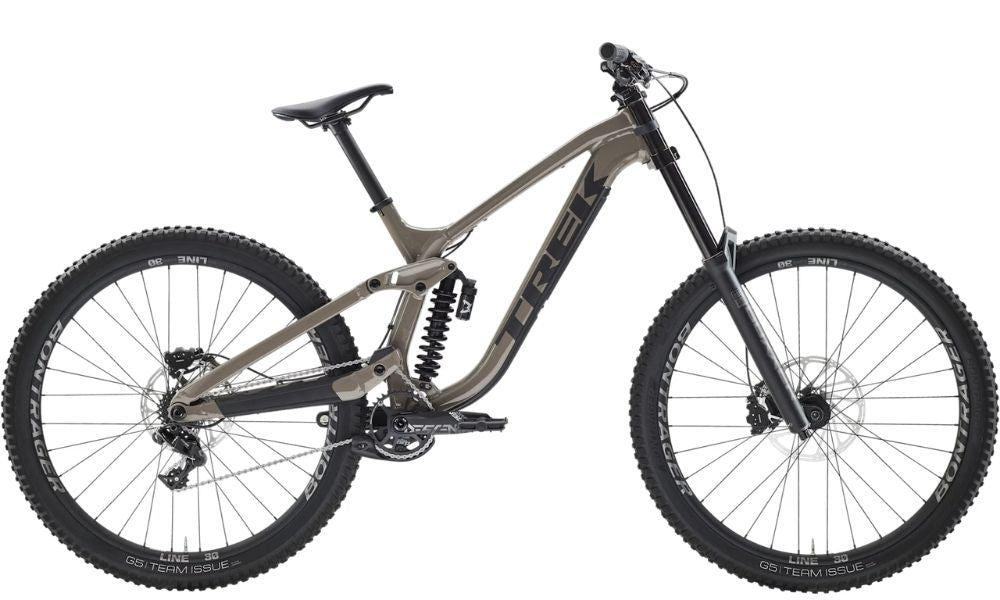

Trek 2027 Session 8 29
Session 8 is a downhill mountain bike built to charge the steepest, roughest tracks at full speed. Its burly Alpha Platinum Aluminum frame features a high-pivot suspension design with 200mm of travel to keep you planted, composed, and carrying momentum through brutal rock gardens and blown-out berms. A RockShox Boxxer Select fork and Marzocchi Bomber shock smooth the chaos, while SRAM Maven Bronze brakes and a GX DH 7-speed drivetrain deliver precise control when every second counts.
Trek 2027 Session 8 29
Frame
Size: R1, R2, R3
Colour: Wild Mushroom
Frame: Alpha Platinum Aluminium, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12 mm thru-axle, 200 mm travel
Fork: RockShox Boxxer Select, DebonAir+ spring, Charger 3.2 RC damper, 52mm offset, BoostDH 110x20 Maxle Stealth, 200mm travel
Shock: R1: Marzocchi Bomber, 181 kg/400 lb spring, 250 mm x 72.5 mm R2: Marzocchi Bomber, 204 kg/450 lb spring, 250 mm x 72.5 mm R3: Marzocchi Bomber, 227 kg/500 lb spring, 250 mm x 72.5 mm
Drivetrain
Crankset: Truvativ Descendant DH, DUB 83, 34-T steel ring, 165 mm length
Pedals:
Chain: SRAM PC-1110, 11-speed
Bottom Bracket: SRAM DUB, 83 mm, BSA threaded
Rear Derailleur: SRAM GX DH, medium cage
Front Derailleur:
Derailleur Shifter: SRAM GX DH, 7-speed
Freewheel/Cassette: SRAM PG-720, 11-25, 7-speed
Braking System
Brakes: SRAM Maven Bronze 4-piston hydraulic disc
Brake Levers:
Wheels
Tyres: Bontrager G5 Team Issue, wire bead, 2-ply 60 tpi, 29x2.50"
Wheels/Rims: [F] Bontrager Line DH 30, Tubeless Ready, 6-bolt, 110x20 mm Boost thru axle, 29" [R] Bontrager Line DH 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano 7 speed freehub, 157x12 mm thru axle, 29"
Hubs: [F] [R]
Other
Handlebar: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Stem: Bontrager Line Pro, 35 mm, Direct Mount, 50 mm length
Seat Post: Bontrager Rhythm Elite, 31.6 mm, 0 mm offset, 330 mm length
Saddle: Verse Short Comp, steel rails, 145 mm widt
Trek 2027 Session 8 29
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| R1 |
161 - 175 cm 5'3" - 5'9" |
76 - 82 cm 30" - 32" |
| R2 |
174 - 188 cm 5'9" - 6'2" |
82 - 88 cm 32" - 35" |
| R3 |
186 - 196 cm 6'1" - 6'5" |
87 - 92 cm 34" - 36" |
All measurements provided in cm unless otherwise stated.

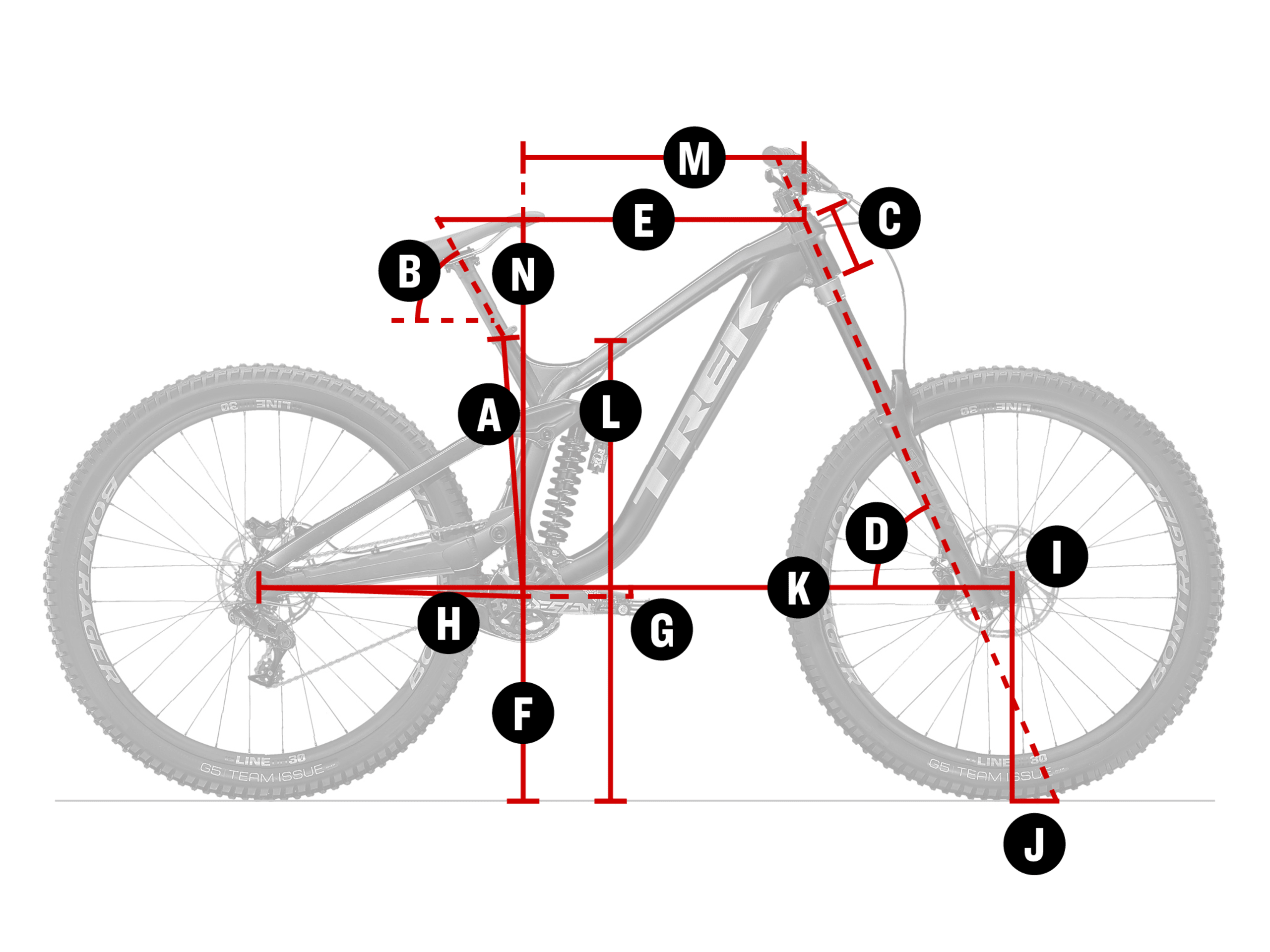

| Frame size letter | Geometry position | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1 | High | 29" | 42.5 | 61.6° | 77.1° | 11.7 | 63.6° | 58.6 | 35.9 | 1.2 | 43.5 | 4.6 | 13.1 | 124.3 | 75.5 | 44.7 | 63.4 |
| R1 | Low | 29" | 42.5 | 61.0° | 76.5° | 11.7 | 63.0° | 58.7 | 35.0 | 2.1 | 43.9 | 4.6 | 13.6 | 124.6 | 74.7 | 44.0 | 63.9 |
| R2 | High | 29" | 42.5 | 61.6° | 77.1° | 11.7 | 63.6° | 61.7 | 35.9 | 1.2 | 44.1 | 4.6 | 13.1 | 127.4 | 75.9 | 47.2 | 63.4 |
| R2 | Low | 29" | 42.5 | 61.0° | 76.5° | 11.7 | 63.0° | 61.8 | 35.0 | 2.1 | 44.5 | 4.6 | 13.6 | 127.7 | 75.1 | 46.5 | 63.9 |
| R3 | High | 29" | 42.5 | 61.6° | 77.1° | 11.7 | 63.6° | 65.2 | 35.9 | 1.2 | 44.8 | 4.6 | 13.2 | 130.9 | 75.7 | 49.9 | 63.4 |
| R3 | Low | 29" | 42.5 | 61.0° | 76.5° | 11.7 | 63.0° | 65.3 | 35.0 | 2.1 | 45.2 | 4.6 | 13.6 | 131.2 | 74.9 | 49.3 | 63.9 |
