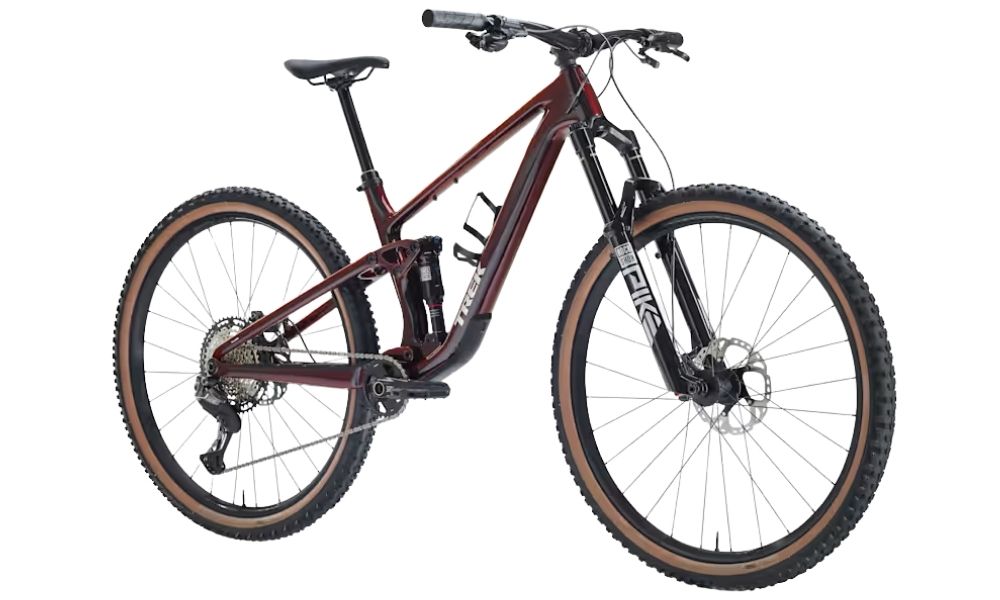

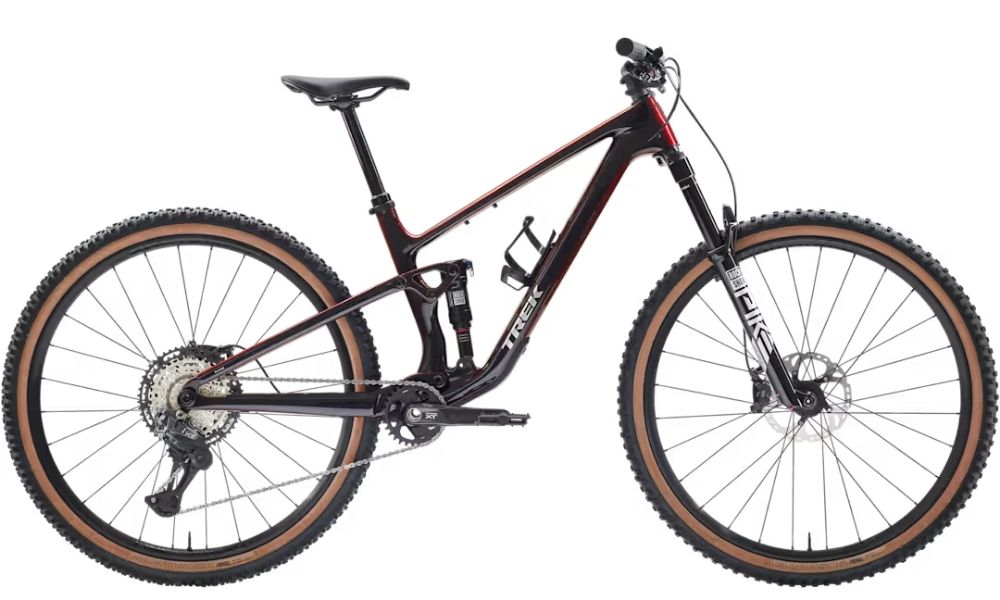

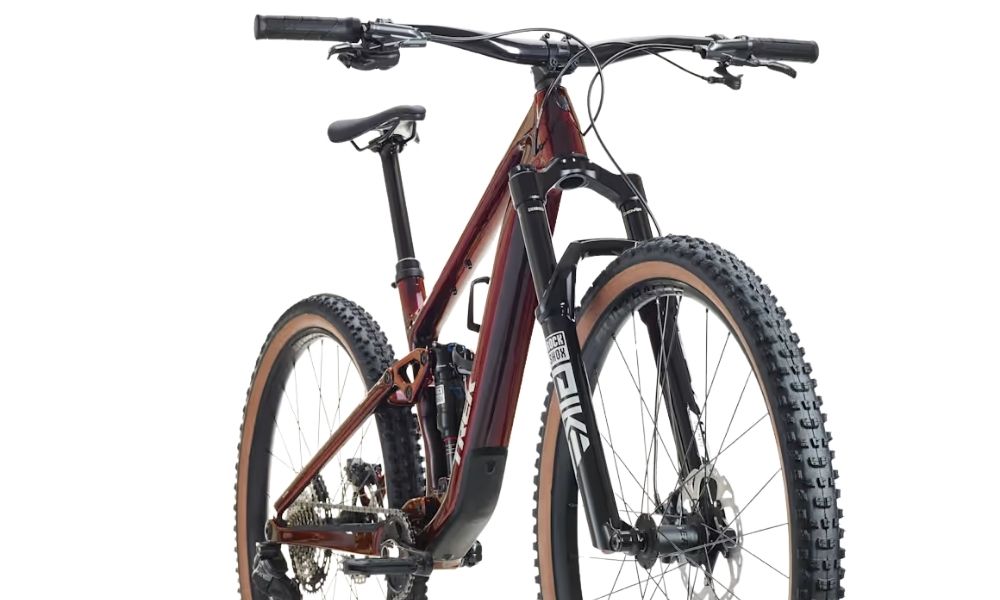

Trek 2027 Top Fuel 9.8 Gen 4
The Top Fuel 9.8 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks, thanks to a 130mm/140mm RockShox suspension package with a Pike Ultimate fork and Deluxe Ultimate shock. Plus, you can shift easy even under load with a Shimano XT Di2 wireless drivetrain.
Trek 2027 Top Fuel 9.8 Gen 4
Frame
Size: S, M, ML, L, XL
Colour: Red Serpentine
Frame: OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120 mm - 130 mm travel
Fork: RockShox Pike Ultimate, DebonAir+, Charger 3.1 RC2 damper, tapered steerer tube, 44 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel

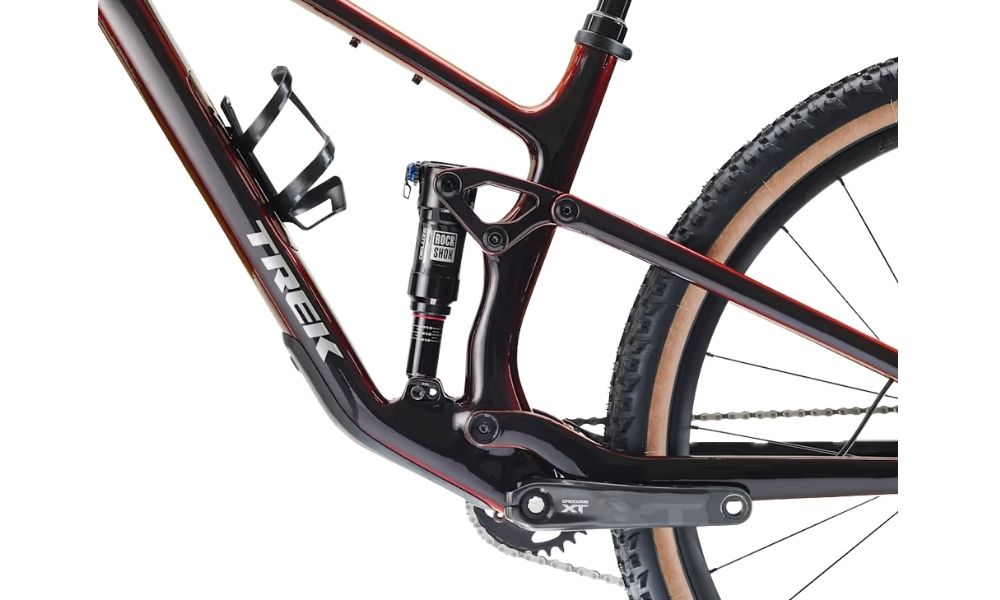

Shock: RockShox Deluxe Ultimate RCT, 185 mm x 55 mm
Drivetrain
Crankset: Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length
Pedals:
Chain: Shimano Ultegra/XT M8100
Bottom Bracket: Shimano BB-MT501 BSA
Rear Derailleur: Shimano XT M8250, long cage
Front Derailleur:
Derailleur Shifter: Shimano XT Di2 M8250, 12-speed
Freewheel/Cassette: Shimano XT M8200, 10-51, 12-speed
Braking System
Brakes: Shimano XT M8220 4-piston hydraulic disc
Brake Levers:
Wheels
Tyres: S: Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40" M, ML, L, XL: Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
Wheels/Rims: [F] S: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5" M, ML, L, XL: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" [R] S: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 27.5" M, ML, L, XL: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 29"
Hubs: [F] [R]
Other

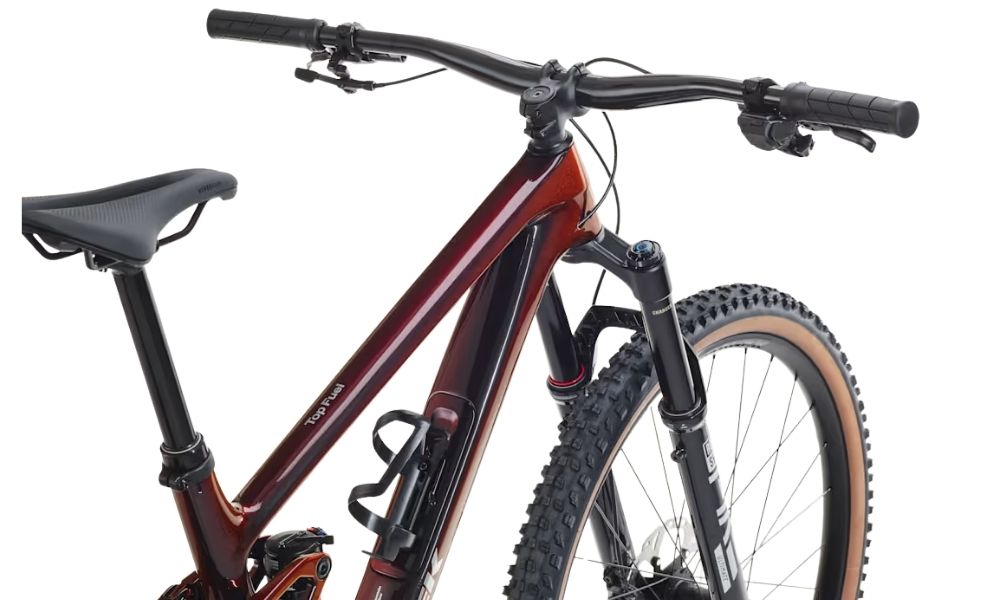

Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Stem: Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length
Seat Post: S: Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length M, ML: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length L, XL: Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Saddle: Verse Short Comp, steel rails, 145 mm width
Trek 2027 Top Fuel 9.8 Gen 4
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| ML |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
All measurements provided in cm unless otherwise stated.

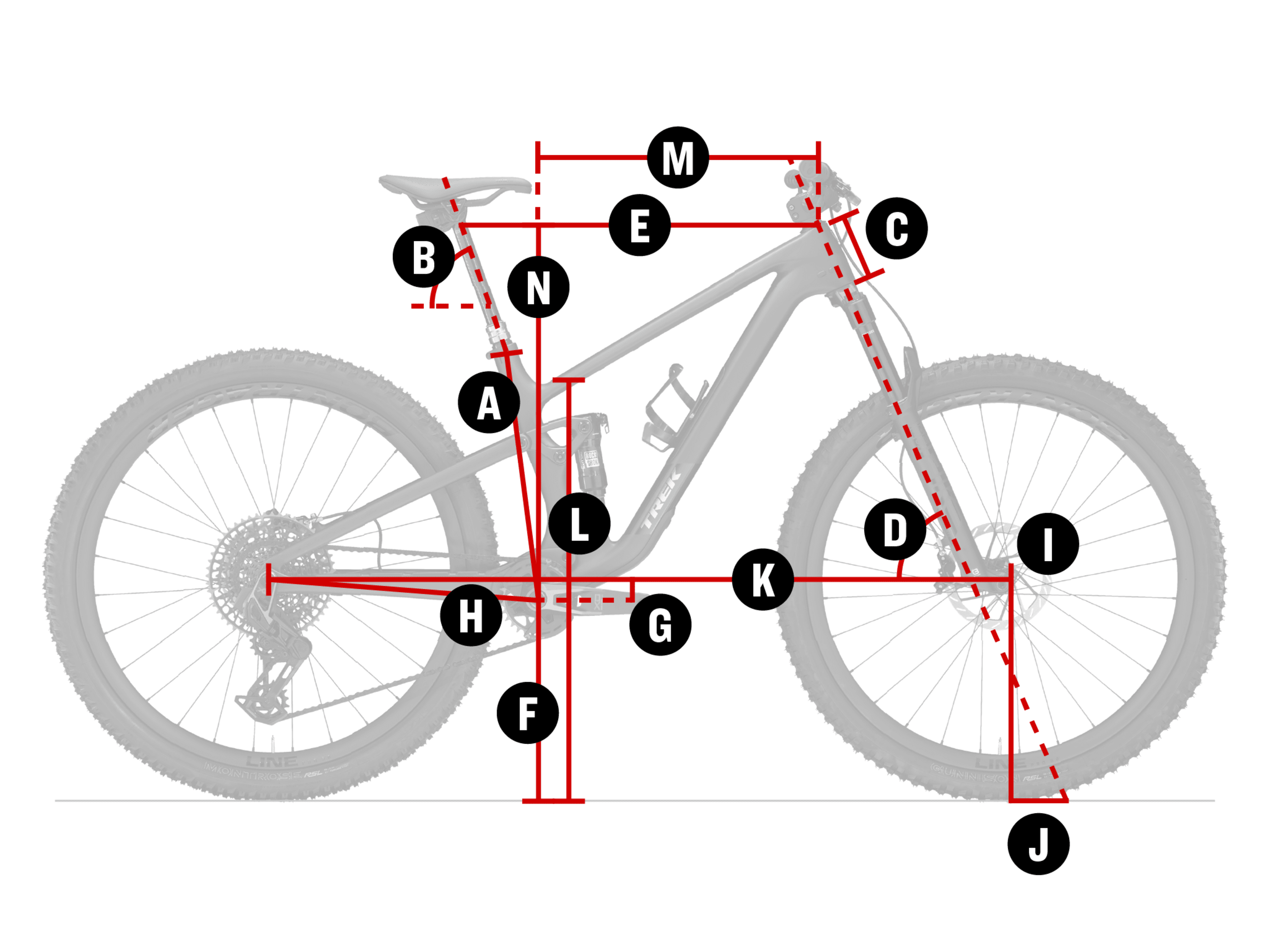

| Frame size letter | Geometry position | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Front centre |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | High | 27.5" | 36.0 | 69.0° | 76.0° | 10.5 | 65.5° | 55.9 | 35.1 | 0.7 | 43.4 | 4.3 | 11.6 | 115.4 | 70.9 | 41.7 | 57.0 | 72.1 |
| S | Low | 27.5" | 36.0 | 68.5° | 75.5° | 10.5 | 65.0° | 56.0 | 34.5 | 1.3 | 43.5 | 4.3 | 11.9 | 115.5 | 70.4 | 41.3 | 57.3 | 72.1 |
| M | High | 29" | 41.0 | 70.0° | 76.9° | 10.5 | 65.5° | 58.8 | 35.4 | 2.3 | 43.4 | 4.3 | 12.4 | 119.2 | 75.9 | 44.7 | 60.3 | 75.9 |
| M | Low | 29" | 41.0 | 69.6° | 76.4° | 10.5 | 65.1° | 58.9 | 34.8 | 2.9 | 43.5 | 4.3 | 12.8 | 119.2 | 75.4 | 44.2 | 60.6 | 75.9 |
| ML | High | 29" | 42.0 | 70.0° | 76.2° | 11.0 | 65.5° | 61.2 | 35.4 | 2.3 | 43.9 | 4.3 | 12.4 | 121.4 | 76.1 | 46.2 | 60.7 | 77.6 |
| ML | Low | 29" | 42.0 | 69.6° | 75.7° | 11.0 | 65.1° | 61.3 | 34.8 | 2.9 | 44.0 | 4.3 | 12.8 | 121.5 | 75.6 | 45.7 | 61.1 | 77.6 |
| L | High | 29" | 43.5 | 70.0° | 75.9° | 11.5 | 65.5° | 63.1 | 35.4 | 2.3 | 43.9 | 4.3 | 12.4 | 123.1 | 76.2 | 47.7 | 61.2 | 79.3 |
| L | Low | 29" | 43.5 | 69.6° | 75.5° | 11.5 | 65.1° | 63.2 | 34.8 | 2.9 | 44.0 | 4.3 | 12.8 | 123.2 | 75.7 | 47.2 | 61.6 | 79.3 |
| XL | High | 29" | 47.0 | 70.0° | 75.2° | 13.5 | 65.5° | 67.3 | 35.4 | 2.3 | 44.4 | 4.3 | 12.4 | 127.4 | 76.7 | 50.7 | 63.0 | 83.1 |
