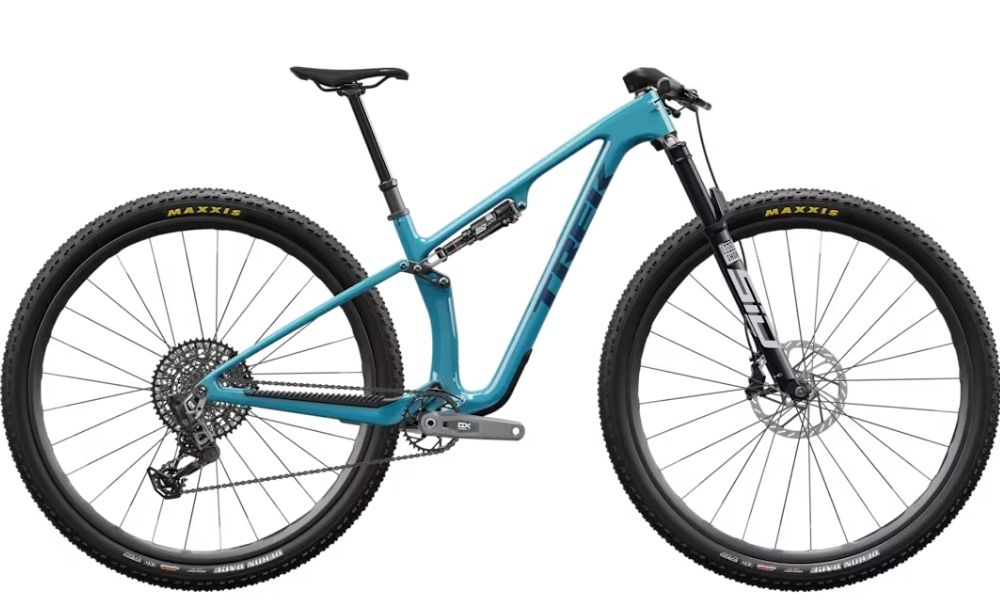

Trek 2028 Superfly 32 SLR 9.7
Superfly 32 SLR 9.7 is a full-suspension XC race bike built to carry more speed through rough terrain. The combination of 32˝ wheels and 110mm of race-tuned rear suspension improves traction, control, and efficiency when the course gets demanding. A wireless SRAM GX Eagle AXS transmission, Bontrager Line Pro cockpit, and lightweight carbon chassis deliver a race-ready build that's ready to chase podiums.
Trek 2028 Superfly 32 SLR 9.7
Frame
Size: S, M, ML, L, XL
Colour: Laguna Blue
Frame: SLR OCLV Mountain Carbon, top tube storage mounts, alloy shock yoke & rocker link, flex stay, floating brake mount, UDH, Boost148, 110mm travel
Fork: RockShox SID Select+, Charger Race Day damper, DebonAir spring, 3-position remote, tapered steerer, 45mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Shock: RockShox SIDLuxe Select+, 3-position remote, 190x42.5mm
Drivetrain
Crankset: SRAM Eagle 90, DUB, 30T alloy, T-Type, 55mm chainline
Pedals:
Chain: SRAM GX Eagle, T-Type, 12 speed
Bottom Bracket: SRAM DUB MTB Wide, 73mm, BSA threaded
Rear Derailleur: SRAM GX Eagle AXS, T-Type
Front Derailleur:
Derailleur Shifter: SRAM AXS pod
Freewheel/Cassette: SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Braking System
Brakes: SRAM Motive Bronze 4-piston hydraulic disc
Brake Levers:
Wheels
Tyres: Maxxis Aspen, tubeless ready, MAXXSPEED, EXO casing, folding bead, 32x2.4"
Wheels/Rims: [F] Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 32" [R] Bontrager Kovee Comp 25, Tubeless Ready, SRAM XD freehub, 6-bolt, Boost148, 12mm thru axle, 32"
Hubs: [F] [R]
Other
Handlebar: Bontrager Comp, alloy, 31.8mm, 0mm rise
Stem: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree
Seat Post: Bontrager Line Dropper, MaxFlow, internal routing, 31.6mm
Saddle: Verse Short Elite, hollow magnesium rails
Trek 2028 Superfly 32S SLR 9.7
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| ML |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
All measurements provided in cm unless otherwise stated.

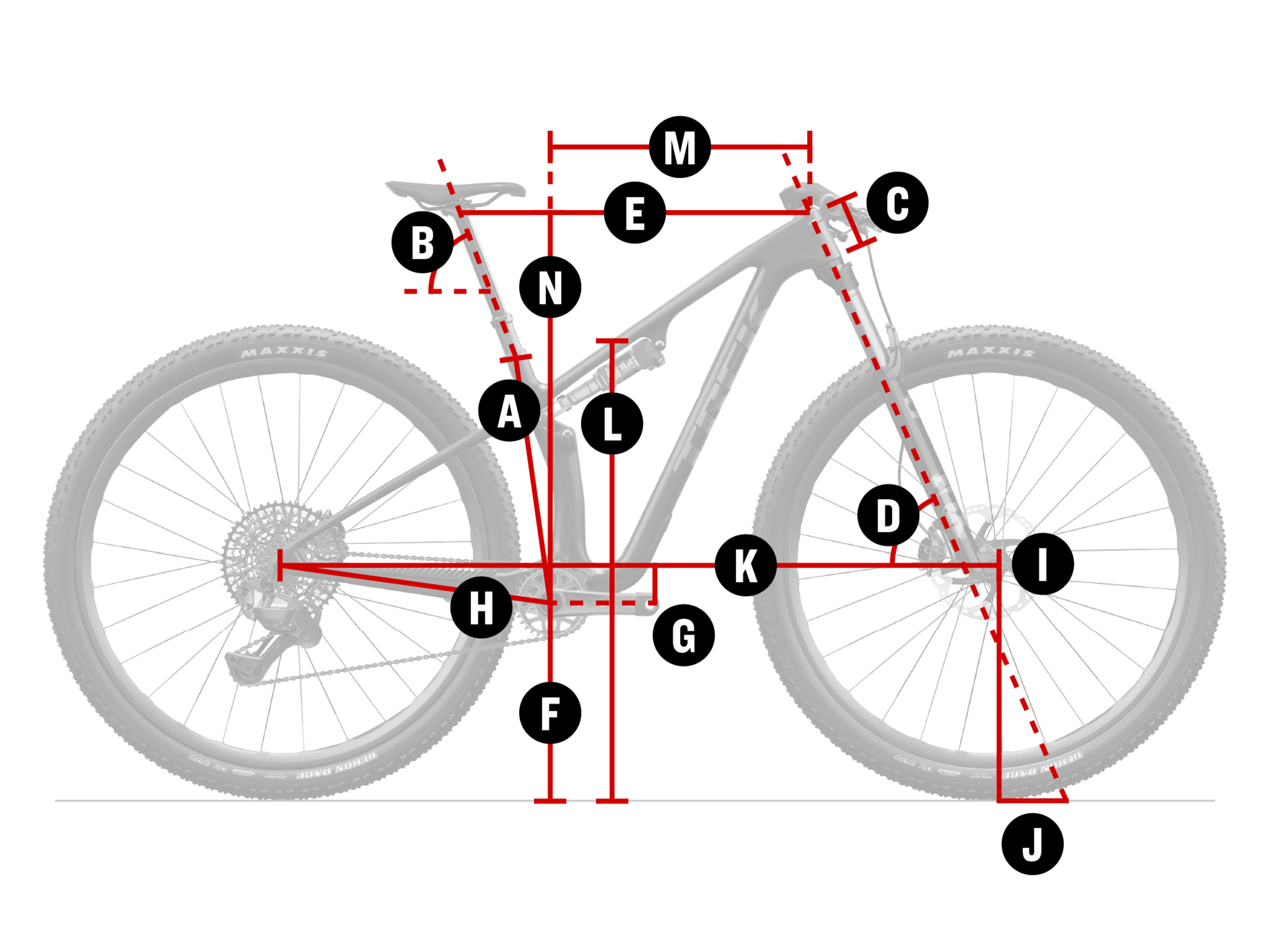

| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Front centre |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 32" | 40.0 | 68.5° | 76.7° | 8.5 | 66.7° | 56.6 | 33.4 | 7.3 | 46.4 | 4.4 | 12.7 | 116.4 | 76.5 | 41.5 | 63.8 | 71.0 |
| M | 32" | 43.0 | 69.0° | 76.8° | 9.0 | 66.7° | 59.4 | 33.7 | 7.0 | 46.4 | 4.4 | 12.7 | 119.9 | 77.5 | 44.0 | 65.8 | 74.4 |
| ML | 32" | 44.5 | 69.9° | 76.6° | 9.5 | 66.7° | 61.3 | 33.7 | 7.0 | 46.9 | 4.4 | 12.7 | 122.1 | 78.0 | 45.5 | 66.2 | 76.1 |
| L | 32" | 46.0 | 70.0° | 76.4° | 9.5 | 66.7° | 63.0 | 33.7 | 7.0 | 46.9 | 4.4 | 12.7 | 123.6 | 78.5 | 47.0 | 66.2 | 77.6 |
| XL | 32" | 48.5 | 70.5° | 76.4° | 12.0 | 66.7° | 66.6 | 33.7 | 7.0 | 47.4 | 4.4 | 12.7 | 128.1 | 79.0 | 50.0 | 68.5 | 81.6 |
