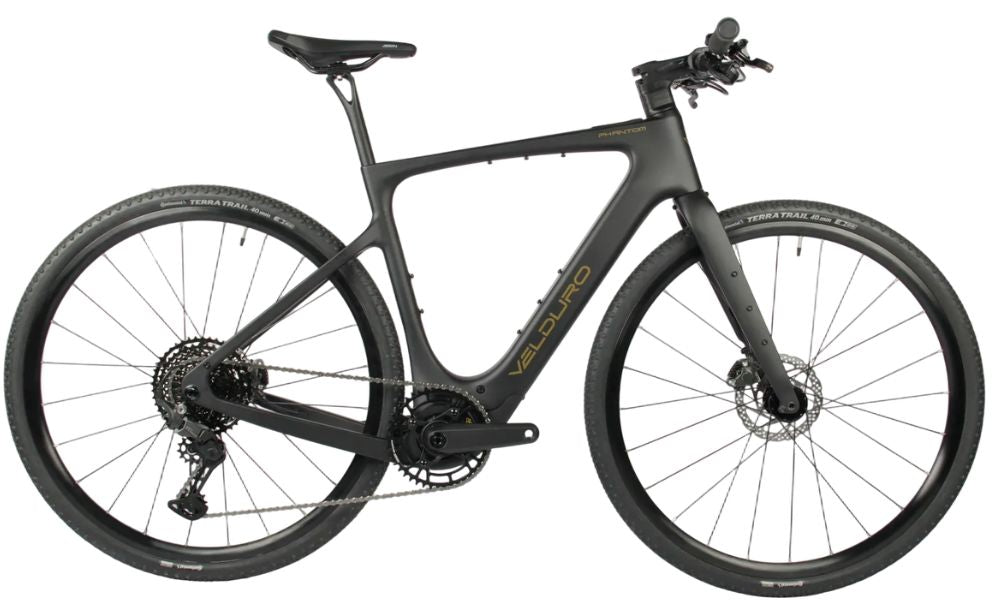

    Velduro 2027 Phantom S M2

    The Phantom S is the ultimate flat bar e-commuting and or adventure machine. Save on fuel and commute with the Phantom S With the same award-winning ultra-lightweight carbon frame as the Phantom X, this economically priced model is set to revolutionise your commute and weekend riding.

    • Carbon Fibre Monocoque Frame
    • Shimano Cues 11 Speed
    • 8 Mounting Points on Frame and 6 Mounting Points on Fork for Bike Packing
    • Warranty: Frame 5-Years | Avinox Drive System 2-Years

    Velduro 2027 Phantom S M2

    Frame

    Size: S, M, L, XL
    Colour: Carbon
    Frame: Carbon fiber, gravel catagery, battery integrated, inner cable routing, 12X142mm, 8 mounting points, rack compatible
    Fork: Carbon gravel fork, 6 mounting point 12X100mm , offset 50mm
    Shock:

    Drivetrain

    Crankset: Avinox SL 165mm
    Pedals:
    Chain: Shimano LG500 linkglide BLK
    Bottom Bracket:
    Rear Derailleur: Shimano Cues RD-U6000, 11-speed
    Front Derailleur:
    Shifter:
    Freewheel/Cassette: Shimano Cues LG400-11S 11-45T

    Braking System

    Brakes: Sram S300 hydraulic, two piston
    Brake Levers:

    Wheels

    Tyres: [F] and [R] Continental Terra Trail 700*45C BLK, with tube
    Wheels/Rims: 700C, Velduro alloy, BLK, 13G*24H, 25mm inner width, 25mm depth, with hook
    Hubs: [F] Velduro 2-bearings, BLK, 6-bolts, 13G*24H, 12x100mm [R] Velduro 4-bearings, BLK, 6-bolts, 13G*24H, 12x142mm, HG freehub

    Other

    Handlebar: Velduro alloy MTB straight, Dia31.8, width:680mm, BLK
    Stem: Velduro alloy MTB straight, Dia31.8, width:680mm, BLK
    Seat Post: Velduro carbon Dia27.2 380mm, BLK
    Saddle: Fizik terra aidon X5

    E-Bike

    Drive Unit: AVINOX M2 250W 120Nm, Boost to 125Nm, 1100W peak power
    Battery: AVINOX 36V 800Wh
    Display: AVINOX DP100
    UI/Remote:
    Charger: AVINOX 36V 600Wh

    Velduro 2027 Phantom S M2

    S M L XL
    A Seat Tube Length (mm) 466 486 506 526
    B Top Tube Horizontal (mm) 520 534 551 565
    C Top Tube Actual (mm) 495 515 534 548
    D Head Tube Angle (°) 70 70.5 71 71
    E Seat Tube Angle (°) 74.4 74.1 73.6 73.6
    F Standover (mm) 772 785 815 830
    G Head Tube Length (mm) 135 147 159 179
    H Wheelbase (mm) 1015 1019 1030 1040
    I Front Center (mm) 600 605 606 620
    J Chain Stay Length (mm) 425 425 430 430
    K Bottom Bracket Drop (mm) 72.5 72.5 72.5 72.5
    L Bottom Bracket Height (mm) 283 283 283 283
    M Fork Rake (mm) 50 50 50 50
    N Trail (mm) 64 63 63 63
    O Stack (mm) 554 567 581 600
    P Reach (mm) 366 372 377 385
    Q Axle to Crown (mm) 395 395 395 395
    Recommended Height 160-170 172-182 180-188 185-195
    *Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions
