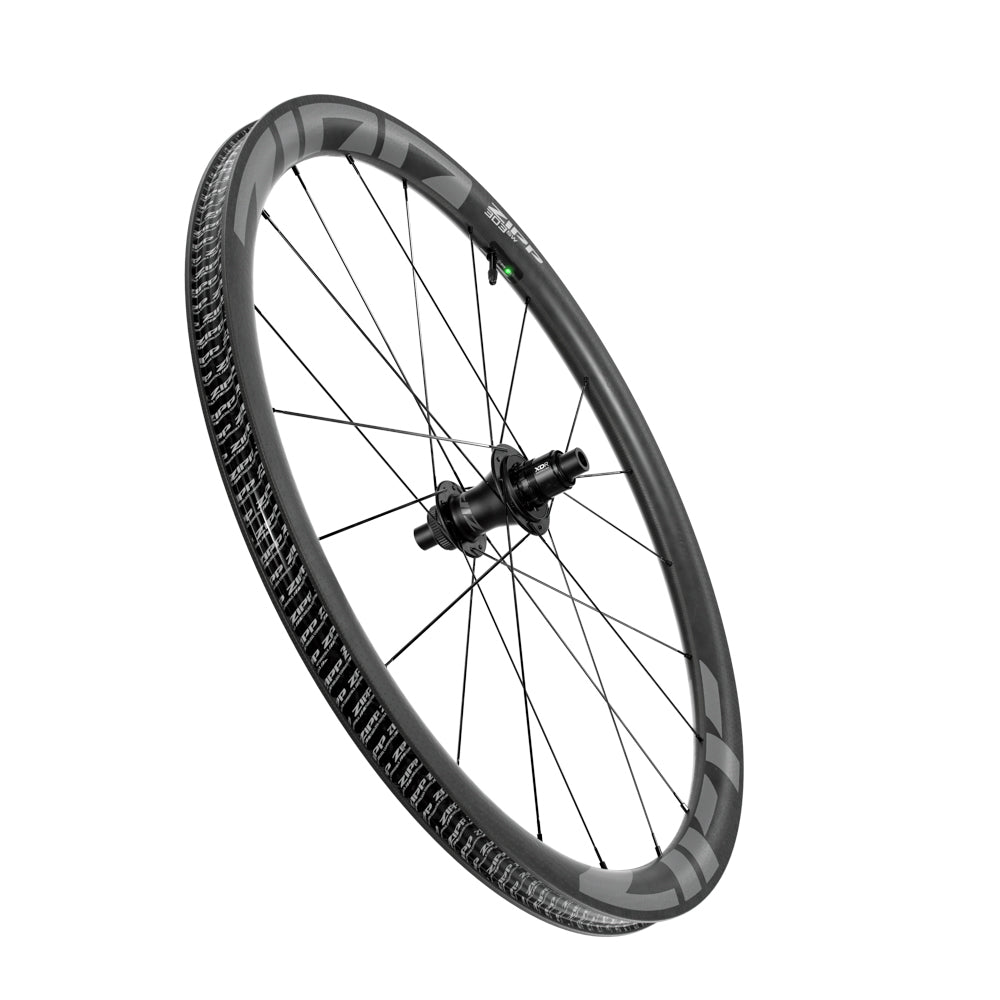

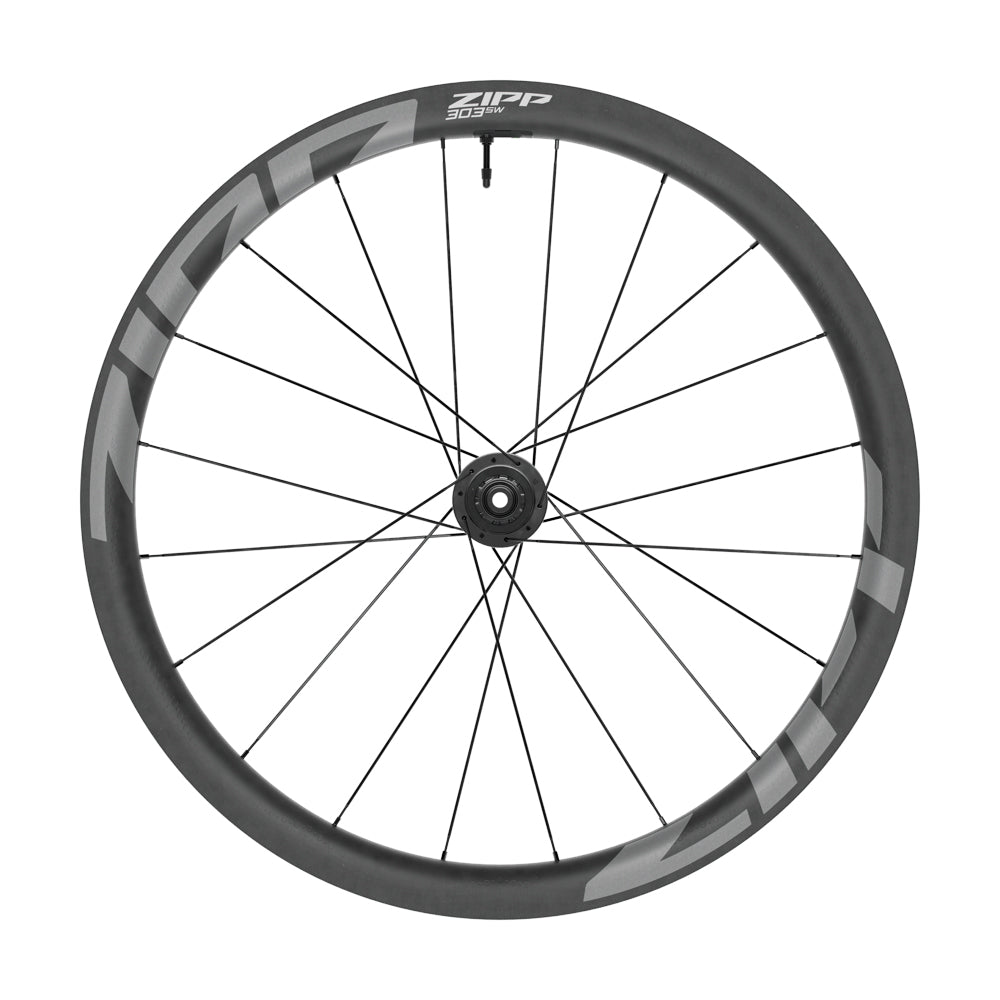

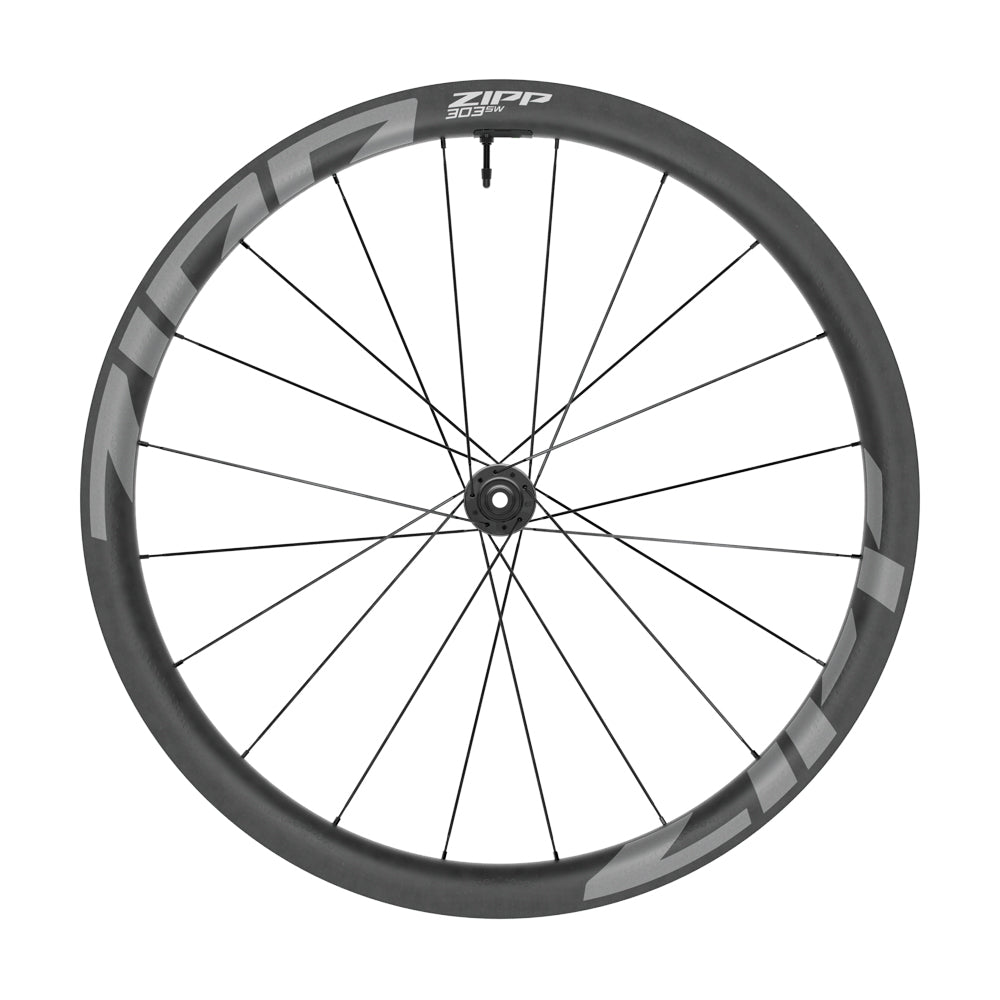

ZIPP 303 SW DISC BRAKE WHEEL
Zipp 303 SW offers performance on all roads with SRAM AXS-connected in-wheel tire pressure monitoring. Zipp’s 303 SW Tubeless Disc-brake wheelset offers superior speed on all roads, no matter the surface. Steeped in Zipp’s legacy of innovation, the 303 SW is a modern classic wheelset, fully capable of road, gravel, cobbles, and cyclocross riding. The 303 SW rim internally integrates the Zipp AXS Wheel Sensor for accurate on-bike tire-pressure monitoring. It allows you to monitor and analyze tire pressure in real-time without an external device mounted to the valve stem. Fine-tuning tire pressure helps riders optimize speed and performance in an ever-changing riding environment. Before you ride, check your pressure immediately; green light means good to go. During the ride, monitor pressure to dial in your ideal setting and detect issues early. The 303 SW’s 40mm deep rim design takes design cues from the gravel-specific 303 XPLR to utilize a wide rim design for high aero efficiency and low rolling resistance on a wide tire platform designed for modern riding at lower tire pressures. The rim’s profile provides low drag and an improved transition between rim and tire, boosting aerodynamic efficiency with wider tires. The wide-rim stance also features less tire deflection for reduced rolling resistance. Combining the wider tire, increased tire volume, and lower tire pressure helps reduce rider fatigue by smoothing out the ride over imperfect pavement and road conditions—the tire and wheel system absorbs the shaking, not the rider. A revised carbon layup and design also infused the already bombproof 303 SW with an almost 10 percent improvement in impact strength at a light weight. The 303 SW is optimized for tires 30 to 35mm in width. The 303 SW rims feature a refined shape that helps shield the tire in an impact that would otherwise cause a pinch flat. At the center of this is the ZR1 hubset, which now has stainless steel bearings for improved durability and smoother performance.
SPECIFICATIONS
| Size (wheels) |
700c |
| Rim construction |
Carbon – Hookless |
| Tire compatibility |
ISO/TSS Compatible tubeless tires (30-44c) tube or sealant |
| Rim depth |
40mm |
| Brake compatibility |
Disc (Center Lock) |
| Rim - inside width |
25mm |
| Rim profile |
Symmetrical |
| Rim finish |
UD fiber, adhesive decals |
| Nipple material |
Aluminum |
| Spoke type |
CX-Sprint |
| Spoke count |
20 |
| Spoke pattern |
2 Cross |
| Driver body type |
n/a, SRAM XDR, SRAM/Shimano Road |
| Axle type (Wheels) |
TA 12x100, TA 12x142 |
| Bearings |
Cartridge - Stainless Steel |
| Driver Mechanism |
6 Pawls, Compression Springs, n/a |
| Max tire pressure |
73psi/5.0bar |
| Max recommended system weight |
265lbs/120kg |
| Spoke Length DS |
272mm, 274mm |
| Spoke Length NDS |
276mm |
| Max outside width |
n/a |
| Weight (g) |
1440 |
| Weight Based On |
Lightest configuration: 12mm through axles and XDR body. Tape and valve included in weight. |
|
|
FEATURES
- Fully capable wheelset for modern road and multi-surface riders
- First integrated, connected SRAM AXS wheel with Zipp AXS Wheel Sensor; ability to use sensor with compatible tube
- ZR1 hubset with stainless steel bearings
- TSE for greater efficiency and reduced rolling resistance
- Optimized for 30 to 35mm tires
- Center locking rotor interface. Lockring is included with wheels.
- XDR or SRAM/Shimano driver bodies
- Campagnolo driver body sold separately
- Lifetime Warranty
|
