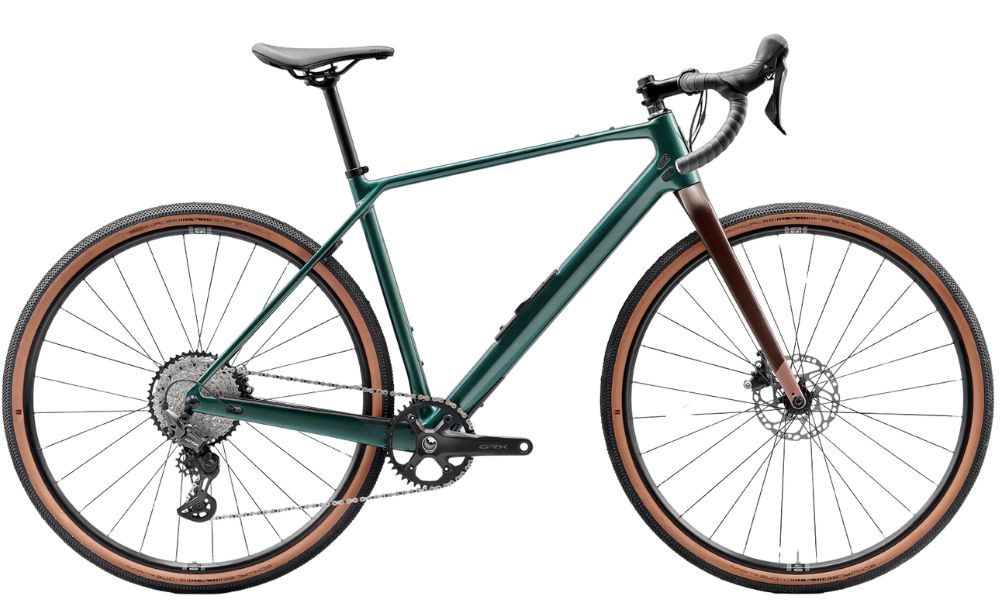

Norco 2025 Serach C GRX
Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search C GRX is ready for your next gravel adventure with modern gravel geo, a lightweight full carbon frame featuring Norco's proprietary downtube storage, tire clearance up to 50c, and full-coverage fender and toptube bag mounts.
A progressive, modern gravel bike.
Search C GRX features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.
The updated, longer fork adds stability and the new geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.
Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.
- Progressive and confidence-inspiring.
- Easy-Access Downtube Storage
- A lightweight frame with options.
- Updated features for easy wrenching.
- More traction, when you want it.
- Versatile mount options.
- No Other Way Limited Lifetime Warranty.
Norco 2025 Search C GRX
Frame
Size: S2, S3, S4
Colour: Green
Frame: Search Carbon w/ DT Storage, UDH Compatible
Fork: Search Carbon, 51mm Offset, 12x100mm TA
Shock:
Drivetrain
Crankset: Shimano GRX FC-RX610 40T, 47CL, 165mm (S1,S2) - 170mm (S3,S4) - 172.5mm (S5)
Pedals:
Chain: KMC X12
Bottom Bracket: Shimano BSA 68mm
Rear Derailleur: Shimano GRX RD-RX822, 10-45T, 12sp, GS
Front Derailleur:
Derailleur Shifter: Shimano GRX ST610, 12sp
Freewheel/Cassette: Shimano CS-M7100, 10-45T, 12sp
Braking System
Brakes: Shimano BR-RX400, Resin w/o Fin
Brake Levers:
Wheels
Tyres: Schwalbe G-One All Round, Race Guard, 700x45c
Wheels/Rims: WTB ST i25 2.0, 28h, 25mm ID
Hubs: [F] Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock [R] Shimano FH-TC500 Sealed Bearing, 12x142mm, Micro Spline, 28H, C-lock
Other
Handlebar: Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree
Stem: Norco SL Alloy 70mm Length, 31.8mm Clam
Seat Post: Norco Alloy, 27.2mm, 0Deg Offset, 350mm length
Saddle: Selle Royale SRX Gravel, 148mm
Norco 2025 Search C GRX
| 1 | 2 | 3 | 4 | 5 | ||
|---|---|---|---|---|---|---|
| Wheel Size | 700c | 700c | 700c | 700c | 700c | |
| Reach | 385 | 400 | 415 | 430 | 445 | |
| Stack | 554 | 564 | 587 | 611 | 634 | |
| HTA | Head Tube Angle | 69.5 | ||||
| OS | Fork Offset | 51 | ||||
| ST | Seat Tube Length | 440 | 475 | 510 | 545 | 580 |
| STA | Effective Seat Tube Angle | 74.5 | 74.25 | 74 | 73.75 | 73.5 |
| RC | Rear Centre Length | 425 | 427.5 | 430 | ||
| BB | Bottom Bracket Drop | 75 | ||||
| BBH | Bottom Bracket Height | 285 | ||||
| HTT | Horizontal Top Tube | 539 | 559 | 583 | 608 | 633 |
| WB | Wheelbase | 1037 | 1056 | 1082 | 1108 | 1132 |
| SOH | Standover | 691 | 725 | 758 | 791 | 824 |
| HT | Head Tube Length | 100 | 110 | 135 | 160 | 185 |
| Trail | 80 | |||||
| Maximum Post Insertion | 210 | 240 | 290 | |||
| Stem Length | 70 | |||||
| Crank Length | 165 | 170 | 172.5 | |||
| Tire Size | 40c — 50c | |||||
| Water Bottle Compatible | 3 x 750 mL | |||||
