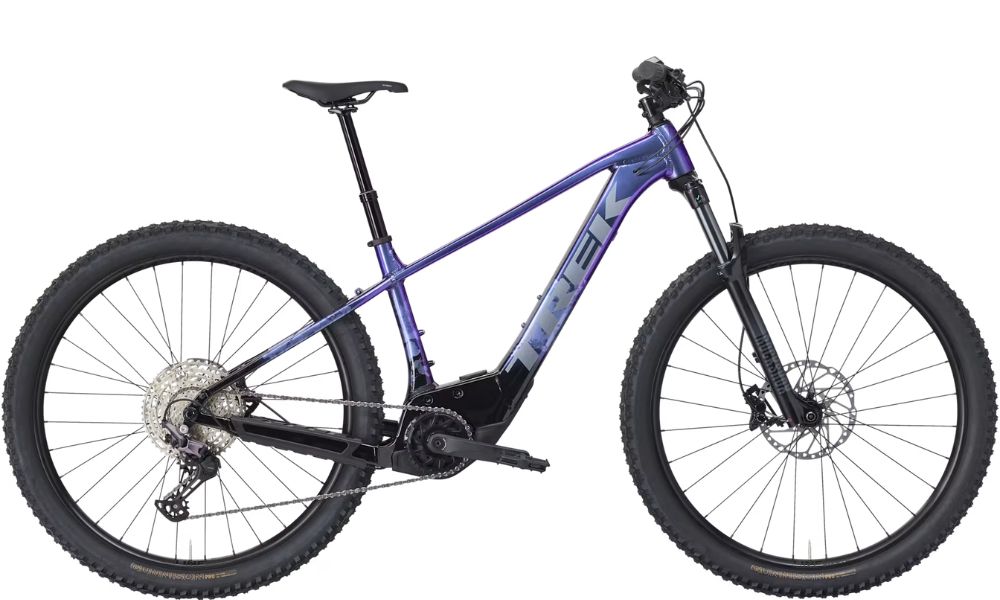

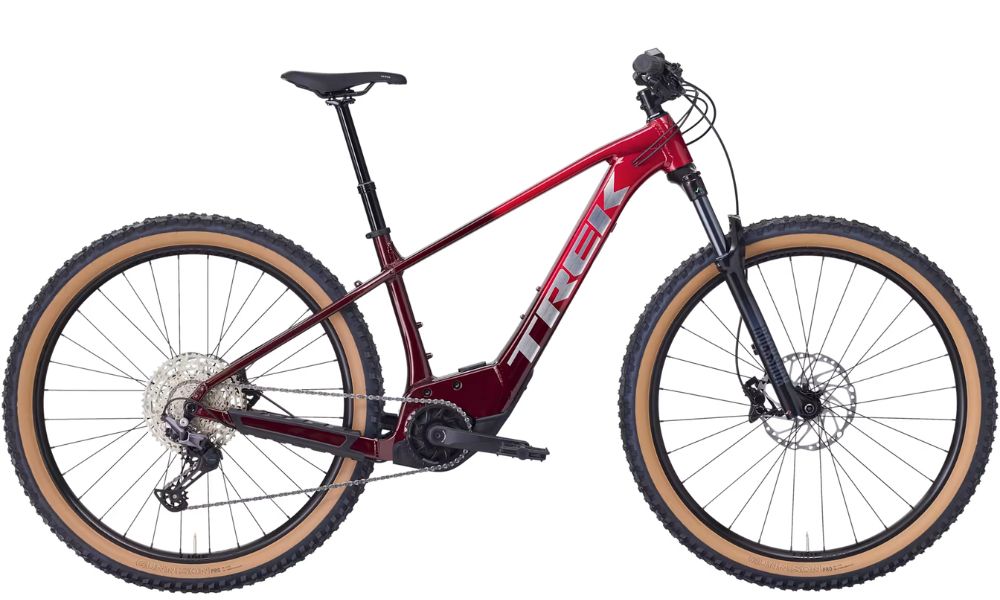

Trek 2026 Marlin+ 8
The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.
Trek 2026 Marlin+ 8
Frame
Size: S, M, L, XL

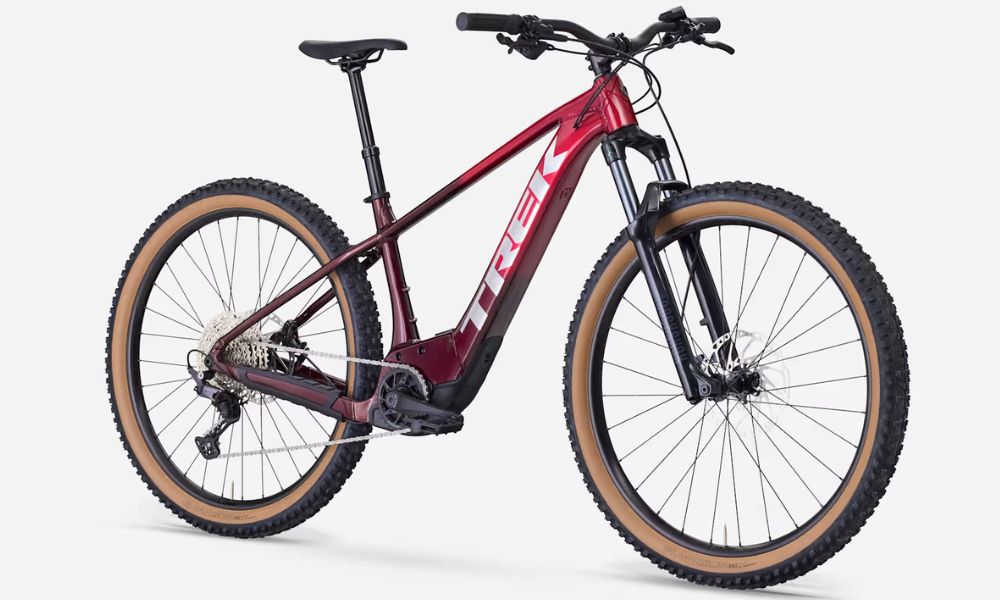

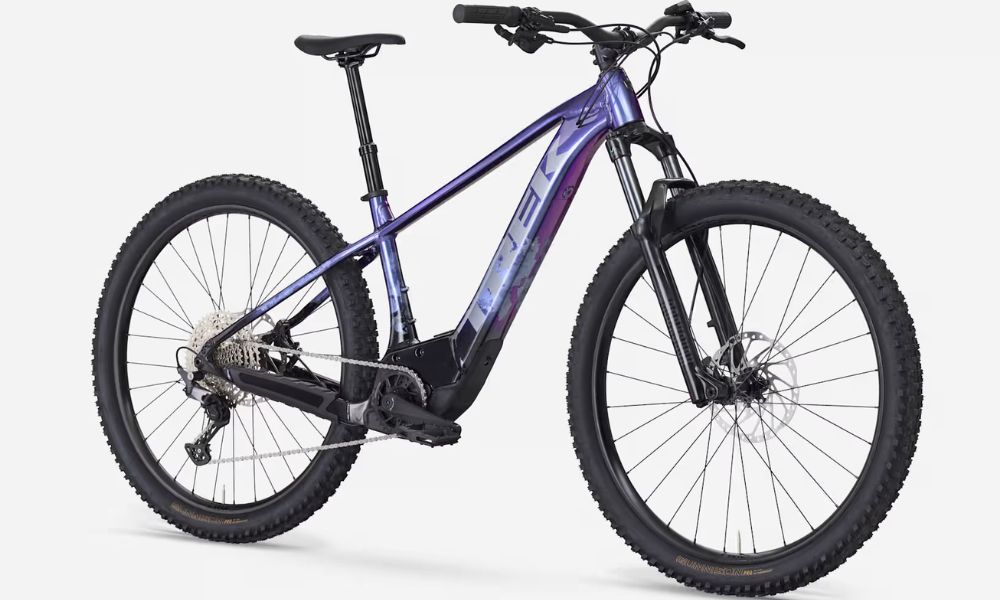

Colour: Purple Flip to Black Fade or Fury Red/Lithium Fade
Frame: XS - Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle S , M , L , XL - Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle

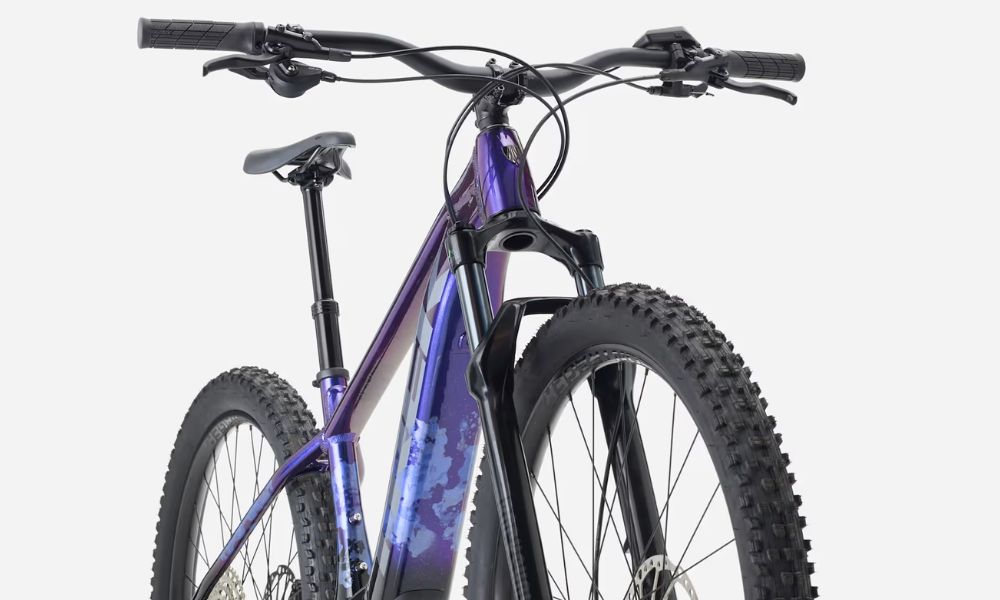

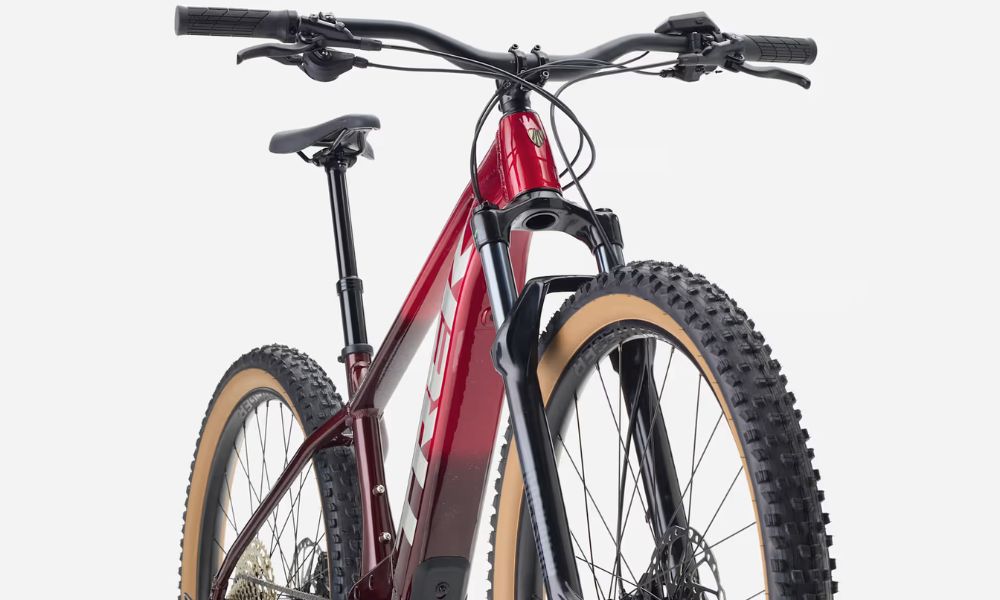

Fork: XS - RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel S - RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel M , L , XL - RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Shock:

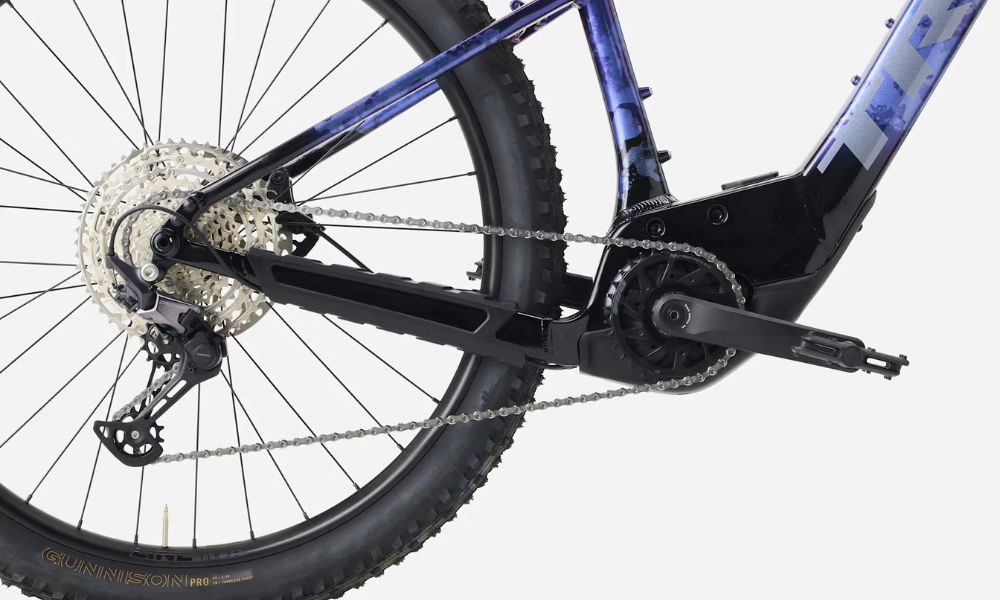

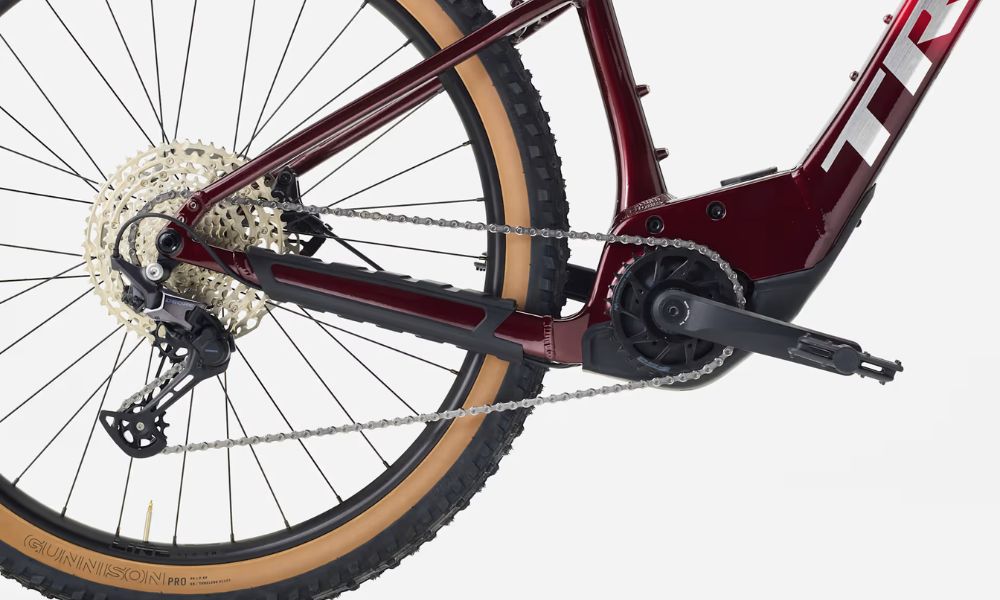

Drivetrain
Crankset: SFSA CK-220, 165 mm length
Pedals:
Chain: Shimano Deore M6100, 12-speed
Bottom Bracket:
Rear Derailleur: Shimano Deore M6100, long cage
Front Derailleur:
Derailleur Shifter: Shimano Deore M6100, 12-speed
Freewheel/Cassette: Shimano Deore M6100, 10-51, 12-speed
Braking System
Brakes: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake Levers:
Wheels
Tyres: XS , S - Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60" M, L, XL - 29x2.60"
Wheels/Rims: XS, S - Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve M, L, XL - Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Hubs: [F] Shimano TC500 alloy, CentreLock, 110x15 mm thru axle [R] Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Other

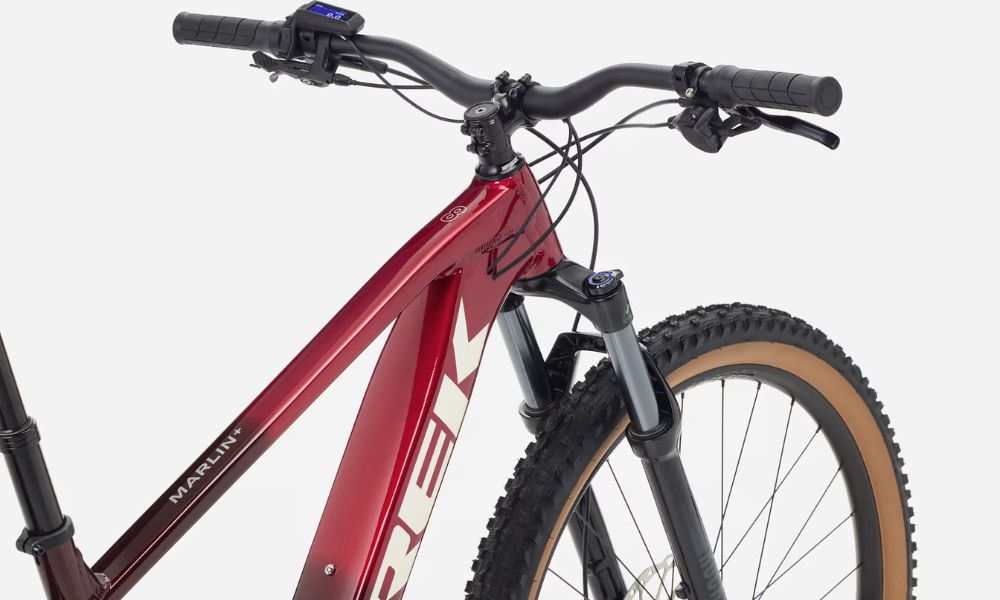

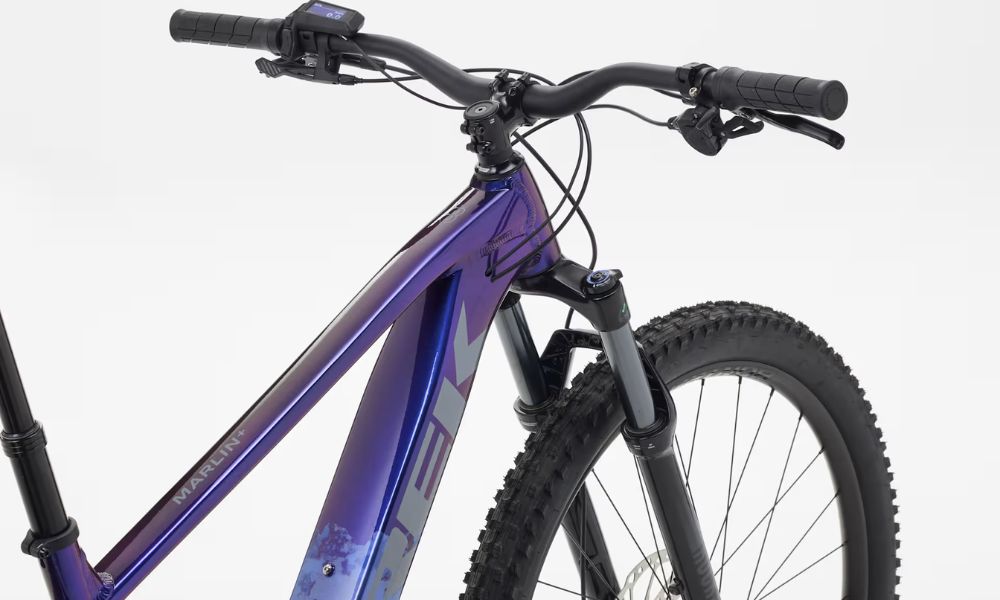

Handlebar: XS, S - Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width M, L, XL - Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Stem: XS, S - Bontrager Comp, 31.8 mm, 7-degree, 35 mm length M, L - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length XL - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Seat Post: XS, S - TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length M - 150mm travle 456mm length, L, XL - 170mm travel 500mm length
Saddle: Bontrager Verse P3, steel rails
E-Bike

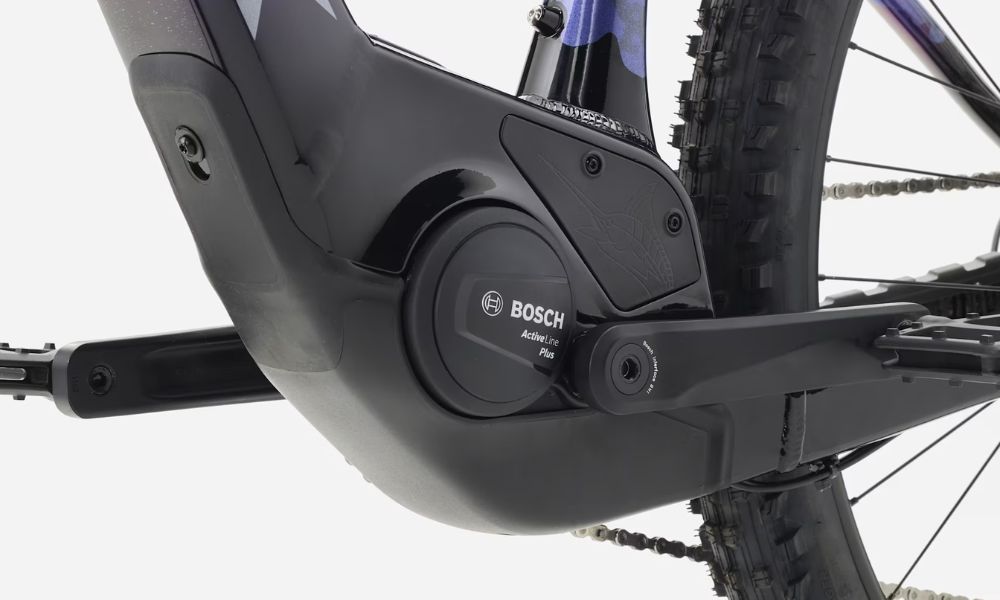

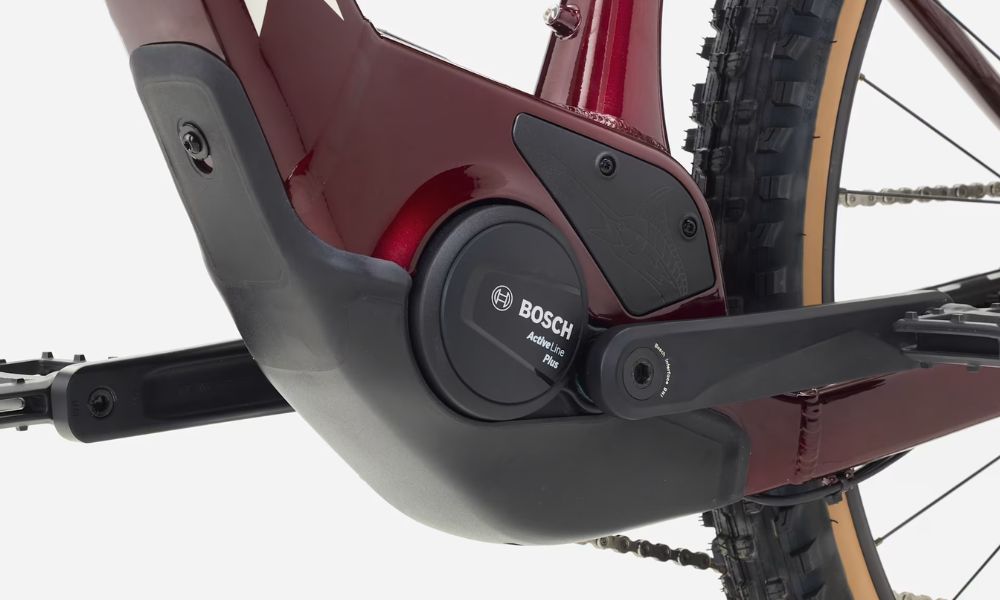

Drive Unit: Bosch Active Line Plus, 50 Nm
Battery: Bosch CompactTube 400Wh
UI/Remote:
Display: Bosch Purion 200
Trek 2026 Marlin+ 8
All measurements provided in cm unless otherwise stated.
| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 27.5" | 34.0 | 73.8° | 74.0° | 9.0 | 66.5° | 55.1 | 31.3 | 4.5 | 47.0 | 4.6 | 11.0 | 112.9 | 67.8 | 39.0 | 56.3 |
| S | 27.5" | 37.0 | 73.8° | 74.0° | 10.0 | 66.5° | 58.4 | 31.3 | 4.5 | 47.0 | 4.6 | 11.0 | 116.6 | 71.0 | 41.5 | 59.0 |
| M | 29" | 42.0 | 73.8° | 74.0° | 10.5 | 66.5° | 62.0 | 31.8 | 6.0 | 48.5 | 4.2 | 11.4 | 121.8 | 76.0 | 44.0 | 62.6 |
| L | 29" | 45.0 | 73.8° | 74.0° | 11.5 | 66.5° | 65.2 | 31.8 | 6.0 | 48.5 | 4.2 | 11.4 | 125.1 | 77.1 | 47.0 | 63.5 |
| XL | 29" | 50.0 | 73.8° | 74.0° | 13.5 | 66.5° | 68.2 | 31.8 | 6.0 | 48.5 | 4.2 | 11.4 | 128.4 | 77.5 | 49.5 | 65.3 |
