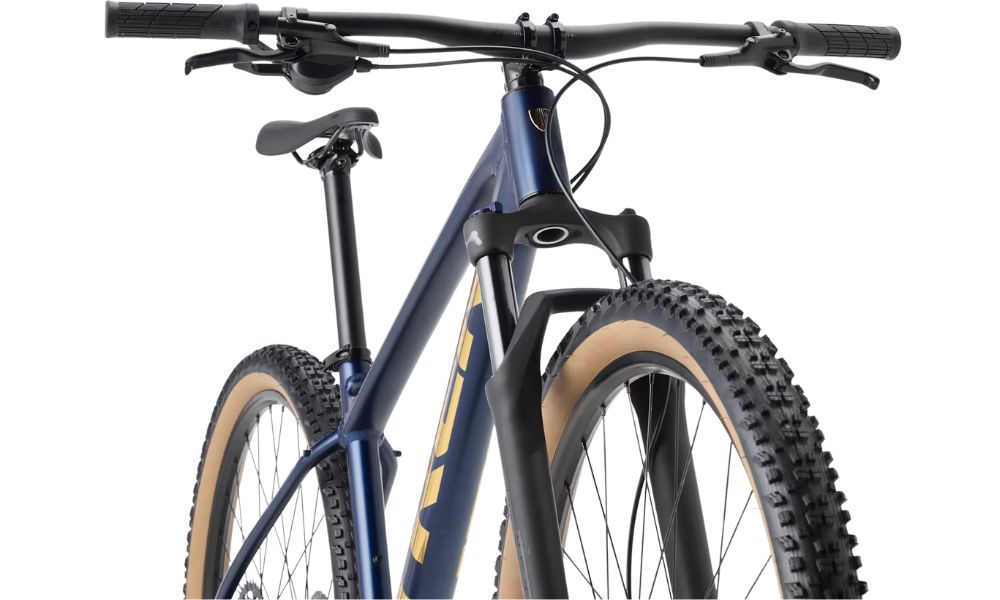

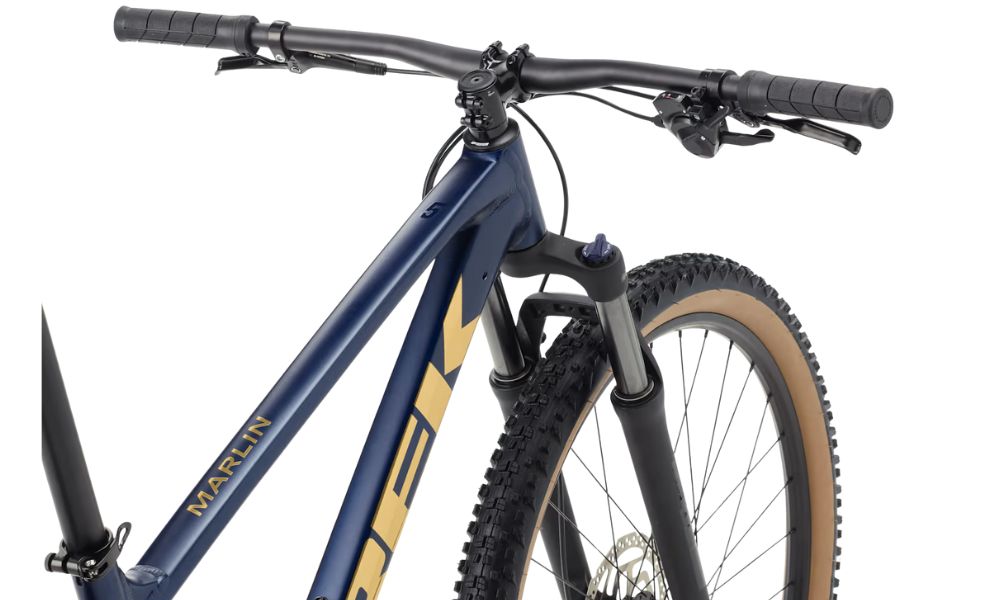

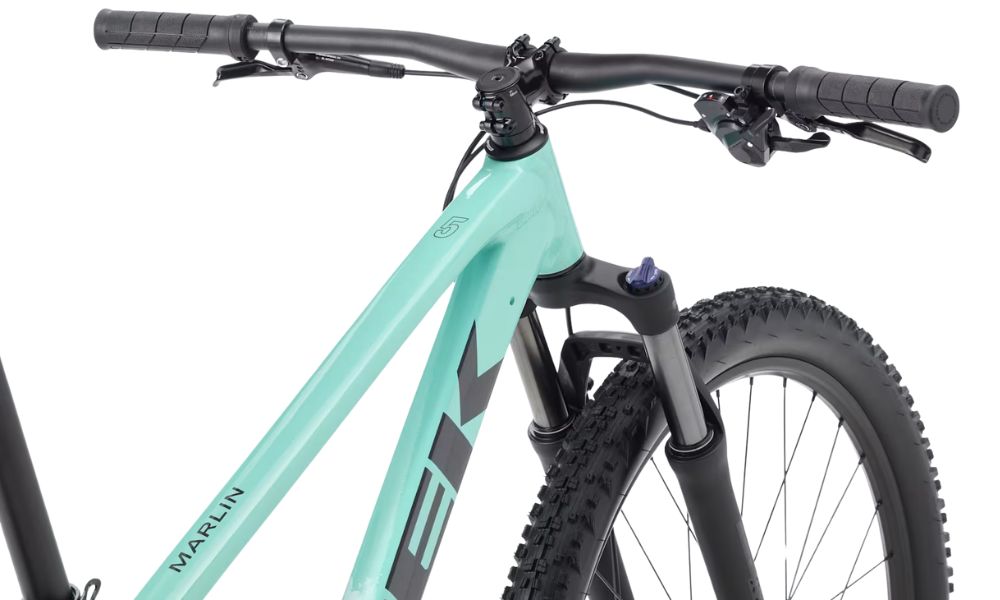

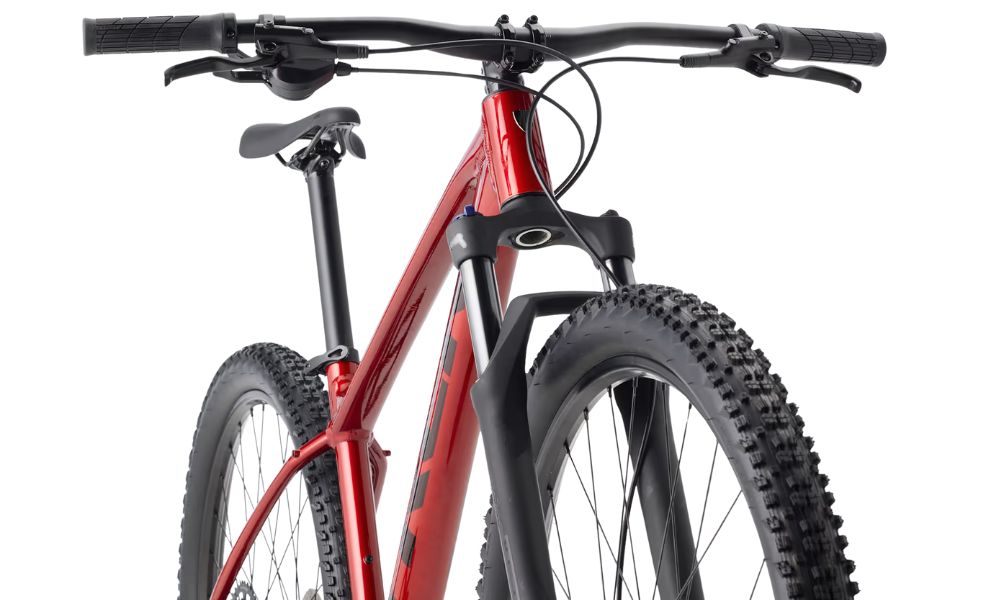

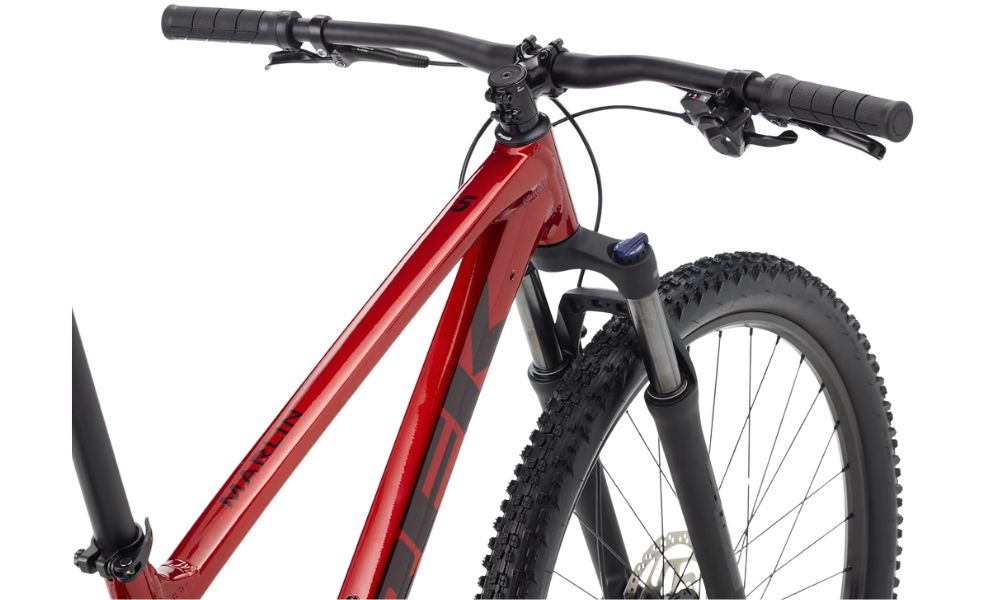

Trek 2026 Marlin 5 Gen 3
The world's favourite Trek
Zipping through town, dipping your toes into the trail for the first time or slicing through switchbacks, no matter where you roll, the Marlin is a confidence-inspiring hardtail that’s ready for anything. With versatile trail geometry and Smart Wheel Sizing, this hardtail MTB is built to tackle everything. There’s a good reason it’s the world’s favourite Trek.
Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Trek 2026 Marlin 5 Gen 3

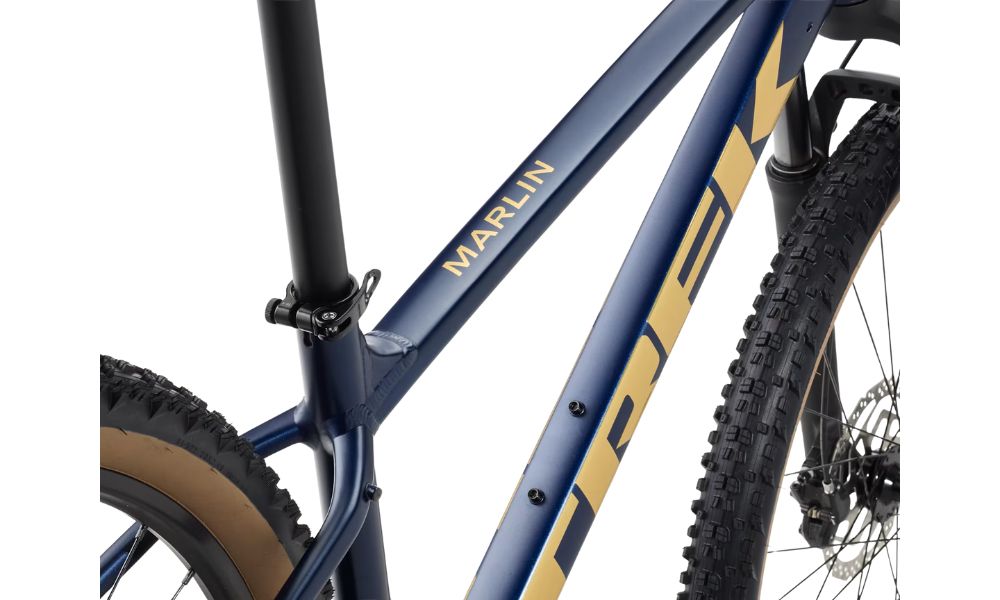

Frame
Size: XS, S, M, L, XL, XXL

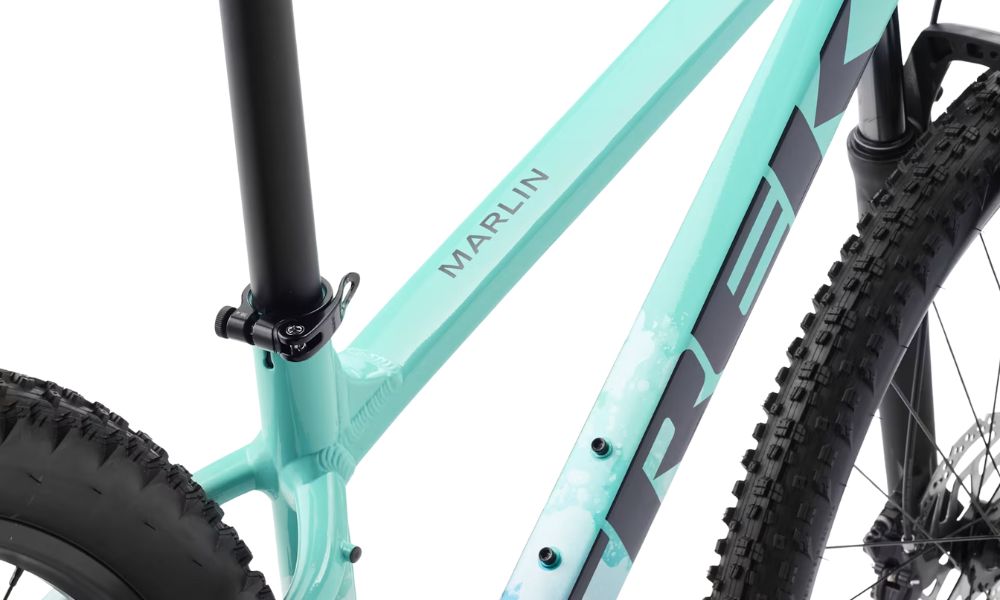

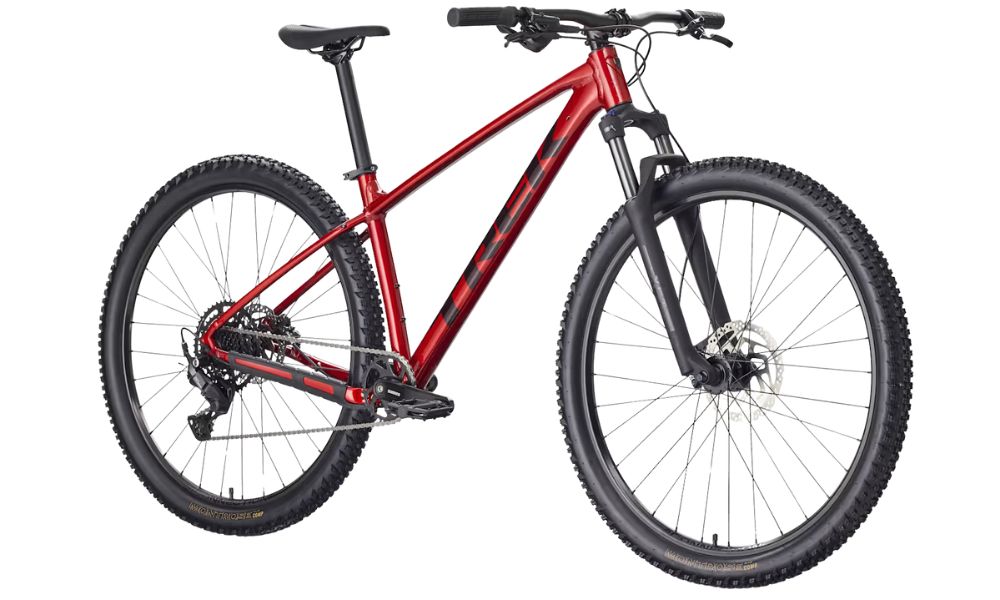

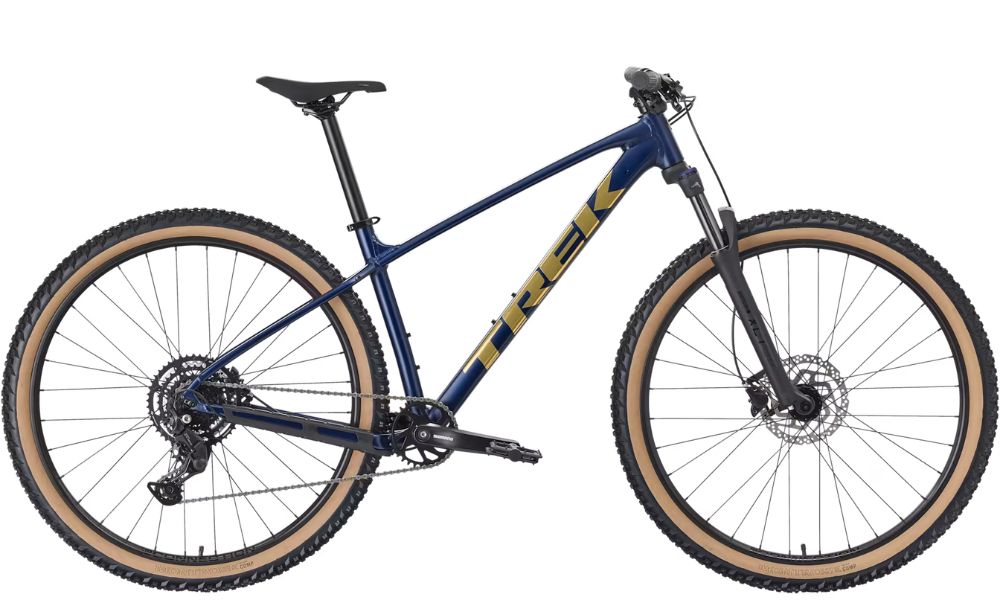

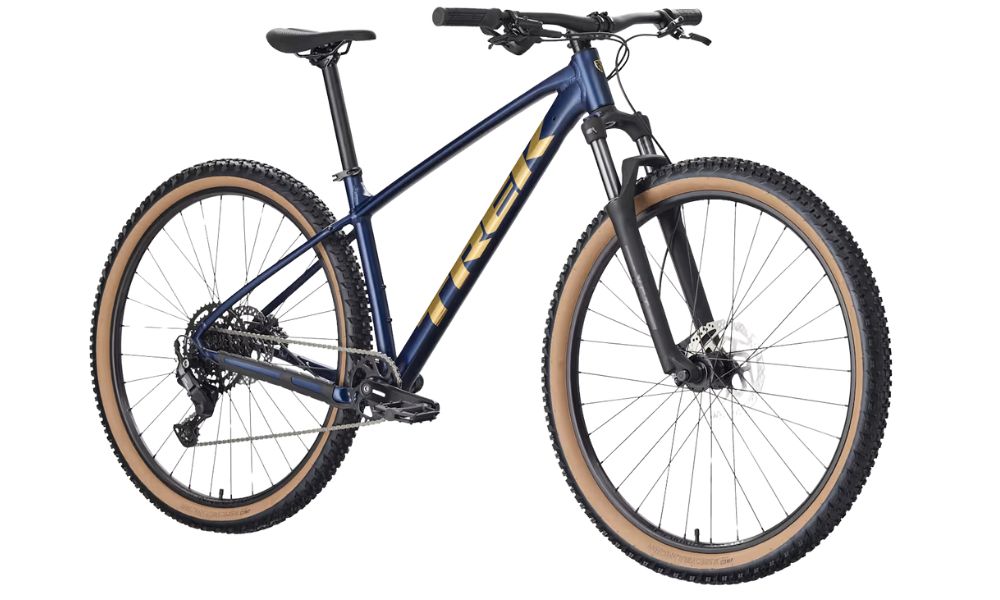

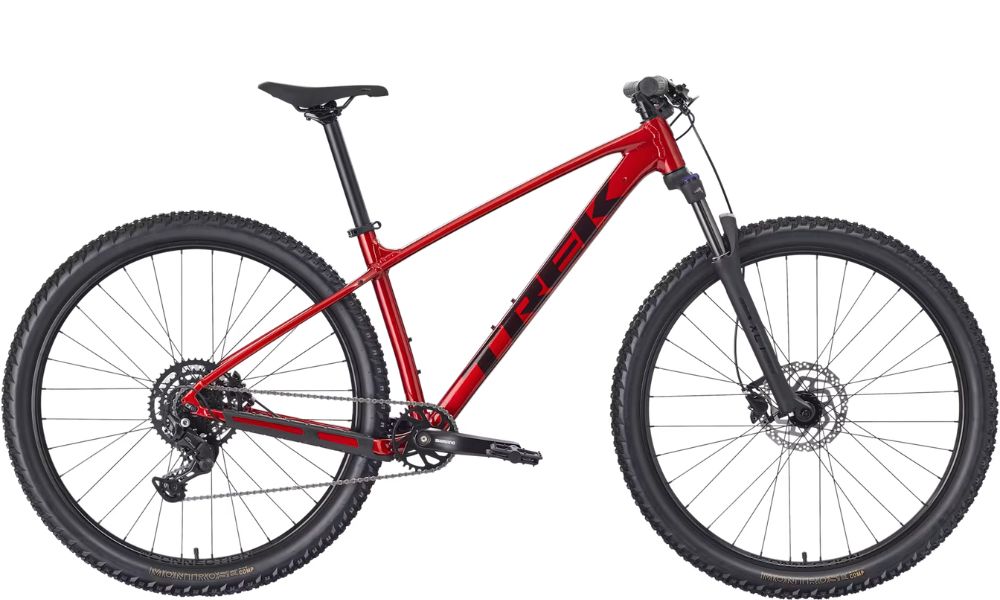

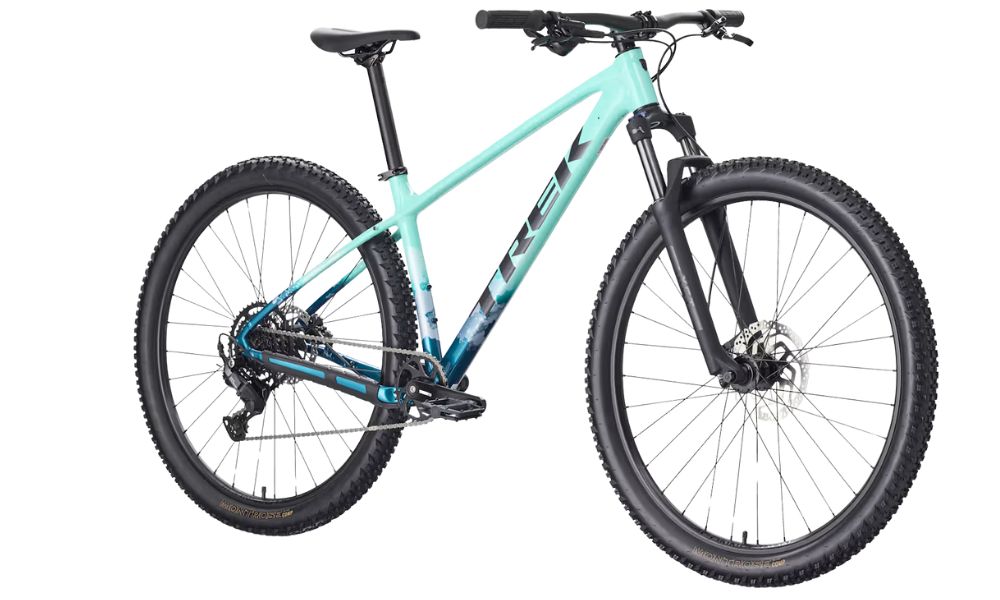

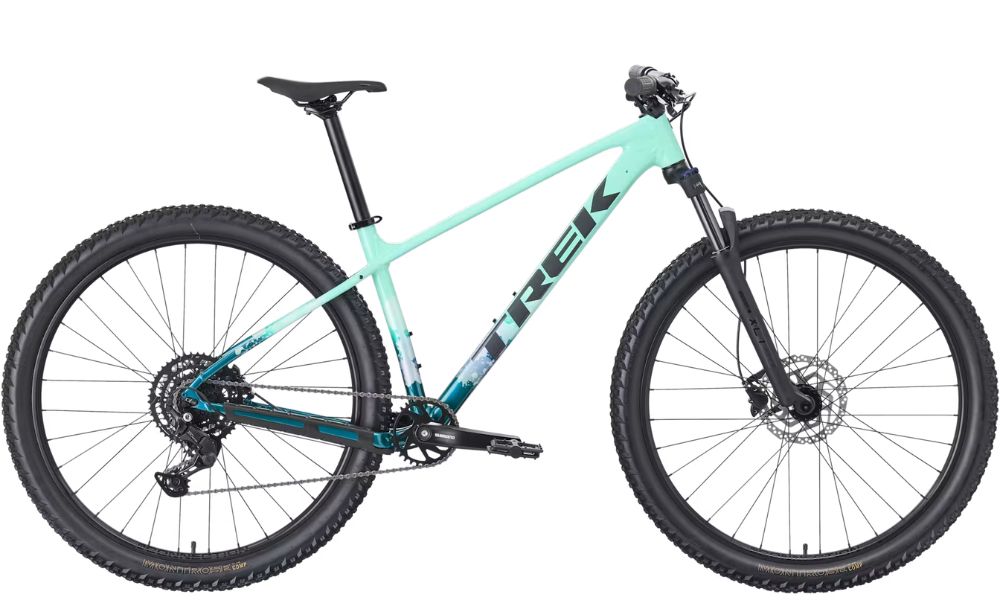

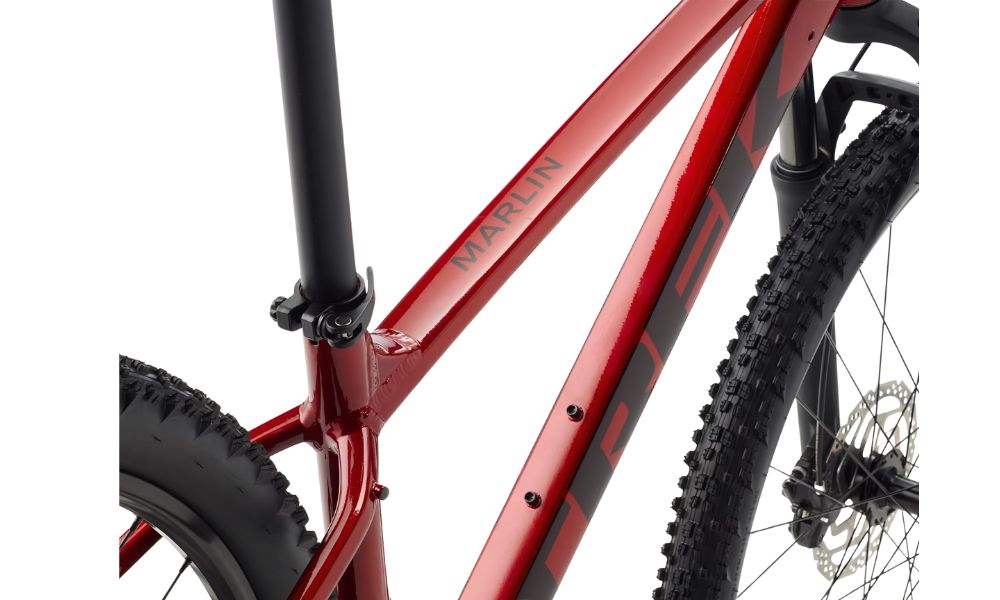

Colour: Muslanne Blue, Fury Red or Miami Green/Dark Aquatic Fade
Frame: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew, S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel - S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel - M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Shock:

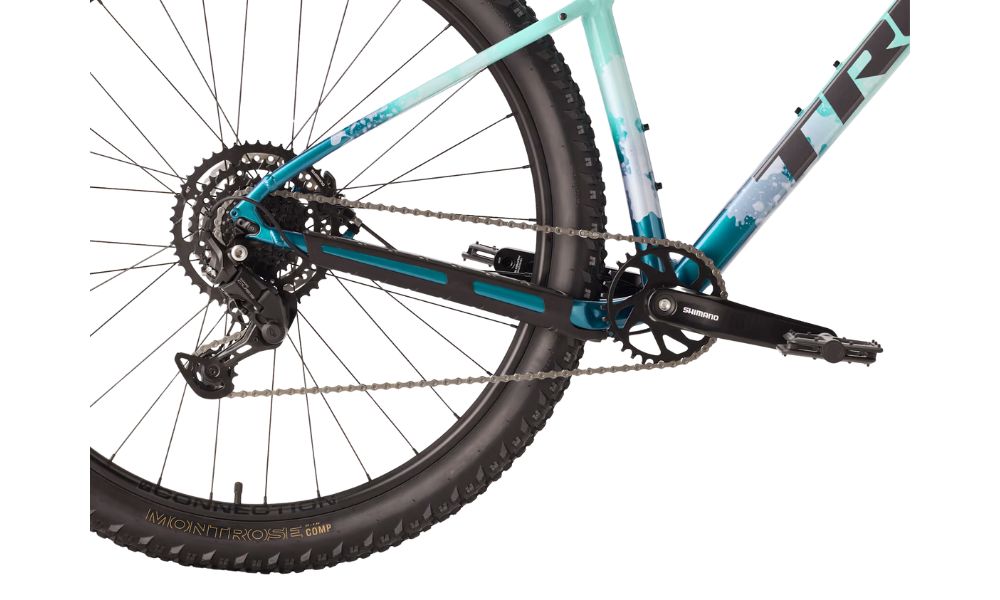

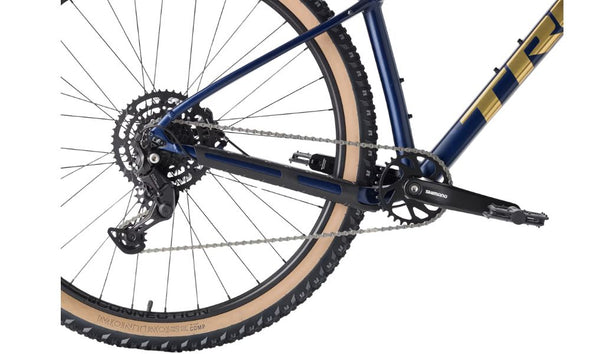

Drivetrain
Crankset: XS , S , M , ML Shimano CUES U4001, 32T, 52mm chain line, 170 mm length - L , XL , XXL 175mm length
Pedals:
Chain: Shimano LG500
Bottom Bracket: Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Rear Derailleur: Shimano CUES U4000
Front Derailleur:
Derailleur Shifter: Shimano U4000, 9-speed
Freewheel/Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
Braking System
Brakes: Shimano MT200 hydraulic disc
Brake Levers:
Wheels
Tyres:: XS, S Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40" - M, ML, L, XL, XXL 29x2.40"
Wheels/Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Hubs: [F] Formula DC-20, alloy, 6-bolt, 100x5 mm [R] Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Other
Handlebar: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width - S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width - M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Stem: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length - M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length - XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length - XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Seat Post: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length - ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Saddle: Bontrager Verse Short, stainless steel rails
Trek 2026 Marlin 5 Gen 3
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5" | XS | 27.5" | 34.0 | 73.8° | 74.0° | 9.0 | 66.5° | 55.1 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 109.2 | 65.8 | 39.0 | 56.3 |
| 15.5" | S | 27.5" | 37.0 | 73.8° | 74.0° | 10.0 | 66.5° | 57.9 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 112.1 | 69.2 | 41.5 | 57.2 |
| 17.5" | M | 29" | 41.9 | 71.9° | 73.0° | 9.0 | 69.5° | 60.2 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 110.0 | 74.8 | 41.8 | 60.2 |
| 18.5" | ML | 29" | 44.4 | 71.9° | 73.0° | 9.0 | 69.5° | 61.8 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 111.6 | 75.8 | 43.4 | 60.2 |
| 19.5" | L | 29" | 47.0 | 71.9° | 73.0° | 10.0 | 69.5° | 63.8 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 113.7 | 75.7 | 45.1 | 61.1 |
| 21.5" | XL | 29" | 52.1 | 71.9° | 73.0° | 12.0 | 69.5° | 65.9 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 115.9 | 76.9 | 46.6 | 63.0 |
| 23" | XXL | 29" | 55.9 | 71.9° | 73.0° | 12.0 | 69.5° | 67.3 | 31.1 | 5.8 | 43.8 | 4.2 | 9.3 | 117.3 | 80.4 | 48.0 | 63.0 |
