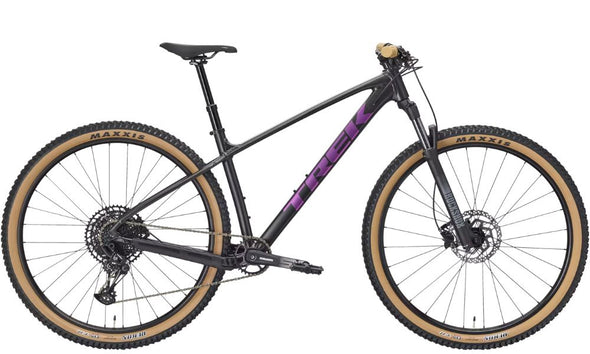

Trek 2026 Marlin 7 Gen 3
The Marlin 7 is your best friend on the trail and wherever else you roll thanks to its confidence-boosting trail geometry. It finds the perfect balance between price and performance with a RockShox suspension fork that makes quick work of rocks and bumps in your path, and loads of gears from the SRAM NX Eagle 12-speed drivetrain.
Trek 2026 Marlin 7 Gen 3
Frame
Size: 27.5 - S, M 29 - ML, L, XL

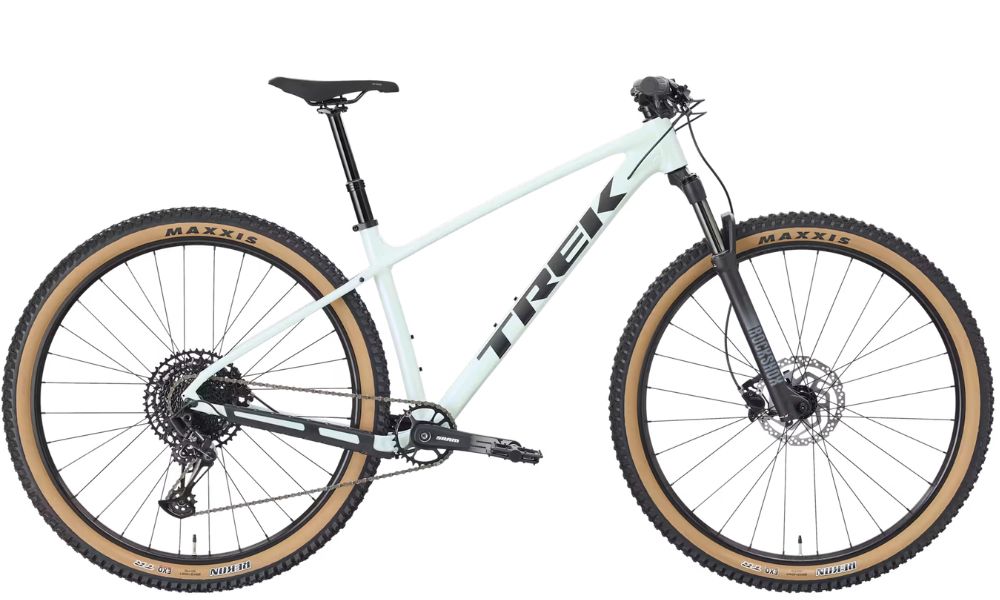

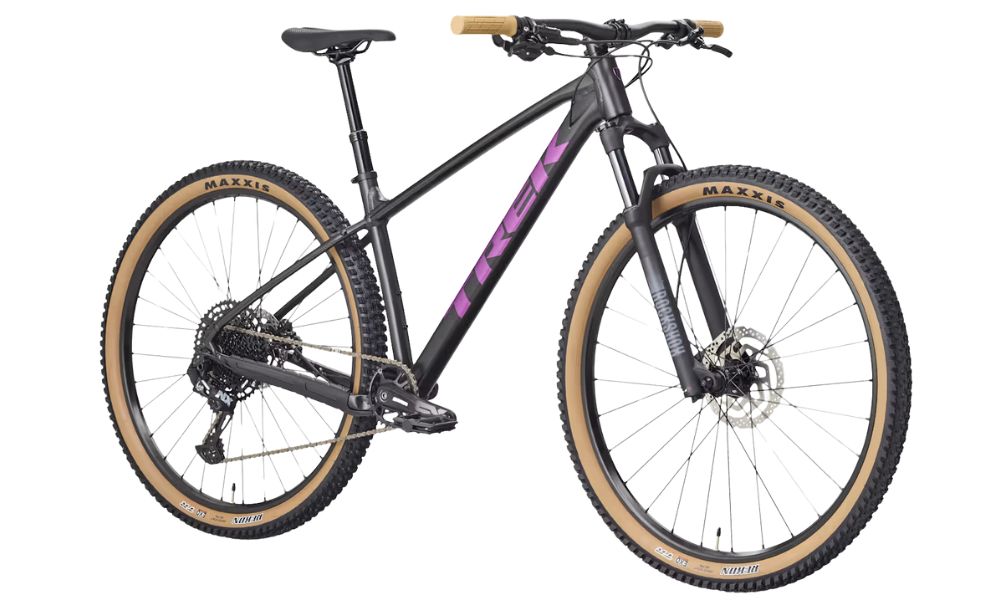

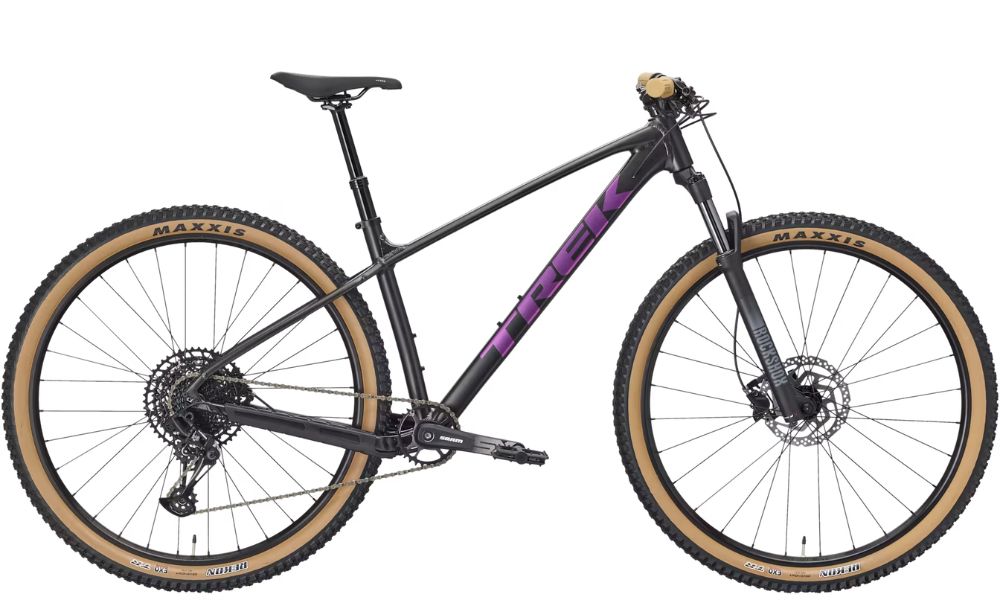

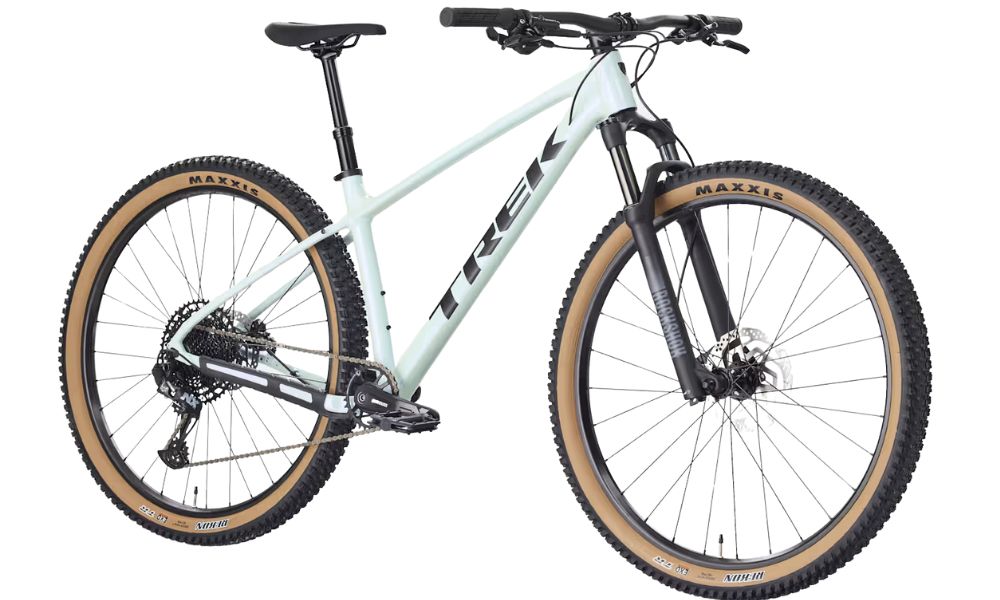

Colour: Matte Dark Web/Clear Gloss or Magic Mint

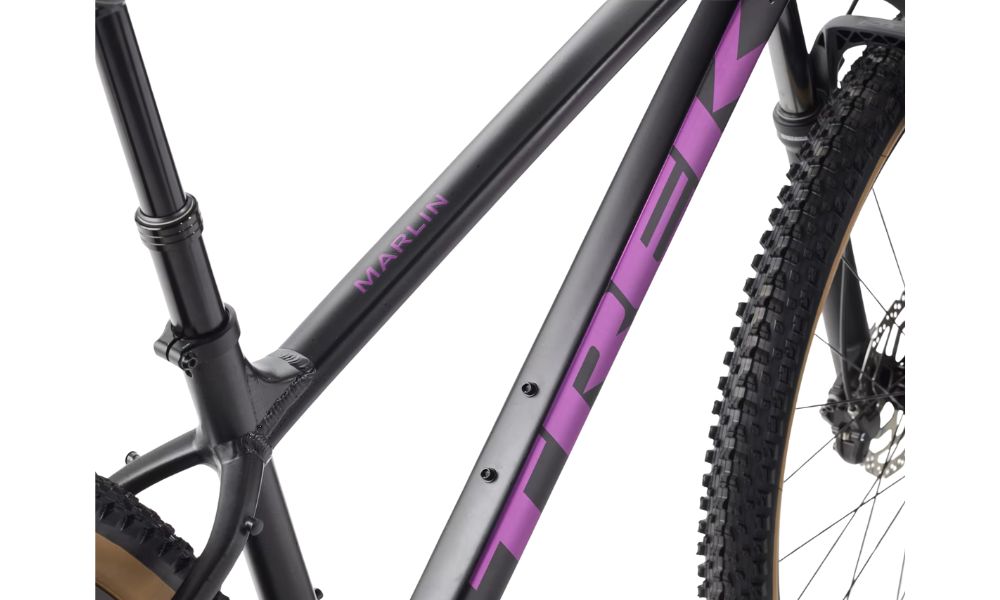

Frame: XS: Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew S, M, ML, L, XL: Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork: XS, S: RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel M, ML, L, XL: RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Shock:

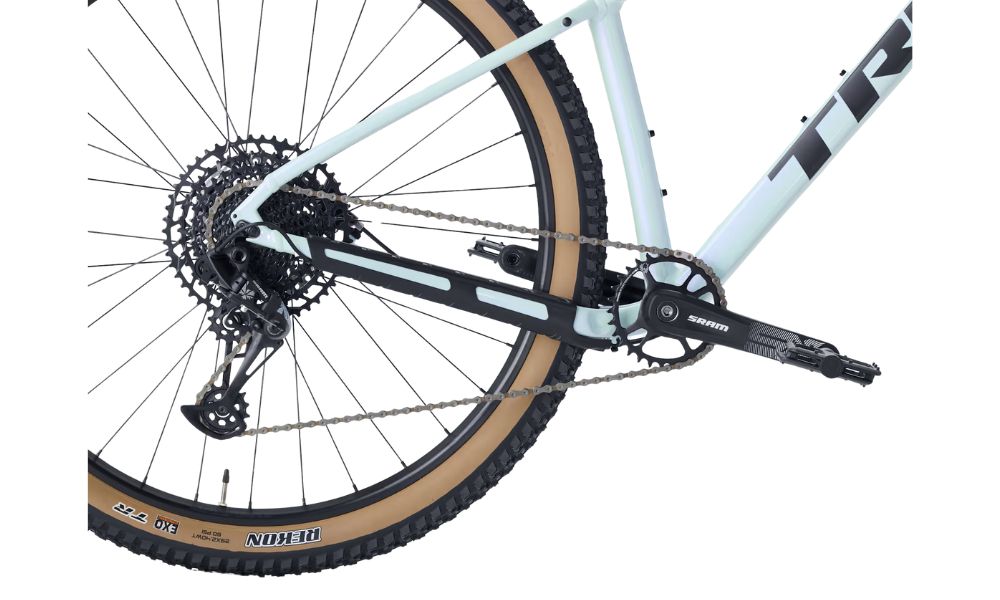

Drivetrain

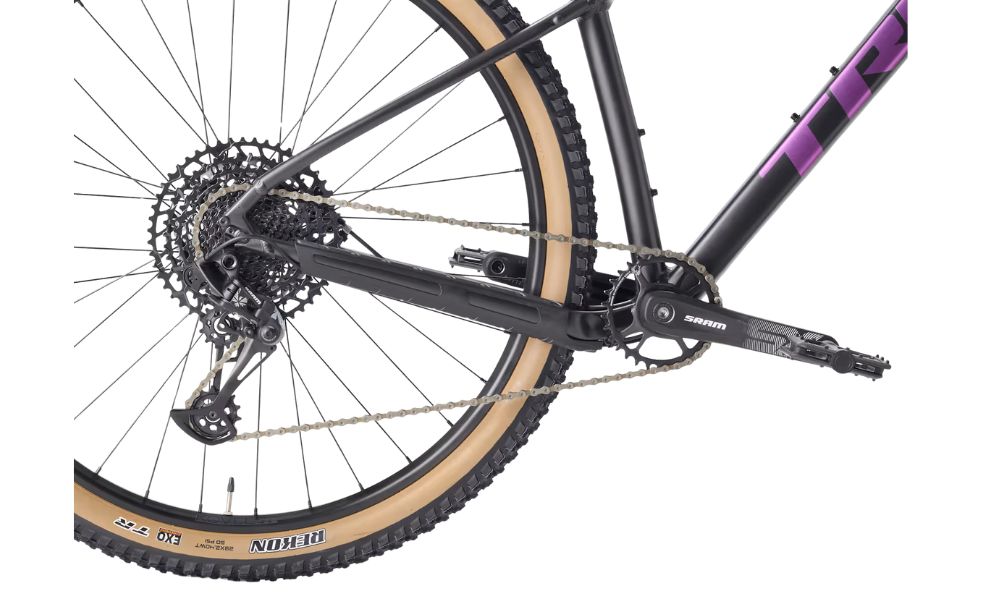

Crankset: SRAM SX Eagle, 30T steel ring, 49 mm chainline
Pedals:
Chain: SRAM SX Eagle, 12-speed
Bottom Bracket: Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Rear Derailleur: SRAM NX Eagle, 12-speed
Front Derailleur:
Derailleur Shifter: SRAM SX Eagle, 12-speed
Freewheel/Cassette: SRAM PG-1210 Eagle, 11-50, 12-speed
Braking System
Brakes: Shimano MT200 hydraulic disc
Brake Levers:
Wheels
Tyres: XS, S: Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.40'' M, ML, L, XL: Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40''
Wheels/Rims: Bontrager Kovee, double-wall, Tubeless-Ready,
Hubs:
Other

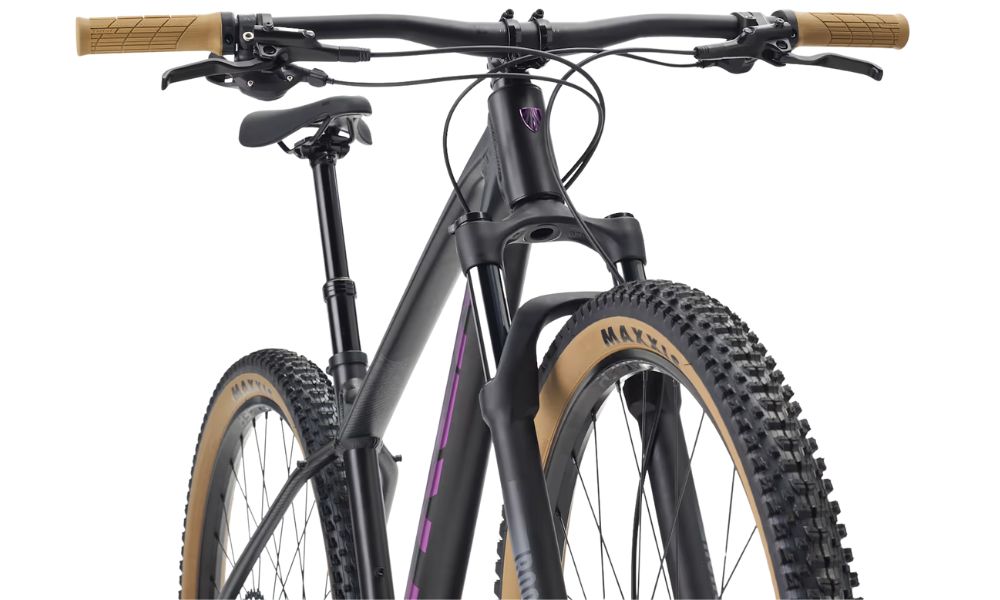

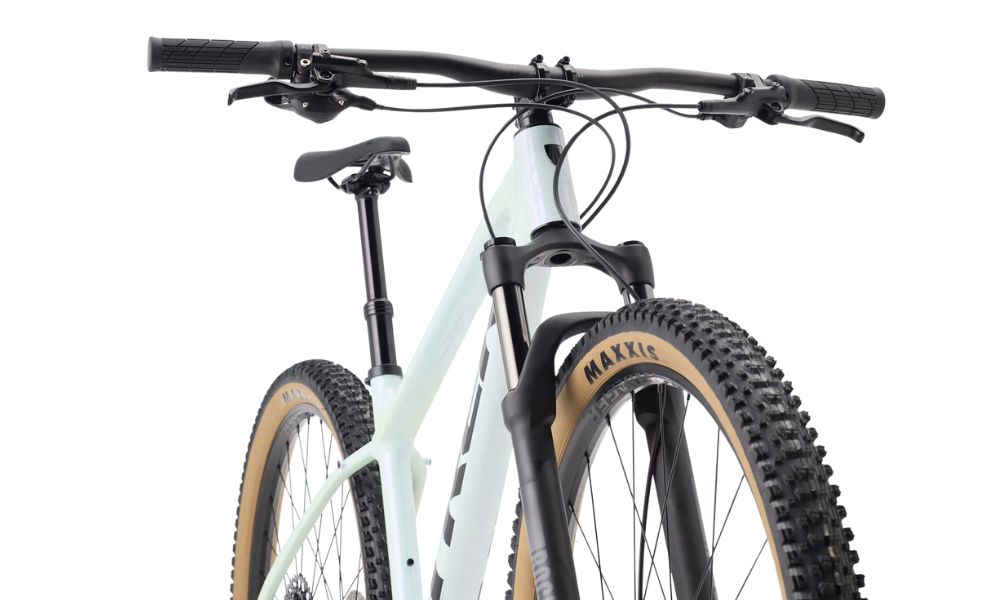

Handlebar: Bontrager alloy, 31.8 mm, XS: 690 mm wide, 5mm Rise S: 720mm Wide, 15mm Rise M, ML, L, XL: 750mm Wide, 15mm rise
Stem: XS, S: Bontrager Comp, 31.8 mm, 7-degree, 35 mm length M, ML, L, XL: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Seat Post: XS, S: TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length M: 125mm Travel, 405mm Length ML, L: 150mm Travel, 456mm Length XL: 170mm travel, 500mm Length
Saddle: Bontrager Verse Short, stainless steel rails
Trek 2026 Marlin 7 Gen 3
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5" | XS | 27.5" | 34.0 | 73.8° | 74.0° | 9.0 | 66.5° | 55.1 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 109.2 | 65.8 | 39.0 | 56.3 |
| 15.5" | S | 27.5" | 37.0 | 73.8° | 74.0° | 10.0 | 66.5° | 57.9 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 112.1 | 69.2 | 41.5 | 57.2 |
| 17.5" | M | 29" | 41.9 | 71.9° | 73.0° | 9.0 | 69.5° | 60.2 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 110.0 | 74.8 | 41.8 | 60.2 |
| 18.5" | ML | 29" | 44.4 | 71.9° | 73.0° | 9.0 | 69.5° | 61.8 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 111.6 | 75.8 | 43.4 | 60.2 |
| 19.5" | L | 29" | 47.0 | 71.9° | 73.0° | 10.0 | 69.5° | 63.8 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 113.7 | 75.7 | 45.1 | 61.1 |
| 21.5" | XL | 29" | 52.1 | 71.9° | 73.0° | 12.0 | 69.5° | 65.9 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 115.9 | 76.9 | 46.6 | 63.0 |
